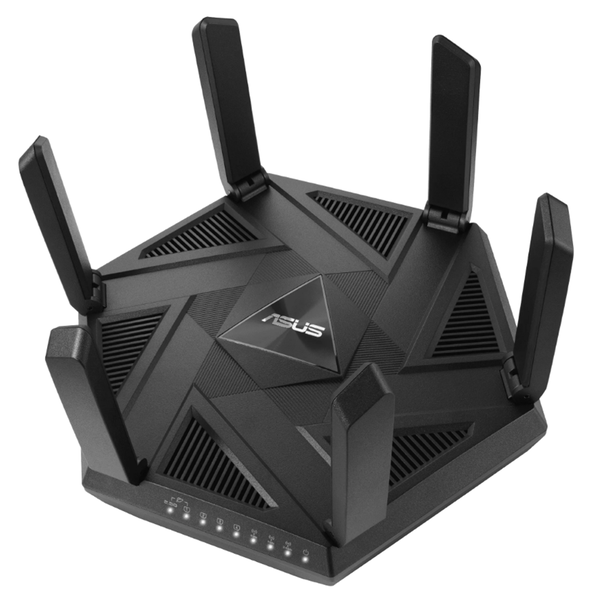

ASUS RT-AXE7800 Tri-band AX WiFi 6E Extendable Router
Low Latency & Less Interference
The newly available 6 GHz frequency band is dedicated purely to WiFi 6E devices. This means that older WiFi devices can’t interfere with 6E signals at all, enabling faster and more reliable connections for your 6E devices.
WiFi 6E has up to seven additional high-speed 160 MHz channels*, enabling multi-gigabit speeds with stable and consistent connections. It dramatically increases network capacity while reducing congestion, delivering higher performance for every WiFi 6E device.
As the new 6 GHz band is exclusively reserved for WiFi 6E devices, there’s no need for Dynamic Frequency Selection (DFS), which prevents interference with things like air traffic control radar systems. This means that devices can connect quicker without the delays imposed by DFS.
One-Tap Safe Browsing
In just a single tap, ASUS Safe Browsing helps you block malicious content, annoying ads, or explicit content to protect your family.pause
The internet can contain inappropriate content, intrusive ads or other dangers and safety risks. ASUS Safe Browsing helps block undesirable content in one tap -- no extra apps required. Its lightweight DNS-based filtering* won’t affect router performance. It can even filter explicit content from search engine results to protect your kids online.
Complete Security for Your Home Network
Alongside the latest WPA3 security protocol, the ASUS RT-AXE7800 also features AiProtection Pro powered by Trend Micro™, with automatic, regularly updated security signatures to protect your devices and personal data from internet threats.
Parental Controls at Your Finger Tips
Gain insight into your kids’ online activity and customize settings for different age groups with RT-AXE7800’s robust parental controls – with no subscription fee. You can also flexibly schedule internet access with one click, or you can grant extra online time for your kids to reward their good behavior.
Make Free WiFi Secure with Instant Guard
When you are away from home, the ASUS Instant Guard mobile app gives you one-tap secure internet access via your RT-AXE7800 router*, thanks to its encrypted VPN tunneling technology. Our newly upgraded app even lets you easily share this worry-free network connection with your family and friends through a URL link.
Simple but Complete Functions
The easy-to-use ASUS Router mobile app offers simple setup and management for your RT-AXE7800 router. There’s even more for you to explore with upgraded features including complete VPN settings, new parental control time scheduling, visualized connection diagnostics, and more.
If you want to take advantage of the advanced capabilities of the RT-AXE7800, its powerful web interface gives you access to at-a-glance status reports and in-depth settings via a handy dashboard. You can use it to monitor web traffic, set up your router's QoS settings, manage ports, configure security features, and much more.
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
WiFi 6E (802.11ax)
AXE7800 ultimate AX performance : 574+4804+2402 Mbps
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) : up to 500 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 2167 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps
WiFi 6E (802.11ax) (6GHz) : up to 2402 Mbps
External antenna x 6 (non-detachable)
1.7GHz quad-core processor
256 MB Flash and 512 MB DDR4 RAM
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
Tri-band Wi-Fi: 2.4 GHz / 5 GHz / 6 GHz
1 x 2.5G Mbps for WAN/LAN
1 x RJ45 10/100/1000Mbps for WAN/LAN
3 x RJ45 10/100/1000Mbps for LAN
1 x USB 3.2 Gen 1 Port
Power on/off switch
Power x 1
2.4GHz x 1
5GHz x 1
6HGz x 1
2.5G WAN/LAN1 x 1
1G WAN/LAN1 x 1
1G LAN x 3
AC Input : 110V~240V(50~60Hz)
DC Output: 12 V with max. 3.0 A current
RT-AXE7800 WiFi Router
Quick Start Guide
Product Weight (g)
Primary AiMesh router
ASUS Router APP
Support Alexa skill
Malicious site blocking
Infected Device Prevention and Blocking
Parental Control Customized Internet schedule
Maximum Parental Control profile : 64
Maximum Parental Control content filter rule : 64
Maximum Bandwidth limiter rule : 32
Maximum Traditional QoS rule : 32
Real-time traffic monitor
Wired Traffic Monitor
Wireless Traffic Monitor
Traffic analysis period : Daily, Weekly, Monthly
Wi-Fi Encryption : WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
Maximum Guest Network rule : 2.4 GHz x 3, 5 GHz-1 x 3, 6 GHz x 3
Guest Network Connection time limit
Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal, WPS
WiFi MAC address filter
Maximum MAC filters : 64
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
3G/4G LTE dongle
Maximum port forwarding rule : 64
Maximum port triggering rule : 32
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Passthrough, PPPoE relay
LAN Link Aggregation
Manually assign IP address
Maximum manually assign IP address rule : 64
VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP
VPN Server WireGuard
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
3G/4G LTE dongle
Safely Remove disk
Shared Folder privileges
Operating mode : Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge
Operating system : ASUSWRT
Free OS upgrade
Maximum Firewall keyword filter : 64
Maximum Firewall network service filter : 32
Maximum Firewall URL filter : 64
Wake on LAN (WOL)
Configuration backup and restore
New Device Connect Notification
Auto Firmware Update
