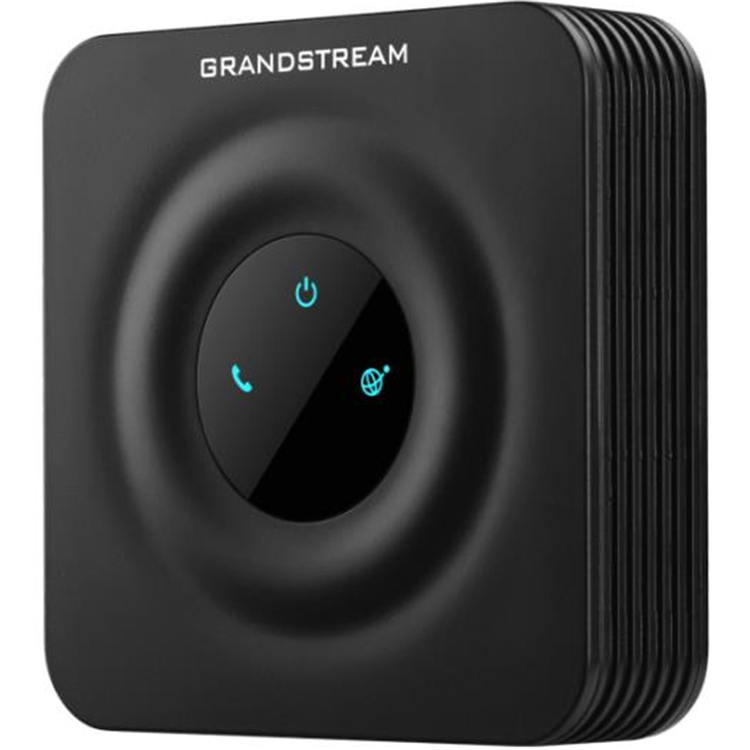

Grandstream HT801 Single Port FXS Analog (ATA) Telephone Adapter
The HT801 delivers powerful VoIP technology and routing capabilities to home and office environments, and allows users to successfully connect their analog devices to a manageable and powerful VoIP network. Built upon Grandstream's market-leading SIP ATA/gateway technology, with millions of units successfully deployed worldwide, this powerful ATA features exceptional voice quality in various applications and environments. The HT801 comes with 1 easy-to-use FXS ports, state-of-the-art encryption with a unique security certificate per unit, automated provisioning for volume deployment and device management and outstanding network performance.
Features
- Supports 1 SIP profile through a single FXS port and a single 10/100Mbps port
- TLS and SRTP security encryption technology to protect calls and accounts
- Automated provisioning options include TR-069 and XML config files
- Supports 3-way voice conferencing
- Failover SIP server automatically switches to secondary server if main server loses connection
- Supports T.38 Fax for creating Fax-over-IP
- Supports a wide range of caller ID formats
- Use with Grandstream's UCM series of IP PBXs for Zero Configuration provisioning
- Supports advanced telephony features, including call transfer, call forward, call-waiting, do not disturb, message waiting indication, multilanguage prompts, flexible dial plan and more
Interfaces
Telephone Interfaces
One (1) FXS port
Network Interfaces
One (1) 10/100Mbps auto-sensing ethernet port (RJ45)
LED Indicators
POWER, INTERNET, PHONE
Factory Reset Button
Yes
Voice, Fax, Modem
Telephony Features
Caller ID display or block, call waiting, flash, blind or attended transfer, forward, hold, do not disturb, 3-way conference
Voice Codecs
G.711 with Annex I (PLC) and Annex II (VAD/CNG), G.723.1, G.729A/B, G.726, iLBC, OPUS, dynamic jitter buffer, advanced line echo cancellation
Fax Over IP
T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax
Pass-through
Short/Long Haul Ring Load 2 REN: Up to 1km on 24 AWG
Caller ID
Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID
Disconnect Methods
Busy Tone, Polarity Reversal/Wink, Loop Current
Signaling
Network Protocols
TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP,
TELNET, STUN, SIP (RFC3261), SIP over TCP/TLS, SRTP, TR-069
QoS
Layer 3 (ToS, DiffServ, MPLS)
DTMF Method
In-audio, RFC2833 and/or SIP INFO
Provisioning and Control
HTTP, HTTPS, TELNET, TFTP, TR-069, secure and automated provisioning using AES encryption, syslog
Security
Media
SRTP
Control
TLS/SIPS/HTTPS
Management
Syslog support, telnet, remote management using web browser
Physical
Universal Power Supply Input:
100-240VAC, 50-60Hz
Output:
5.0VDC/1.0A
Environmental
Operational:
2º – 104ºF or 0º – 40ºC
Storage:
14º – 140ºF or -10º – 60ºC
Humidity:
10 – 90% Non-condensing
Dimension and Weight
Dimensions:
100mm x 100mm x 29.5mm
Weight:
102 g
