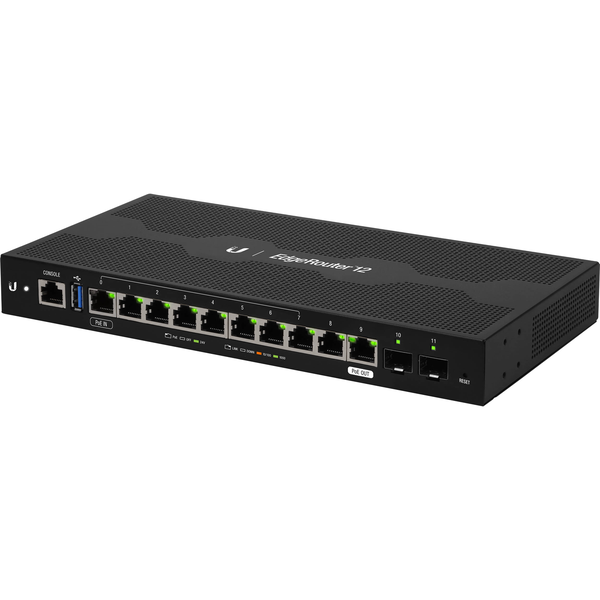

Ubiquiti EdgeRouter ER-12 10-Port Gigabit Router with PoE
The EdgeRouter 12 offers next-generation price/performance value: up to 3.4 million packets per second processing with a line rate of up to 6.8 Gbps. Ten Copper Gigabit ports and two independent SFP ports allows for deployment flexibility. The EdgeRouter 12 supports Layer-2 switching.
The EdgeRouter 12 can be rack-mounted with the use of the EdgeRouter Rack Mount Kit, model ER-RMKIT
The EdgeRouter 12 is supported and managed by UNMS (Ubiquiti Network Management System), a comprehensive controller with an intuitive UI. A single control plane manages registered EdgeMAX® devices across multiple sites.
1 x RJ45 Serial Console Port
10 x 10/100/1000 Mb/s RJ45 Ethernet Ports
2 x 1 Gb/s SFP Ports
1 x USB 3.0/3.1 Gen 1 Port (Reserved for Future Use)
1 GB DDR3 RAM
On-Board Flash Storage
4 GB eMMC
8 MB SPI NOR
Layer 3 Routing
64-Byte Packet Forwarding Rate: 3,400,000 pps
1518-Byte or Larger Packet Forwarding Rate: 6.8 Gb/s (Line Rate)
Layer 2 Switching
Data Ports: Speed/Link/Activity, PoE (Ports 0 and 9 only)
SFP Data Port: Link/Activity
PoE In (Port 0): 24 V Passive PoE Port, 2-Pair (4, 5+; 7, 8-)
PoE Out (Port 9): 24 V Passive PoE Port, 2-Pair (4, 5+; 7, 8-)
Maximum Passive PoE Watts per Port
20 W (24 V, 0.83 A)
Software & Features
IP in IP
Static IPv4/IPv6 Addressing
BGP (with IPv6 Support)
Application Identification with Deep Packet Inspection (DPI)
IPSec Site-to-Site and Remote Access
OpenVPN Site-to-Site and Remote Access
PPTP Remote Access
L2TP Remote Access
Quality of Service (QoS)
Stochastic Fairness Queueing
Random Early Detection
Token Bucket Filter
Deficit Round Robin
Hierarchical Token Bucket
Ubiquiti Network Management System (UNMS)
CLI (GUI, Console, SSH, Telnet)
UBNT Discovery Protocol
External AC Power Adapter, 24 W (24 V, 1 A) (Included)
24 V Passive PoE
Power Consumption (max)
200 W (Excludes PoE Output)
110-240 VAC, 50/60 Hz (AC)
20-30 V (24 V Passive PoE)
Material of Construction
14-122°F / -10-50°C
CE, FCC, IC
10.55 x 5.37 x 1.22" / 268.1 x 136.5 x 31.1 mm
1.54 lb / 700 g
