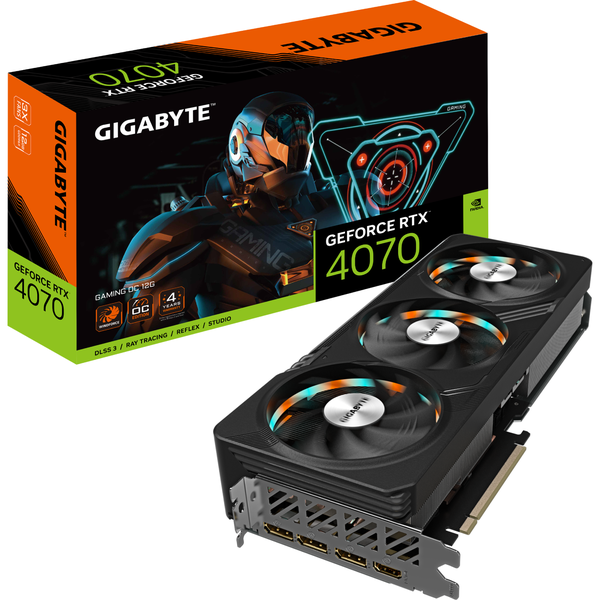

Gigabyte NVIDIA GeForce RTX 4070 Gaming OC 12GB GDDR6X Graphics Card
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 90mm unique blade fans, alternate spinning, 8 composite copper heat pipes, a copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
Unique Blade fan
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
3D Active Fan
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
Graphene nano lubricant
Graphene nano lubricant can extend the life of fan by 2.1 times, close to the life of double ball bearing, and is quieter.
COPPER PLATE & HEAT-PIPE
The copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
- Copper Plate
- 8 Heat-pipes
- Upgraded Thermal Pad
Screen cooling
Extended heatsink allows air to pass through, providing better heat dissipation.
Dual BIOS
The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.
RGB FUSION
The legendary three-ring lighting provides excellent visual enjoyment. You can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER .
PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
L shape design
- Strengthen the rigidity
- More Sturdy
Provide the additional rigidity on backplate strength to avoid deforming in the long term.
ULTRA DURABLE
The graphics card features excellent power phase design to allow the MOSFETs to operate at lower temperatures and provide a more stable voltage output. Load balancing of each MOSFET can effectively improve the overclocking performance and extend the life of the card. Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
POWER INDICATOR
When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.
LIGHT ON : POWER CABLE DISCONNECTED
LIGHT OFF : STABLE POWER SUPPLY
BLINKING : ABNORMAL POWER SUPPLY
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
GIGABYTE Control center
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
Graphics Processing
GeForce RTX™ 4070
Core Clock
2565 MHz (Reference card : 2475 MHz)
CUDA® Cores
5888
Memory Clock
21 Gbps
Memory Size
12 GB
Memory Type
GDDR6X
Memory Bus
192 bit
Card Bus
PCI-E 4.0
Digital max resolution
7680x4320
Multi-view
4
Card size
L=300 W=130 H=57.6 mm
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
650W
Power Connectors
16 Pin*1
Output
DisplayPort 1.4*3, HDMI 2.1*1
RGB Light
Front: three ring, side
Accessories
1. Quick guide
2. Warranty registration
3. One 16-pin to two 8-pin power adaptor
