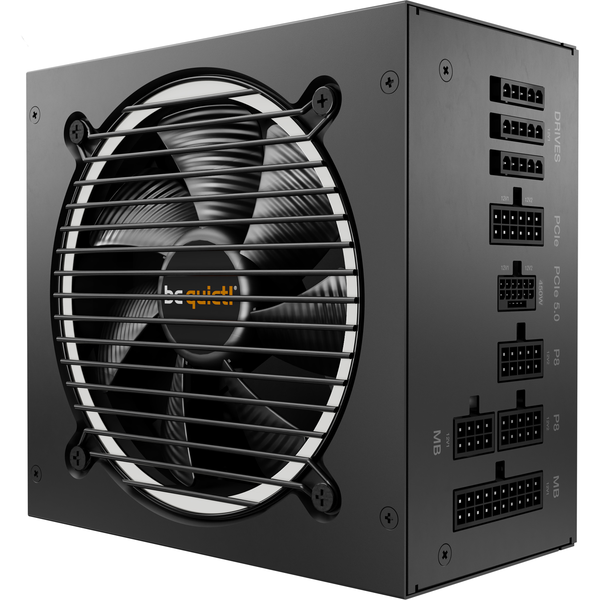

PURE POWER 12 M 650W - EXCEPTIONAL QUIET, SUPERIOR FEATURES
Pure Power 12 M 650W is ATX 3.0 compliant and PCIe 5.0 compatible and offers peerless dependability with best-in-class features. Pure Power 12 M 650W offers the best combination of features with outstanding compatibility.
- 80 PLUS® Gold efficiency (up to 92.7%)
- ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectors
- Exceptionally silent 120mm be quiet! fan
- Advanced stability and voltage regulation thanks to LLC technology
- 2 strong 12V-rails
- Modular cables for maximum build flexibility
- One PCIe 5.0 12VHPWR 450W and 2 PCIe 6+2 connectors for high-end GPUs
80 PLUS® GOLD CERTIFIED - Very high operating efficiency
Pure Power 12 M 650W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 92.7%. The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 12 M 650W is always the correct choice for quiet systems and gaming PCs!
FUTURE-PROOF YOUR SYSTEM - Fulfills all ATX 3.0 specifications
Pure Power 12 M 650W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.
THE NEW STANDARD OF POWER - For massive transient loads
Pure Power 12 M offers 650W of continuous power with 2 independent 12V rails. Even if the graphics card demands excessive power for a short time: Pure Power 12 M 650W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.
UNPRECEDENTED SILENT OPERATION - Achieved with a silence-optimized be quiet! fan
The exceptionally silent 120mm be quiet! fan is temperature-controlled to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class quiet functionality.
HIGH-CLASS TECHNOLOGIES - Rock-solid stability
With its LLC topology Pure Power 12 M 650W provides a best-in-class voltage regulation and efficiency. That makes it perfect for building or upgrading very quiet systems as well as gaming and media creation PCs.
MODULAR CABLES - Utmost convenience and compatibility
Thanks to their modularity, all unnecessary cables in the system are left out. Pure Power 12 M 650W simplifies cable management and routing for a tidy-looking system. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures inside the case.
General data
Model
Pure Power 12 M 650W
Continuous power (W)
650
Peak power (W)
720
Form factor
Version 3.0
Form factor EPS 12V
Version 2.92
Topology
LLC + SR + DC/DC
Digitally controlled
-
Voltage (Vac)
100 - 240
Frequency (Hz)
50 - 60
Input current (A)
10 / 5
Power factor at 100% load
>0.98
Modern standby
Yes
Power consumption in standby (W)
<0.1
Average life time (h / 25°C)
>100,000
Operating temperature up to (°C)
40
Efficiency
80 PLUS certification
Gold
Efficiency (%) at 230V, 2% load
73.3
Efficiency (%) at 230V, 10% load
86.4
Efficiency (%) at 230V, 20% load
90
Efficiency (%) at 230V, 50% load
92.7
Efficiency (%) at 230V, 100% load
90.5
Fan and cooling technology
Fan
Silence-optimized be quiet! fan
Fan size (mm)
120
Bearing technology
Rifle
Motor technology
4-pole fan motor
Max. fan speed (rpm)
1800
dB(A) at 10% load
8.1
dB(A) at 20% load
8.2
dB(A) at 50% load
9.1
dB(A) at 100% load
19.9
Output
Multi-rail operation (12V rails)
2
12V single rail operation
-
Overclocking key
-
+3.3V (A)
20
+5V (A)
20
+12V1 (A)
32
+12V2 (A)
28
+12V3 (A)
-
+12V4 (A)
-
+12V5 (A)
-
+12V6 (A)
-
-12V (A)
0.3
+5Vsb (A)
3
Max. combined power 12V (W)
650
Max. combined power 3.3V + 5V (W)
120
Hold-up time at 100% load (ms)
20.4
Power good signal (ms)
100 - 150
Cables and connectors
Modular cables
Yes
Sleeved cables
P24, 12VHPWR
Flat cables
P4+4, P4, PCIe, drives
Maximum cable length (cm)
95
Cable length to motherboard (cm)
55
No. of cables
7
ATX-Motherboard (20+4-pin)
1
P4+4 (CPU)
1
P8 (CPU)
1
P4 (CPU)
-
12VHPWR cable / W
1 / 450
PCI-e 6+2-pin (GPU)
2
PCI-e 6-pin (GPU)
-
SATA
5
PATA
2
FDD (Floppy)
-
Protection
OTP (over temperature protection)
Yes
OCP (over current protection)
Yes
OPP (over power protection)
Yes
SCP (short circuit protection)
Yes
OVP (over Voltage protection)
Yes
UVP (under Voltage protection)
Yes
SIP (Surge & Inrush Protection)
Yes
Safety certification
BSMI
Yes
CB
Yes
CCC
Yes
CE
Yes
cRUus
-
cTUVus
Yes
CU
Yes
FCC
Yes
RCM
Yes
TÜV
Yes
UKCA
Yes
Environmental directives
Energy Star
8.0
ErP
Yes
WEEE
Yes
RoHs
Yes
Triman
Yes
Scope of delivery
Thumb screws
-
Screws
Yes
Cable ties
Yes
Velcro cable ties
-
User manual languages
DE, EN, ES, FR, PL, RU
OCK slot bracket with switch / OCK jumper
-
SFX-to-ATX adapter bracket
-
Casing
Dimensions without cable (L x W x H), (mm)
160 x 150 x 86
Weight (kg)
1.55
Color
Black
