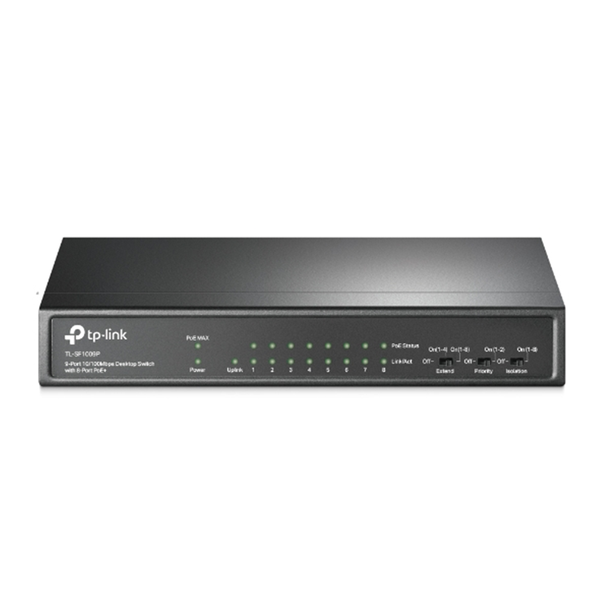

TL-SF1009P-9-Port 10/100Mbps Desktop Switch with 8-Port PoE+
-9× 10/100 Mbps RJ45 ports
-8× PoE+ ports transfer data and power on individual cables
-Works with IEEE 802.3af/at compliant PDs
-Supports PoE Power up to 30 W for each PoE port
-Supports PoE Power up to 65 W for 8 PoE ports*
-Up to 250 m data and power transmitting range under Extend Mode**
-Priority Mode ensures high priority of ports 1-2 to guarantee the quality of sensitive application
-Isolation Mode allows one-click client traffic separation for higher security and performance
Plug and play with no configuration required
HARDWARE FEATURES
Interface
9x 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports)
AUTO Negotiation
AUTO MDI/MDIX
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
Fan Quantity
Fanless
Physical Security Lock
Yes
External Power Supply
External Power Adapter (Output: 53.5VDC / 1.3A)
Packet Forwarding Rate
1.3392 Mpps
PoE Ports (RJ45)
Standard: 802.3 af/at compliant
PoE Ports: Ports 1-8 Power Supply: 65 W
Mac Address Table
2K
Jumbo Frame
2 KB
Switching Capacity
1.8 Gbps
Dimensions ( W x D x H )
6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)
Max Power Consumption
3.6 (no PD connected)
77.1 (with 65 W PD connected)
Max Heat Dissipation
12.3 BTU/h (no PD connected)
262.8 BTU/h (with 65 W PD connected)
