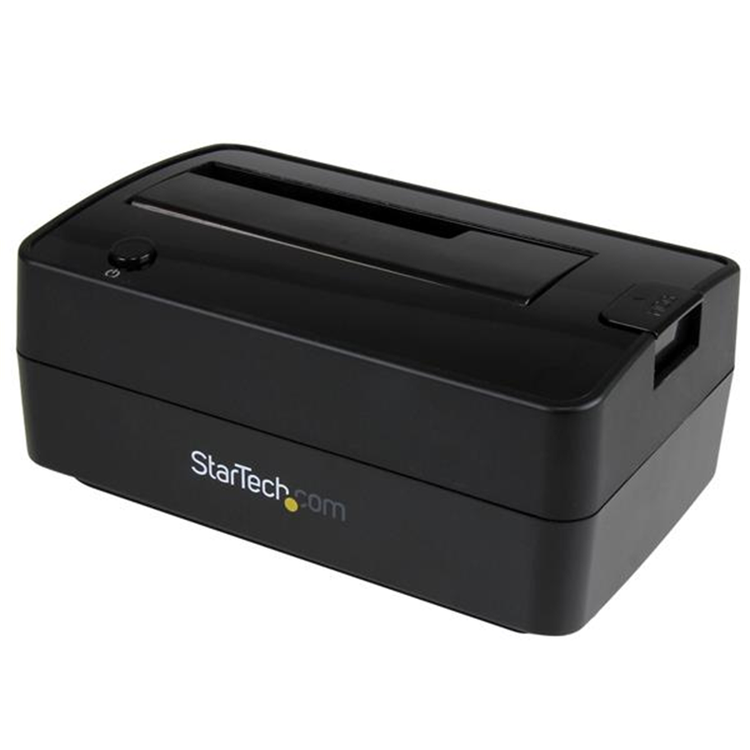

StarTech.com SDOCKU313E Drive Docking Station for 2.5 / 3.5" SATA Drives - USB 3.1(USB-A,USB-C) or eSATA
Connect and access any 2.5" or 3.5" SATA hard drive or SSD using this single-drive docking station, over a USB 3.1 Gen 2 (up to 10Gbps) or eSATA connection.
Supports USB 3.1 Gen 2 and eSATA for flexible use
Ideal for IT professionals, the docking station lets you access a SATA solid-state drive or hard drive quickly, for drive imaging, data recovery, and backups. You can connect through either USB 3.1 Gen 2 or eSATA, and take advantage of the high performance of the latest SSDs and HDDs.
Top-loading design for easy drive access
The dock's vertical drive insertion makes it easy to dock and swap drives from your desktop computer or laptop. You simply insert your SSD or HDD into the drive slot at the top of the docking station, with no tools or trays required. The HDD ejection button allows fast and simple drive removal.
Convenient compatibility
The single-bay docking station comes with a USB Type-A to Type-C cable, for connecting to newer USB-C enabled devices. It also comes with a USB Type-A to Type-B cable, providing backward compatibility with your existing USB 3.0, 2.0 and 1.x devices. An eSATA cable is also included with the dock. The docking station is also UASP compatible, for enhanced performance.
Hardware
Bus Type
USB 3.1 Gen 2 & eSATA
Chipset ID
ASMedia - ASM1351
Compatible Drive Types
SATA
Drive Installation
Removable
Drive Size
2.5in & 3.5in
Fan(s)
No
Interface
USB 3.1 Gen 2
eSATA
Number of Drives
1
Performance
4Kn Support
Yes
Hot Swap Capability
Yes
Max Drive Capacity
Currently tested with hard drives up to 6TB at 7200 RPM
TRIM Support
Yes
Type and Rate
USB 3.1 Gen 2 - 10 Gbit/s
SATA III (6 Gbps)
UASP Support
Yes
Connector(s)
Drive Connectors
1 - SATA Data & Power Combo (7+15 pin) Receptacle
Host Connectors
1 - USB 3.1 USB Type-B (9 pin, Gen 2, 10 Gbps) Female
1 - eSATA (7 pin, Data) Female
Power
Center Tip Polarity
Positive
Input Current
0.6 A
Input Voltage
110V-240V AC
Output Current
2.0 A
Output Voltage
12 DC
Plug Type
M
Power Consumption (In Watts)
24
Power Source
AC Adapter Included
Environmental
Humidity
20% ~ 80% RH
Operating Temperature
5°C to 35°C (41°F to 95°F)
Storage Temperature
-20°C to 50°C (-4°F to 122°F)
Physical Characteristics
Color
Black
Enclosure Type
Plastic
Product Height
2.5 in [63.4 mm]
Product Length
5.7 in [145 mm]
Product Weight
14.5 oz [410 g]
Product Width
3.7 in [93 mm]
Included in Package
1 - USB 3.1 & eSATA HDD/SSD docking station
1 - universal power adapter (NA/JP, EU, UK, ANZ)
1 - 3.3 ft. [1 m] USB-A to USB-B cable
1 - 3.3 ft. [1 m] USB-C to USB-B cable
1 - 3.3 ft. [1 m] eSATA cable
1 - quick-start guide
