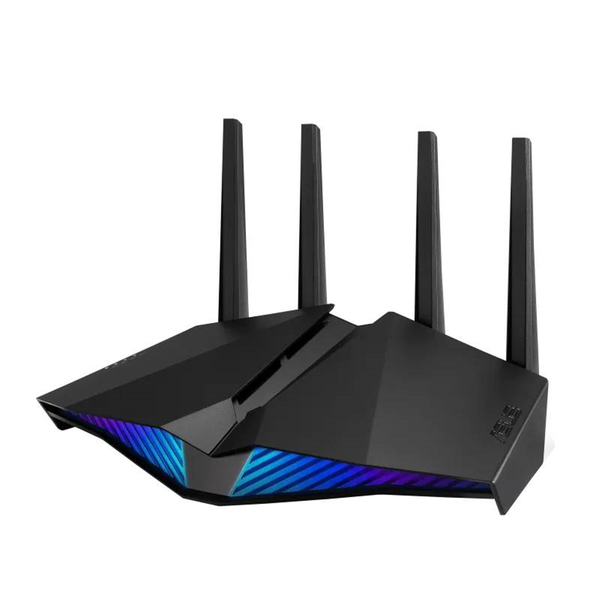

ASUS DSL-AX82U (AX5400) Dual Band AX WiFi 6 Extendable xDSL Modem Gaming Router
AX5400 Dual Band WiFi 6 xDSL Modem Router, WiFi 6 802.11ax, ASUS AURA RGB, Lifetime Free Internet Security, Mesh WiFi support, Gear Accelerator, Adaptive QoS, Port Forwarding
New-generation WiFi 6
Enjoy ultrafast speeds up to 5400 Mbps with the latest WiFi 6 (802.11ax) and 160MHz channels.
DSL, Ethernet and Mobile Internet
DSL-AX82U has multiple ways to connect to the internet with a DSL port, Ethernet port, or even an USB port for mobile broadband connection.
Choose your lighting vibe
Feature ASUS Aura RGB lighting effects that you can choose from a variety of lighting effects and customize lighting to align with specific modes.
ASUS AiMesh support
Create a flexible, seamless whole-home mesh network with AiMesh-compatible routers.
Commercial-grade home network security
Lifetime free ASUS AiProtection Pro, powered by Trend Micro™, with WPA3 and advanced Parental Controls to protect your home.
Model Name
DSL-AX82U
Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IEEE 802.11e
IEEE 802.11i
IPv4
IPv6
Wi-Fi Data Rate
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) (256QAM) : up to 400 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 4808 Mbps
xDSL Data Rate
G.994 Handshake;
G.992.1 (G.dmt) Annex A;
G.992.2 (G.lite) Annex A;
ANSI T1.413;
G.992.3 (ADSL2), Annexes A, L, and M;
G.992.5 (ADSL2+), Annexes A and M;
G.993.2 (VDSL2),Annex A, B,supporting up to 35b [350Mbps/65Mbps];
G.993.2 Amd 7;
G.993.5 (G.vector);
G.998.4 (G.INP)
Antenna
External antenna x 4
Operating Frequency
2.4 GHz / 5 GHz
Ports
RJ45 for 10/100/1000 BaseT for WAN x 1, RJ45 for 10/100/1000 BaseT for LAN x 4
USB 3.2 Gen 1 x 1
RJ11 for xDSL x 1
Button
Reset Button, Power Switch, WPS/LED Combo button
LED Indicator
Power x 1
Wi-Fi x 1
LAN x 1
xDSL/WAN x 1
Package content
DSL-AX82U WiFi modem router, RJ-45 cable, RJ-11 cable, Splitters, Power adapter, Quick Start Guide, Warranty card
Product Weight (g)
572
AiMesh
AiMesh
Primary AiMesh router
Router APP
ASUS Router APP
Game
Game Boost/acceleration
Alexa
Support Alexa skill
AiProtection
Router Security Assessment
Malicious site blocking
Two-Way IPS
Infected Device Prevention and Blocking
Parental Control
Parental Control Customized Internet schedule
Maximum Parental Control profile : 16
Maximum Parental Control content filter rule : 16
Traffic Control
Adaptive QoS
Bandwidth Monitor
Bandwidth limiter
Maximum Bandwidth limiter rule : 32
Traditional QoS
Maximum Traditional QoS rule : 32
Traffic Monitor
Real-time traffic monitor
Wired Traffic Monitor
Wireless Traffic Monitor
Traffic Analyzer
Website history
Wireless
IPv6
MU-MIMO
UTF-8 SSID
Guest Network
Maximum Guest Network rule : 6
Guest Network Connection time limit
WPS
Wi-Fi MAC address filter
Wireless scheduler
Airtime fairness : Airtime fairness
Universal beamforming
Explicit beamforming
WAN
Internet connection Type : xDSL WAN, Ethernet WAN
Dual WAN
3G/4G LTE dongle
Android tethering
Port forwarding
Maximum port forwarding rule : 64
Port triggering
Maximum port triggering rule : 32
DMZ
DDNS
NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough, PPPoE relay
Let's Encrypt
LAN
DHCP Server
IGMP snooping
IPTV
Manually assign IP address
Maximum manually assign IP address rule : 64
VPN
VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP
USB application
File System : FS_Tuxera_HFS+, FS_Tuxera_NTFS, FS_Tuxera_vFAT, FS_ext2, FS_ext3, FS_ext4
HDD hibernation
Safely Remove disk
AiCloud
Download master
AiDisk
Media Server
Time Machine
FTP Server
Samba Server
Shared Folder privileges
Administration
Operating mode : Modem Router
Free OS upgrade
Firewall
Maximum Firewall keyword filter : 64
Maximum Firewall network service filter : 64
Maximum Firewall URL filter : 64
Wake on LAN (WOL)
SSH
Configuration backup and restore
Diagnosis tools
Feedback system
System log
