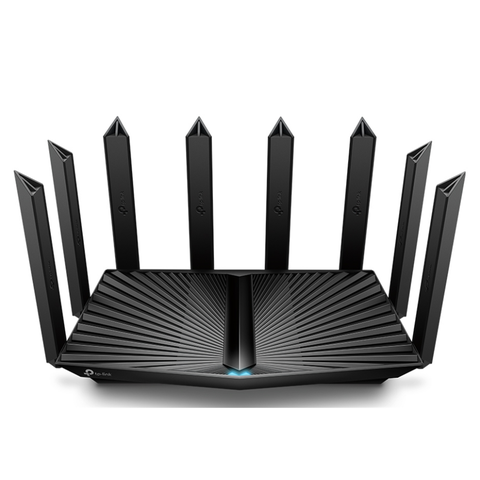

TP-Link Archer AX80 (AX6000) Dual-Band WiFi 6 Multi-Gigabit Router
Hello AX6000,
Goodbye Congestion
Combining dual-band WiFi with high-tech WiFi 6, Archer AX80 provides eight simultaneous data streams to deliver up to 6.0 Gbps WiFi, achieving higher efficiency and lower congestion. By assigning different devices to the dedicated bands, your friends' Netflix feeds won't affect your gaming anymore.
Go Faster — Multi-Gig Wired Connections
In addition to stunning wireless speeds of 6.0 Gbps, AX80 also provides premium wired connections. A 2.5 Gbps port and 1 Gbps port make full use of gigabit speeds from your local ISP. Break through the 1G bottleneck and drive your devices to peak performance. WAN/LAN support gives you remarkable flexibility to tailor both ports to fit your network’s needs.
Powerful Processing with High RAM
Behind the WiFi 6 structure are the robust 2.0 GHz Quad-Core CPU and high memory. Enjoy fast connections and minimal latency even under the heaviest of transmission loads.
Boosted WiFi Coverage Throughout Your Home
8× high-performance antennas boost WiFi signals throughout your home. Beamforming technology detects devices and concentrates signals towards them, especially to previously hard-to-reach areas.
Massively Expanded Device Capacity
The number of IoT devices today creates greater demands on home WiFi. Archer AX80 future-proofs your home network with a higher capacity of devices.
TP-Link OneMesh™
Flexibly Create Whole Home WiFi with Archer AX80
OneMesh™ is a simple way to form a mesh network with a single WiFi name for seamless whole home coverage. Just connect a OneMeshTM range extender to a OneMeshTM router. No more searching for a stable connection.
TP-Link HomeShield:
Advanced Security for Your Everyday Devices
With TP-Link HomeShield, enjoy advanced security features delivering a safe environment that protects your family and network's data and privacy.
VPN Clients and Server Supported
Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device. Archer AX80 can run both the VPN and ordinary internet connections at the same time, delivering security and flexibility.
USB 3.0 Ports
Easily share files between connected devices by plugging in an external drive. You can even make it your personal cloud storage and access it from outside securely.
Protect Your Children
Block inappropriate content for your children, and customize a time range for better online habits.
New Connection Notification
You will be notified by your phone when new devices connect. Kick off any suspicious connections and block them. It’s as simple as that.
Easy Firmware Upgrade
Tired of upgrading firmware? OTA updates enable easy firmware upgrades with a click in the management panel. To keep your security and functions always up-to-date, just turn on the auto schedule.
WIRELESS
Standards
Wi-Fi 6
- IEEE 802.11ax/ac/n/a 5 GHz
- IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds
AX6000
- 5 GHz: 4804Mbps (802.11ax, HE160)
- 2.4 GHz: 1148 Mbps (802.11ax)
WiFi Range
3+ Bedroom Houses
- 8× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
- Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
- High-Power FEM
Improves transmission power to strengthen signal coverage
WiFi Capacity
High
- Dual-Band
Allocate devices to different bands for optimal performance
- OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients
- Airtime Fairness
Improves network efficiency by limiting excessive occupation
- DFS
Access an extra band to reduce congestion
- 8 Streams
Connect your devices to more bandwidth
Working Modes
- Router Mode
- Access Point Mode
HARDWARE
Ethernet Ports
- 1× 2.5 Gigabit WAN/LAN Port
- 1× Gigabit WAN/LAN Port
- 3× Gigabit LAN Ports
USB Support
1× USB 3.0 Port
USB Sharing:
- FTP Server
- Media Server
- Samba Server
Buttons
- LED On/Off Button
- WPS Button
- Wi-Fi On/Off Button
- Power On/Off Button
- Reset Button
Power
- 12 V/3.3 A
SECURITY
WiFi Encryption
- WPA3
- WPA2
- WPA
- WPA/WPA2-Enterprise (802.1x)
Network Security
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
Guest Network
- 1× 5 GHz Guest Network
- 1× 2.4 GHz Guest Network
VPN Server
- OpenVPN
- PPTP
- L2TP
VPN Client
- OpenVPN
- PPTP
- L2TP
OTHER
System Requirements
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
Certifications
FCC, RoHS
Environment
Operating Temperature: 0?~40? (32? ~104?)
Operating Humidity: 10%~90% non-condensing
PHYSICAL
Dimensions (W×D×H)
10.9 × 7.2 × 2.3 in (277.3 × 183.9 × 57.3 mm)
Package Contents
- Wi-Fi Router Archer AX80
- Power Adapter
- RJ45 Ethernet Cable
- Quick Installation Guide
