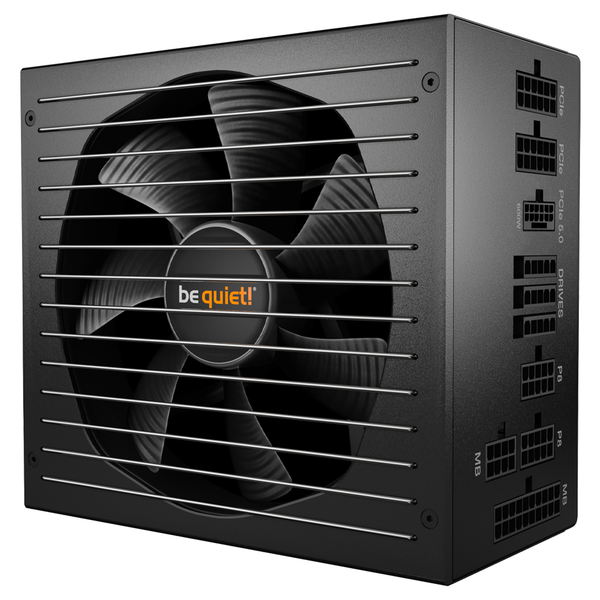

Straight Power 12 - 1000W
World Class Quiet and Efficiency
Straight Power 12 is a future-proof ATX 3.0 power supply with 80 PLUS® Platinum certification and virtually inaudible operation.
- 80 PLUS Platinum efficiency (up to 93.9%)
- ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectors
- Handles massive power excursions
- Virtually inaudible Silent Wings 135mm fan
- Funnel-shaped fan opening on PSU case for high airflow intake
- Full bridge LLC technology for unmatched signal stability
- One massive high-performance 12V-rail
- Japanese 105°C capacitors ensure highest stability and reliability
- Modular cable management for maximum convenience
80 Plus® Platinum Certified - Highly Efficient Operation
Straight Power 12 1000W is certified with 80 PLUS Platinum and an energy efficiency rating of up to 93.9%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation.
Future-Proof Your System - Fulfils All ATX 3.0 Specifications
Straight Power 12 1000W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and 4 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.
The New Standard of Power - For Massive Transient Loads
Straight Power 12 offers 1000W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Straight Power 12 1000W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.
Silent Wings Fan - Provides Virtually Inaudible Operation
The high-end Silent Wings fan delivers best-of-class airflow yet produces very little noise. This is thanks to its unique, optimized fan blade design along with an advanced fluid-dynamic bearing and 6-pole fan motor that largely eliminates operational noise, has a super-long life and minimal power consumption.
Flawless Cooling Concept - For a Longer Lifespan
The funnel-shaped fan inlet of the Straight Power 12 750W increases airflow while reducing unwanted turbulence for a higher cooling performance. The wire-free design inside allows the cool air to reach all components which ultimately leads to a longer lifespan.
State-of-the-Art Technologies - Rock-Steady Signal Stability and Efficiency
With full bridge LLC Straight Power 12 1000W offers advanced technologies, resulting in higher efficiency, better regulation and lower ripple noise for an incomparably stable operation.
Japanese 105°C Capacitors - A Testament to High Quality
Only premium components are used in Straight Power 12 1000W. That is why this PSU features exclusively high-quality Japanese capacitors. They are rated at 105°C for stability, reliability, and a long operating life.
Convenience and Connectivity - Maximum Utility
Modular, sleeved cables of up to 100cm in length simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling - even in the largest PC cases.
General Data
Model Number
BN733
Model
Straight Power 12 1000W
Continuous Power (W)
1000
Peak Power (W)
1070
Form Factor
Version 3.0
Form Factor EPS 12V
Version 2.92
Topology
Full bridge + LLC + SR + DC / DC
Voltage (Vac)
100 - 240
Frequency (Hz)
50 - 60
Input Current (A)
13 / 6.5
Power Factor at 100% Load
>0.99
Modern Standby
Yes
Power Consumption in Standby (W)
<0.14
Average Life Time (h / 25°C)
>100,000
Operating Temperature Up to (°C)
40
Efficiency
80 Plus Certification
Platinum
Efficiency (%) at 230V, 2% Load
64.0
Efficiency (%) at 230V, 10% Load
88.1
Efficiency (%) at 230V, 20% Load
92.2
Efficiency (%) at 230V, 50% Load
93.9
Efficiency (%) at 230V, 100% Load
91.8
Fan and Cooling Technology
Fan
Silent Wings
Fan Size (mm)
135
Bearing Technology
FDB
Motor Technology
6-pole fan motor
Max. Fan Speed (rpm)
2100
dB(A) at 10% Load
7.7
dB(A) at 20% Load
7.7
dB(A) at 50% Load
8
dB(A) at 100% Load
28.9
Output
12V Single Rail Operation
Yes
+3.3V (A)
25
+5V (A)
25
+12V1 (A)
83.3
-12V (A)
0.5
+5Vsb (A)
3
Max. Combined Power 12V (W)
999.6
Max. Combined Power 12VHPWR (W)
600
Max. Combined Power 3.3V + 5V (W)
150
Hold-Up Time at 100% Load (ms)
25.3
Power Good Signal (ms)
100 - 150
Cables and Connectors
Modular Cables
Yes
Sleeved Cables
Yes
Maximum Cable Length (cm)
100
Cable Length to Motherboard (cm)
60
No. of Cables
9
ATX-Motherboard (20+4-Pin)
1
P4+4 (CPU)
1
P8 (CPU)
1
12VHPWR Cables
1
PCI-e 6+2-pin (GPU)
4
SATA
9
PATA
2
Protection
OTP (Over Temperature Protection)
Yes
OCP (Over Current Protection)
Yes
OPP (Over Power Protection)
Yes
SCP (Short Circuit Protection)
Yes
OVP (Over Voltage Protection)
Yes
UVP (Under Voltage Protection)
Yes
SIP (Surge & Inrush Protection)
Yes
Safety Certification
BSMI
Yes
CB
Yes
CCC
Yes
CE
Yes
cTUVus
Yes
CU
Yes
FCC
Yes
RCM
Yes
TÜV
Yes
UKCA
Yes
Environmental Directives
Energy Star
8
ErP
Yes
WEEE
Yes
RoHS
Yes
Triman
Yes
Scope of Delivery
Screws
Yes
Cable Ties
Yes
User Manual Languages
CN, DE, EN, ES, FR, JP, PL, RU, TW, KR
Casing
Dimensions without Cable (L x W x H), (mm)
160 x 150 x 86
Weight (kg)
1.85
Colour
Black
