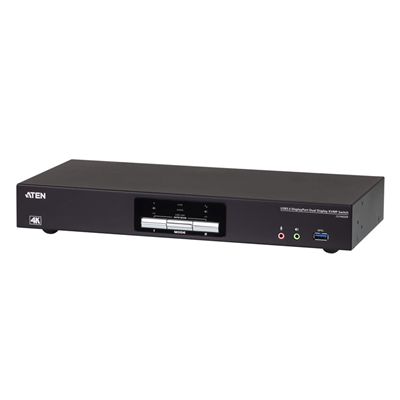

Aten CS1942DP 2-Port USB 3.0 4K DisplayPort Dual Display KVMP Switch
- Superior video quality - 4096 x 2160 @ 60Hz and 3840 x 2160 @ 60Hz; 2-Port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
- Quad-Display - Easily connect two CS1942DP units for a second dual-screen setup controlled through a single connection
- Multi-Stream Transport (MST) allows multiple monitors through a single DisplayPort connector
- DisplayPort Dual - Mode technology (DP++) supports HDMI and DVI signals via a DisplayPort-to-HDMI/DVI DP++ adapter
The ATEN CS1942DP desktop KVM switch helps organize your desktop. Especially when managing a multimedia workstation at a large organization, CS1942DP provides you with instant access to two or four computers, all through a single USB keyboard, USB mouse and two DisplayPort monitors.
Advanced video support provides a better-defined DisplayPort connection with video resolutions up to 4K (4096 x 2160 / 3840 x 2160 @ 60 Hz). Incorporating dual display capability, you are allowed to enjoy a wider screen and easily switch between two or four DisplayPort systems. In addition, featuring a built-in USB 3.1 Gen 1 hub, the CS1942DP delivers unprecedented data transfer rates up to 5 Gbps, allowing you to maximize multimedia operations.
Engineered to meet the ever-increasing demand for dual display, ultra-fast data transmission rates, and lossless 4K video resolution, the CS1942DP is specifically designed for where multitasking is needed such as design, financial trading, and video post production.
For more information: https://www.aten.com/global/en/products/kvm/desktop-kvm-switches/cs1942dp/#.W6M
Computer Connections
2
Port Selection
Hotkey, Pushbutton, Mouse, RS-232 Commands
Connectors
Console Ports
2 x USB Type A Female
1 x DisplayPort Female (Black)
1 x HDMI Female (Black)
2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)
1 x RJ-11 Female
KVM (Computer) Ports
2 x USB3.1 Gen1 Type B Female (Blue)
2 x DisplayPort Female (Black)
2 x 3.5mm Audio Jack Female (Green)
2 x 3.5mm Audio Jack Female (Pink)
Power
1 x DC Jack
USB Hub
2 x USB3.1 Gen1 Type A Female (Blue; 1 x front panel; 1 x rear panel)
Switches
Selected
2 x Pushbutton
LEDs
On Line /Selected
2 (Orange)
USB Link
2 (Green)
Emulation
Keyboard / Mouse
USB
Video
4096 x 2160 @ 60Hz
Scan Interval
1-99 seconds (Default: 5 seconds)
Power Consumption
DC5V:3.44W:59BTU
Environmental
Operating Temperature
0-50°C
Storage Temperature
-20-60°C
Humidity
0-80% RH, Non-condensing
Physical Properties
Housing
Metal, Plastic
Weight
0.73 kg ( 1.61 lb )
Dimensions (L x W x H)
21.00 x 8.80 x 5.55 cm
(8.27 x 3.46 x 2.19 in.)
Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Package Contents
Items included
1x 2-Port USB 3.0 4K DisplayPort Dual Display KVMP™ Switch
4x DisplayPort 1.2 Cables
2x USB 3.0 Cables
4x Audio Cables
1x Power Adapter
1x User Instruction
