Cubi N ADL
- Windows 11 Pro
- Featuring Intel Alder Lake Processors
- Support 4K UHD Display
- Support up to three displays that allows you to see more and do more
- Dual network solution for both internet and intranet
- Get all the performance benefits from USB 3.2 Gen 2 and enjoy the best data transmission experience
- dTPM 2.0 design secures your confidential data with encryption keys
- 24/7 Qualified Reliability Test
- Support MSI Cloud Center & MSI Center app
Resilient and Pioneering - Spirit of Your Business
Your business should be empowered to stop at nothing while navigating your journey with the MSI Business & Productivity Series products.
Small But Powerful
Compact and versatile, this 0.66-liter mini PC is ideal for small workspaces, home entertainment sets, and a variety of industries.
Efficient and Stable: Cubi N, the Energy-Saving Solution.
With built-in UHD Graphics, 4 cores, and 4 threads, Cubi N save more power and energy source while satisfying your usage requirements with only 6W TDP.
- Latest Mobile Alder Lake CPU
- Windows 11 Pro Support
- Power Saving 6W TDP
The Right Speed Performance
- 3200MHz 4GB DDR4
- 1x M.2 SSD
- 2.5” SSD/HDD
Support up to Three Displays in 4K Resolution
With HDMI™, DP, and Type-C port, Cubi N allows you to extend to three monitors to preview your E-commerce content & data at home or in the office, enhancing your efficiency.
Limitless Wireless Connection
Fast, secure, and wireless backup & download between your PC and mobile devices. Transfer files, photos, videos, and more between your PC, Android, and iOS devices faster and easier than a cabled connection. You can make these files accessible to your family or team members, or you can also make files as private as you want. The decision is in your hands.
- MSI Cloud Center + Wifi
Dual LAN Design - Be Your Backup
If one of the LAN port fails, you can still access the network using the other port. Utilizing two LAN ports provides redundancy to the network connection, significantly enhancing data transfer reliability and availability.
Dual LAN Design - Enhanced Security
Users can segment the network into separate subnets for your desktop support team, production environment, and guest network. By doing so, you can ensures that each subnet has its own dedicated resources and that any issues or security breaches in one subnet do not affect the others.
HW TPM 2.0 Support
dTPM 2.0 (Trusted Platform Module) technology is designed to provide hardware-based, security-related functions.You can store your sensitive data & passwords by encryption keys for advanced security.
24 / 7 Qualified Reliability Test
Our relentless commitment to quality is reflected in our extensive reliability testing, which generates over 246,000 hours of MTBF (Mean Time Between Failures). We assure 24/7 reliability and availability,
delivering an effortless user experience.
Quality is not just a buzzword for us, it's our top priority to deliver a hassle-free and high-quality product.
Intensive Quality Testing
Performance Assurance
MIL-STD-1916 testing guarantees MSI products meet high-performance standards, providing reliable and professional experiences with desktop PCs at their best.
PERFORMANCE ASSURANCE
MIL-STD-1916 testing ensures MSI products meet high performance standards, providing a reliable gaming experience with desktops at their best.
DURABILITY
MIL-STD-1916 testing ensures every component meets strict durability standards, making MSI products capable of lasting through extended gaming and work sessions while delivering reliable performance.
PRECISION
We employ automation and advanced technology to achieve the highest level of precision. This technology-driven approach allows us to create and test products with unparalleled accuracy.
RELIABILITY
In the world of business, reliability and dependability are crucial. MSI products go through rigorous testing and quality checks to minimize the chances of failure, ensuring an uninterrupted workflow.
USB 3.2 Type-C Connect All You Need
Type C offers a universal solution for connecting devices with high-speed data transfer, display capabilities, and charging functionality. It's a game-changer for device compatibility and connectivity, enabling easy data transfer and device powering.
- Power Delivery
- Display
- File Transfer
I/O description

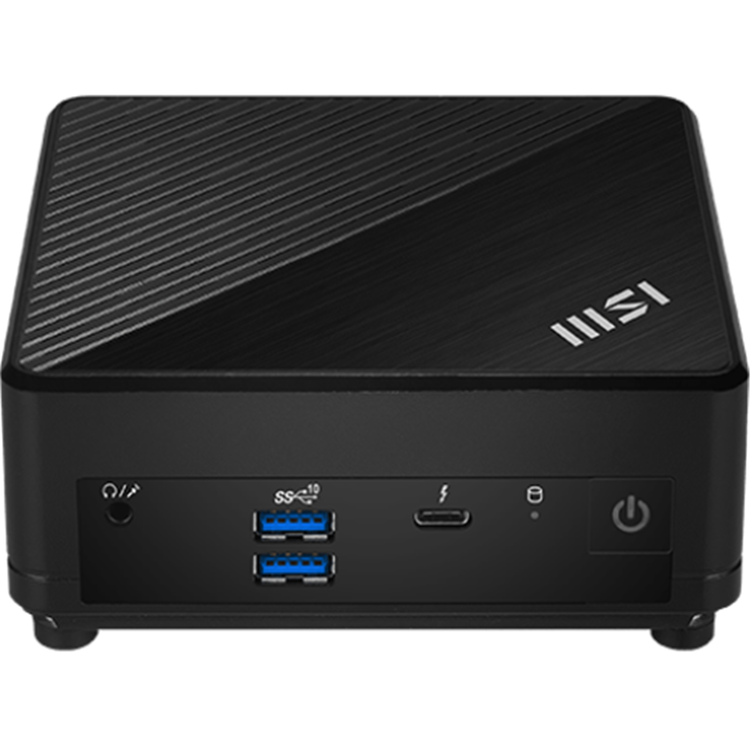

Front:
1. 1x Mic-in / Headphone-out combo
2. 2x USB 3.2 Gen 2 Type A
3. 1x USB 3.2 Gen 2 Type-C (DP Alternate)
Rear:
4. 1x DP out(1.4)
5. 1x HDMI™ out (2.1)
6. 2x RJ45 (LAN)
7. 2x USB 2.0 Type A
8. DC Jack
MSI CENTER
The MSI Center takes optimization to the next level with easily adjustable system modes; it helps to prioritize & allocate the resources on your hand to accelerate the performance of those software which you work with everyday.
Standard VESA Mount Design
VESA Mountable design allows user to hook Cubi N up anywhere you like. Not only improve the flexibility of using Cubi N, but also let users make good use of their space at home or at office.
Easy Maintenance Design
Users can easily upgrade one SO-DIMM, one M.2 SSD or one 2.5" HDD/SSD by disassembling the bottom cover. Made Cubi N an even flexible desktop and also reduce the time wasted on upgrading.
Support External Power Switch
Making Power Computer much easier. Cubi N is designed to support an external power switch. Located computer in a hard to reach area, this is a convenient switch on the desk and hitting it rather than bend down to turn the computer on.
CPU
Intel® Processor N100 (6M Cache, 0.8 GHz up to 3.4 GHz)
OS
Windows 11 Pro
CHIPSET
Intel® SoC
COOLER
Air Fan
6W
GRAPHICS
Intel HD Graphics (NA)
WEIGHT
0.54 / 1.19 (kg)
1.39 / 3.06 (lbs)
MEMORY
DDR4 3200 MHz
SO-DIMM
1 Slots
4GB Installed
STORAGE
1x M.2 slots
1x M.2 SSD combo (NVMe PCIe Gen3 x2 / SATA)
128GB SSD Installed
AUDIO
Realtek ALC256
2.1 Channel HD Audio
COMMUNICATION
2x Realtek RTL8111H
Intel Wireless AC + Bluetooth
EXTENSIONS
1x M.2 connectors
I/O PORTS (FRONT)
1x USB 3.2 Gen 2 Type C (DisplayPort Alternate) USB 3.2 Gen 2 Type C
2x USB 3.2 Gen 2 Type A
1x Mic-in/Headphone-out combo
I/O PORTS (REAR)
2x USB 2.0 Type A (R)
2x RJ45
1x (v2.1) HDMI out
1x (v1.4) DP out
POWER SUPPLY
65W
VESA
100 x 100 mm
PRODUCT DIMENSION (WXDXH)
124 x 124 x 53.7 (mm)
4.88 x 4.88 x 2.11 (inch)
PACKING DIMENSION
221 x 506 x 469 (mm)
8.7 x 19.92 x 18.46 (inch)
SIZE
0.7L Liter
0.7L Pint
MECHANICAL AND ENVIRONMENTAL
0° C ~ 35° C ; -20° C ~ 60° C
0% ~ 85%;0% ~ 90%
FCC(Class B)
CB/CE
UL(CUL)
BSMI
VCCI
RCM(C-Tick)
NOISE LEVEL
28 db Idle mode
38 db Full loading mode
