Simple Dual Full HD Wi-Fi Dashcam
Outstanding Dual Full HD quality in a small form factor, featuring Sony's STARVIS™ image sensor in the front camera for better clarity in low light.
The DR590X-2CH records both front and back or interior of your vehicle in Full HD 1080p.
Built-in Wi-Fi: easily adjust settings and transfer videos to your phone with the BlackVue App.
Dual Full HD Wi-Fi Dashcam
Full HD 1080p front and rear @30fps: the DR590X-2CH records Full HD 1080p videos of the front and back of your car at 30 frames per second, in a 139-degree wide view angle. With the front camera's Sony STARVIS imaging sensor, you get awesome image clarity day and night.
Built-in Wi-Fi: connect to your dashcam with the BlackVue App to adjust settings, check the view from the front and rear cameras or transfer files to your mobile device.
STARVIS is a trademark of Sony Corporation.
Native Parking Mode
With optional Hardwiring cable - DR590X can be hardwired to your vehicle's fuse panel for Parking Mode with the optional Hardwiring cable. The dashcam will switch to Parking Mode automatically when vehicle ignition is turned off. Voltage cutoff and timer can be set in the BlackVue App.
Parking Mode accessories support - DR590X Series is also compatible with all BlackVue Parking Mode Kits and Batteries.
Built-in Wi-Fi and Optional Connectivity
Built-in Wi-Fi: The DR590X-2CH features built-in Wi-Fi to let you connect with the BlackVue App. A button lets you turn Wi-Fi on/off.
Additionally, you can configure the Wi-Fi activation behavior in the settings (Auto Turn On, Auto Turn Off).
USB port: The USB port lets you connect a GPS receiver or LTE-M and GPS receiver combo module.
Your videos are safe
Event Files Overwrite Protection: dashcams record in a loop, overwriting older files when the memory is full. BlackVue can prevent Event files (triggered manually or by impacts) overwriting. Up to fifty (50) files can be protected this way. You can choose to allow new Event files to overwrite past Event files, thus keeping the latest fifty.
Adaptive Format-Free File Management: this BlackVue-developed file system improves recording stability and requires less microSD card formatting.
SD Card Failure Alert: your BlackVue detects as soon as the microSD card fails and warns you with a "Please check SD card" voice alert.
Built-in Impact & Motion Detection
Automatically tags important files - While driving, your BlackVue detects impacts and sudden changes in speed. While parked, it also detects movements*.
Use the filters in the BlackVue App and Viewer - All videos are tagged (Normal, Event, Parking Mode motion or time lapse), so that you can easily find the relevant ones in the BlackVue Viewer for Windows and Mac OS or the BlackVue App for Android and iOS.
External GPS Receiver (Optional)
The External GPS Receiver connects to the USB port to add speed and location data to your videos.
Speed: speed data-in Km/h or Mph-will be overlaid in the video (can be turned off in the settings).
Location: you can visualize the location of your vehicle in the BlackVue Viewer's Map during video playback.
Manage Videos Easily with the BlackVue App and Viewer
The BlackVue App (iOS/Android) and Viewer (Windows/Mac OS) are free to download and use.
Both allow you to change settings and review videos sorted by time and type (Normal/Event/Parking).
With the BlackVue App, connect via Wi-Fi to your dash cam to retrieve videos on the spot.
Set up (easily) and forget
BlackVue dashcams are very easy to install. Attach the front unit to the windshield behind the rear view mirror with the provided double-sided tape.
This way, the dashcam is invisible to the driver's eye. Simply plug the power cords into the cigarette lighter / accessory power socket of your vehicle and it will automatically start recording as you turn ignition on. Once set, you can forget about it, knowing it will reliably record your drive.
Parking Mode Support
The DR590X Series is compatible with Parking Mode. In Parking Mode, your dashcam monitors your parked vehicle, recording videos when it detects movement or impact. It also includes the few seconds before the triggering event, thanks to buffered recording. You will need a 3-wire Hardwiring cable or Power Magic Battery Pack or Ultra Battery to enable this feature.
And also
Parking Mode Event Voice Notifications - Upon exiting Parking Mode, your BlackVue tells you if Events were recorded when you were away from your car, so you can check right away the Event videos on the BlackVue App.
Scheduled Reboot - Schedule a daily automatic reboot (optional-at night by default) to minimize potential errors. Reboots happen only if the dashcam is in Parking Mode and not writing data to the microSD card.
Super stealthy - Completely turn off all LED indicators in Parking Mode. Only the recording LED indicator facing the interior of the vehicle will blink when motion or impact is detected.
What's Included

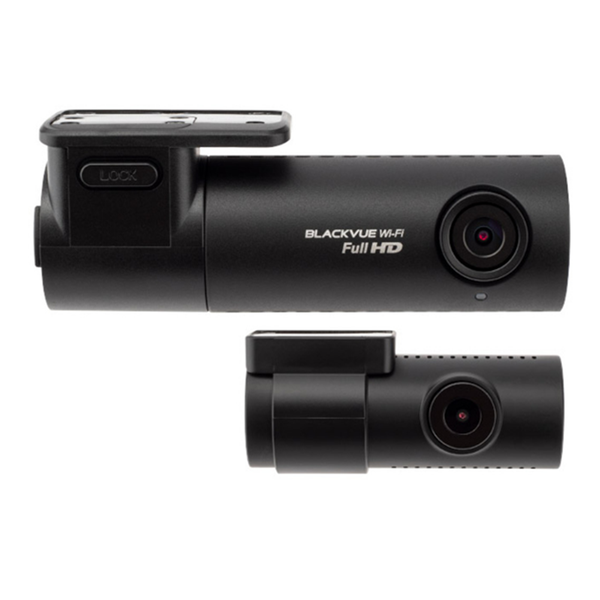

- Front Camera
- Rear Camera
- Rear camera connection cable (6m / 19.68ft)
- Cigarette lighter power cable
- microSD Card
- microSD Card adapter
- Quick start guide
- Cable clips (5EA)
- Double-sided tapes for the Mounting Brackets
- External GPS (Optional)
- Hardwiring power cable (Optional)
Model Name
DR590X-2CH
Channel
2CH
Highlights
Full HD (Front + Rear), Wi-Fi, External GPS, Sony Sensor, External LTE Module (Optional)
Product Dimensions
Front: W 111.8 mm (4.40") x H 34 mm (1.34") / 87.8 (3.10 oz)
Rear: W 67.4 mm (2.55") x H 25 mm (0.98") / 20.3 g (0.72 oz)
Rear Camera Connection
Analog cable
Memory Support
microSD card up to 256GB
Recording Modes
- Normal,
- Event (Impact Detection / Speed Limit),
- Parking Mode (Motion+Impact Detection)
Parking Mode
YES (with optional 3-wire hardwiring cable)
Parking Mode Event Voice Notifications
YES
Imaging Sensor
Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1MP)
Rear: CMOS Sensor (Approx. 2MP)
Viewing Angle
Front: Diagonal 139°, Horizontal 116°, Vertical 61°
Rear: Diagonal 136.8°, Horizontal 111.3°, Vertical 57.5°
Resolution Frame Rate
Front / Rear
Full HD @30fps - Full HD @30fps
* Frame rate may vary during Wi-Fi streaming.
Video Codec
H.264 (AVC)
Image Quality and Bitrate Front/Rear
Highest: 12+10 Mbps
High: 10+8 Mbps
Normal: 8+6 Mbps
Format Free
YES (Adaptive)
Event File Overwrite Protection
YES
SD Card Failure Alert
YES
Scheduled Reboot
YES
Video File Extension
MP4
Wi-Fi
Built-in (802.11 b.g.n)
Cloud Compatible
Cloud Lite
GPS
External (Optional - Dual Band: GPS, GLONASS)
Microphone
Built-in
Speaker
Built-in
Impact Sensor
3-Axis Acceleration Sensor
LED Indicators
Front: Recording LED, GPS LED, LTE/Wi-Fi LED, Front Security LED
Rear: Rear Security LED
Button
Button: Wi-Fi ON/OFF
Operation Temperature
-20C - 70C (-4°F - 158°F)
Storage Temperature
-20C - 80C (-4°F - 176°F)
High Temp Cut Off
Approx. 70C (158°F)
Backup Battery
Built-in supercapacitor
Input Power
DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND/Yellow: B+/Red: ACC)
Power Consumption Hour
Normal Mode (WiFi On/GPS On): 370mA/hour
Normal Mode (WiFi Off/GPS On): 330mA/hour
Parking Mode (WiFi On/GPS Off): 340mA/hour
Parking Mode (WiFi Off/GPS Off): 300mA/hour
When connected to CM100GLTE-M (Optional):
Normal Mode (WiFi On/GPS On): 440mA/hour
Normal Mode (WiFi Off/GPS On): 400mA/hour
Parking Mode (WiFi On/GPS Off): 370mA/hour
Parking Mode (WiFi Off/GPS Off): 330mA/hour
* Actual power consumption may vary depending on use conditions and environment.
Certifications
Front: FCC, CE, RoHS, Telec, WEEE, IC
Rear: FCC, CE, RoHS, WEEE
Software
BlackVue Viewer
* Windows 7 or higher and Mac Yosemite OS X (10.10) or higher
Application
BlackVue Application (Android 5.0 or higher, iOS 9.0 or higher)
Others
Adaptive Format-Free File Management System
LTE
External (Optional - Cat.M1)
Package Info
Weight
1 kg
Dimensions
21 × 15 × 14 cm
MEMORY CAPACITY
32GB, 64GB, 128GB, 256GB
GPS RECEIVER
External GPS included, External GPS not included
