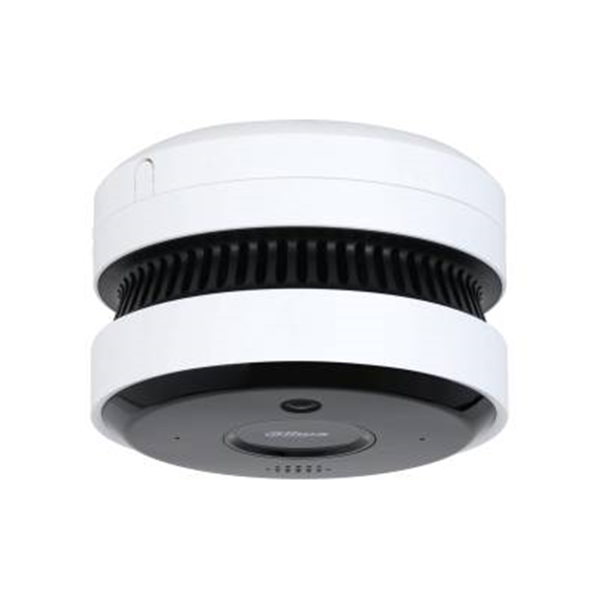

5MP IR AI-fire Smoke Sensing Network Camera
- Remote check based on smoke sensing and video alarm linkage
- Intelligent monitoring: Flame detection
- With split-spectrum smoke chamber and intelligent algorithm, eliminate the false alarm effectively
- Ultra-low power consumption design allows 3-year operation of smoke sensing module with built-in battery
- Built-in high decibel buzzer, smoke alarm is over 80 dB at 3 meters
- Self-test and low battery warning
- Intelligent compensation algorithm relieves the impact of dust accumulation and environment changing on smoke sensing module
- Insect-proof and dust-proof design for smoke sensing module
- Built-in alarm voices, and user can import custom voices
- 5MP 1/2.7" CMOS image sensor, low luminance, and high definition image
- H.265 codec, high compression rate, ultra-low bit rate
- Flip mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- 2/2 Alarm in/out, 1/1 audio in/out; supports max. 256 GB Micro SD card; built-in Mic and speaker
- Flip mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- 12V DC/PoE power supply
- Built-in IR light; the max. IR LEDs Length is 20 m (65.62 ft)
Smoke Detector
Indicators
Standby: Green indicator flashes once per minute
Fault: Red indicator flashes once per minute
Alarm: Red indicator flashes once per second
Self-testing: Red indicator flashes once per second
Protection Area
30 m2–60 m2
Operating Principle
Photoelectric
Alarm Method
Sound and LED Indicator
Power
12V DC/PoE and 3V lithium battery
Operating Current
= 30uA (Camera excluded)
= 300mA (Camera included)
Back-up Battery Life
> 3 years
Alarm Classification
Smoke alarm, fault alarm, low battery alarm
Alarm Sound Pressure
= 80 dB (A) @ 3 m (9.84 ft)
Network Camera
Appearance
Circular
Image Sensor
1/2.7" CMOS
Max. Resolution
2592 (H) × 1944 (V)
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual 1/3s~1/100000s
Minimum Illumination
0.007Lux (color)
0.003Lux (dark)
0Lux (IR)
S/N Ratio
> 56 dB
Illumination Distance
Distance up to 20 m (65.62 ft)
Illuminator Number
2 (IR LED)
Lens
Lens Type
Fixed-focal
Mount Type
M8
Focal Length
2.0 mm
Aperture
F2.0
Field of View
Horizontal: 144°; Vertical: 92°; Diagonal: 179.6°
Iris Control
Fixed
Close Focus Distance
0.2 m (0.66 ft)
Artificial Intelligence
AI Event
Flame detection
Video
Image Setting
Brightness; contrast; sharpness; saturation; gamma
OSD
Channel/time/place/voltage of back-up battery
Video
Manual record; external alarm; alarm video record; timing record
Micro SD Card
Max. 256 GB
Compression
H.265; H.264; H.264H; H.264B
Smart Codec
Smart H.265+/ Smart H.264+
Frame Rate
Main stream:
2592×1944 (1 fps-20 fps)
2688×1520 (1 fps–25/30 fps)
2560×1440 (1 fps–25/30 fps)
2304×1296 (1 fps–25/30 fps)
1920×1080 (1 fps–25/30 fps)
Sub stream:
D1 (1 fps–20 fps)
D1 (1 fps–25/30 fps)
Third stream:
1920×1080 (1 fps-17/24 fps)
Video Bit Rate
H.264: 32 Kbps–10240 Kbps
H.265: 12 Kbps–7168 Kbps
Day/Night
Auto (ICR)
BLC
Yes
HLC
Yes
WDR
90 dB
White Balance
Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control
Auto; manual
Noise Reduction
3D NR
Default Frame Rate under Default Resolution
2048 Kbps (2688 × 1520)
Defog
Yes
Image rotation, mirroring, flipping
Yes
Privacy Masking
8 areas
Language
English; TradChinese; Italian; Spanish; Japanese; Russian; French; German; Portuguese; Turkish; Polish; Romanian; Hungarian; Korean; Czech; Dutch; Ukrainian;Vietnamese; Arabic; SpanishEU; Hebrew; Thai; Bahasa Indonesia
Audio
Audio Interface
Yes
Built-in MIC
Yes
Built-in Speaker
Yes
Audio Compression
PCM; G.711a; G.711Mu; G.726; AAC; G.723
Audio Sampling Frequency
8KHz/16KHz/32KHz/48KHz/64KHz
Alarm
Alarm Event
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; scene changing; smart motion detection; audio detection; flame detection; smoke detected alarm; fault alarm; smoke alarm disconnected; low battery alarm
Network
Communication
1 RJ-45 PoE 10M/100M Ethernet ports
Protocol
HTTP;TCP;RTSP;RTP;UDP;RTCP;SMTP;FTP;DHCP;DNS;DDNS;IPv4/v6;SNMP;QoS;UPnP;NTP
Interoperability
ONVIF; MileStone; Genetec; CGI; PISA
User
10 channels at most
Storage
FTP; SFTP; Micro SD card (256G); NAS
Browser
IE7 and newer versions; Chrome 8+; Firefox 3.5+; Safari 5+
Security
Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1X; controlled network access
Certification
Certification
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
Port
Audio Input
1 channel (RCA port)
Audio Output
1 channel (RCA port)
Alarm Input Interface
2 channels In: 5mA 5V DC
Alarm Output Interface
2 channels Out: 300mA 12V DC
RS 485 Port
1 channel
Electrical
Operating Power
Adapter: 12V DC(±25%); PoE: 802.3af
Power Supply
DC12V+PoE
Power Consumption
Basic power consumption: 2.1W (12V DC); 2W (PoE)
Max. power consumption (ICR + IR LED intensity): 4.9W (12V DC); 4.8W (PoE)
Environmental
Operating Temperature
–10°C to +55°C (+14°F to +131°F)
Operating Humidity
0%–95% RH (non-condensing)
Construction
Casing
Plastic
Product Dimensions
F120 mm × 79 mm (F4.72" × 3.11" )
Package Dimensions
164 mm × 153 mm × 111 mm (6.46" × 6.02" × 4.37")(L × W × H)
Net Weight
442 g ( 0.98 lb)
Gross Weight
613 g ( 1.35 lb)
Installation
Ceiling mount
Power Adapter
Excluded
Lens
Included
