Sophisticated Design
The door station has been crafted with particular attention paid to the materials and coatings used for its surface, resulting in a gently curved, sophisticated metallic-looking design.
The 7” colour LCD internal monitor is equally well-crafted, with a fully flat slimline design utilising touch sensor operation. Match your décor with two monitor colours available – white or silver finish.
Highly Expandable
The VL-SV74AZ Video Intercom Kit is expandable by connecting up to 3 additional internal monitors to the main monitor. An additional door station can also be incorporated.
Clear Image
A 1.3MP image sensor is used in the door station for clear image quality. The unit also incorporates LED lights for improved vision at night.
Electric Lock Release Support
The electric lock can be operated from the monitor. The door lock can be easily and quickly released even from the second floor of the house if an additional monitor* is connected.
Voice Changer
This unique safety feature lowers the voice heard at the door station so that a female's voice sounds like a male's.
Auto Picture Recording
The main monitor and extension monitor can record door station images from up to 50 calls or monitoring sessions (up to 4 still images per visitor/session).
Internal Intercom Capability
When additional internal monitors are added to the system, intercom calls can be made between the main monitor and extension monitors to easily reach areas throughout the house.

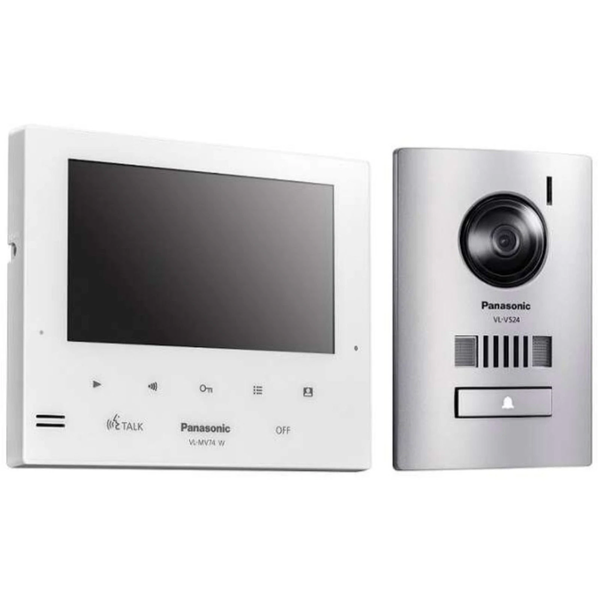

Model composition
Main Monitor(VL-MV74) x1, Door Station(VL-V524) x1
Maximum Connectable Units
Door Station
Up to 2 (1 included with VL-SV74)
Monitor
Up to 3 extension monitors (not including the main monitor)
Wireless Monitor
Wireless sub monitors NOT supported.
Connectable Devices
E-lock Release Support
Up to 2 (user supplied)
PBX
Only Panasonic PBX
Convenience
Picture Recording
Internal memory: Up to 50 visitors/sessions (up to 4 still images per visitor/session)
Night Vision
Yes (LED lights)
Touch Panel / Pan & Tilt
- / -
Voice Changer
Yes
Intercom call
Yes (between main monitor and extension monitor)
Monitor
Power source
220-240 V AC, 50/60 Hz
Power consumption
Standby: 2.3 W, Operating: 11.3 W
* Measurement conditions: VL-V524 (1 pcs.) is connected to the Main Monitor
Dimensions (H x W x D)
Approx. 158 x 201 x 25 mm
Mass (weight)
Approx. 715 g *Including AC cable.
Operating environment
Ambient temperature: Approx. 0 ? to +40 ?, Relative humidity (non-condensing): up to 90 %
Display size
7-inch wide colour with touch sensor / WVGA (800 x 480 pixels)
Display language
English, Arabic, Vietnamese
Talking method
Hands-free
Installation method
Wall mount (mounting bracket supplied)
External material
Flame retardant ABS resin
Door Station
Power source
Power supplied by the main monitor
