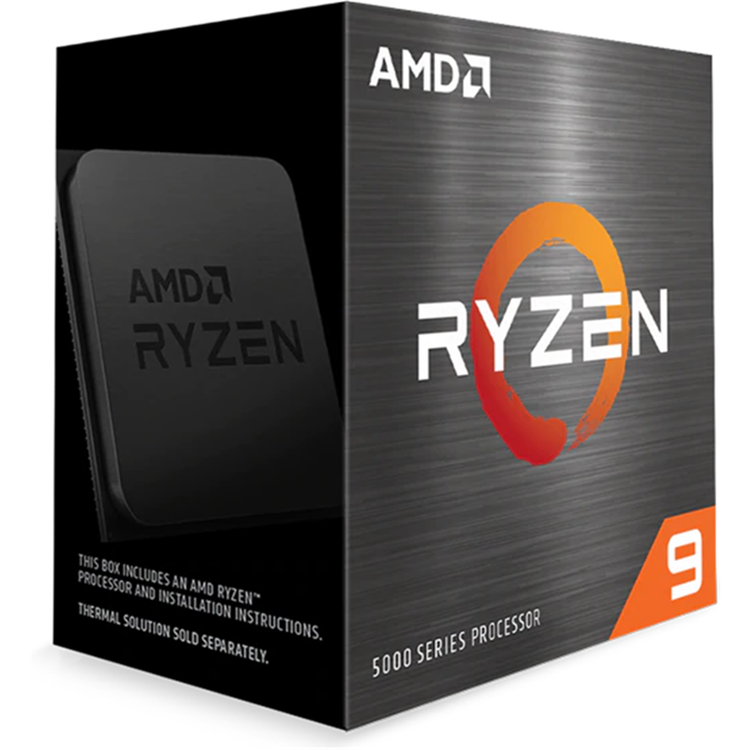

AMD Ryzen 9 5900XT CPU 16 Core / 32 Thread - Max Boost 4.8GHz - 72MB Cache - AM4 Socket - 105W TDP - Heatsink required
The World's Best Gaming Processor
16 cores to power through gaming, streaming and more.
The Fastest in the Game
Get the high-speed gaming performance of the world's best desktop processor.
AMD StoreMI Technology
A fast and easy way to expand and accelerate the storage in a desktop PC with an AMD Ryzen™ processor.
AMD Ryzen™ Master Utility
The Simple and Powerful Overclocking Utility for AMD Ryzen™ processors.§
AMD Ryzen™ VR-Ready Premium
For the best possible VR experiences, AMD offers select Ryzen™ VR-Ready Premium processors.
General Specifications
Name
AMD Ryzen™ 9 5900XT
Family
Ryzen
Series
Ryzen 5000 Series
Form Factor
Boxed Processor , Desktops
Market Segment
Enthusiast Desktop
Consumer Use
Yes
Commercial Use
No
Regional Availability
Global
Former Codename
Vermeer
Architecture
Zen 3
# of CPU Cores
16
Multithreading (SMT)
Yes
# of Threads
32
Max. Boost Clock
Up to 4.8 GHz
Base Clock
3.3 GHz
L1 Cache
1024 KB
L2 Cache
8 MB
L3 Cache
64 MB
Default TDP
105W
Processor Technology for CPU Cores
TSMC 7nm FinFET
Processor Technology for I/O Die
12nm (Globalfoundries)
CPU Compute Die (CCD) Size
74mm²
I/O Die (IOD) Size
125mm²
Package Die Count
3
Unlocked for Overclocking
Yes
CPU Socket
AM4
Supporting Chipsets
X570 , B550 , A520 , X470 , B450
CPU Boost Technology
Precision Boost 2
Instruction Set
x86-64
Supported Extensions
AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB)
Not Included
Max. Operating Temperature (Tjmax)
90°C
*OS Support
Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
Connectivity
Native USB 3.2 Gen 2 (10Gbps) Ports
4
Native USB 3.2 Gen 1 (5Gbps) Ports
0
Native USB 2.0 (480Mbps) Ports
0
Native SATA Ports
2
PCI Express® Version
PCIe® 4.0
Native PCIe® Lanes (Total/Usable)
24 , 20
Additional Usable PCIe Lanes from Motherboard
amd_x570 16x Gen 4
amd_x470 2x Gen 3, 8x Gen 2
NVMe Support
Boot , RAID0 , RAID1 , RAID10
System Memory Type
DDR4
Memory Channels
2
Max. Memory
128 GB
System Memory Subtype
UDIMM
Max Memory Speed
2x1R DDR4-3200
2x2R DDR4-3200
4x1R DDR4-2933
4x2R DDR4-2667
ECC Support
Yes (Requires mobo support)
Graphics Capabilities
Graphics Model
Discrete Graphics Card Required
Key Features
Supported Technologies
AMD Zen 3 Core Architecture , AMD StoreMI Technology , AMD Ryzen™ Master Utility , AMD Ryzen™ VR-Ready Premium
