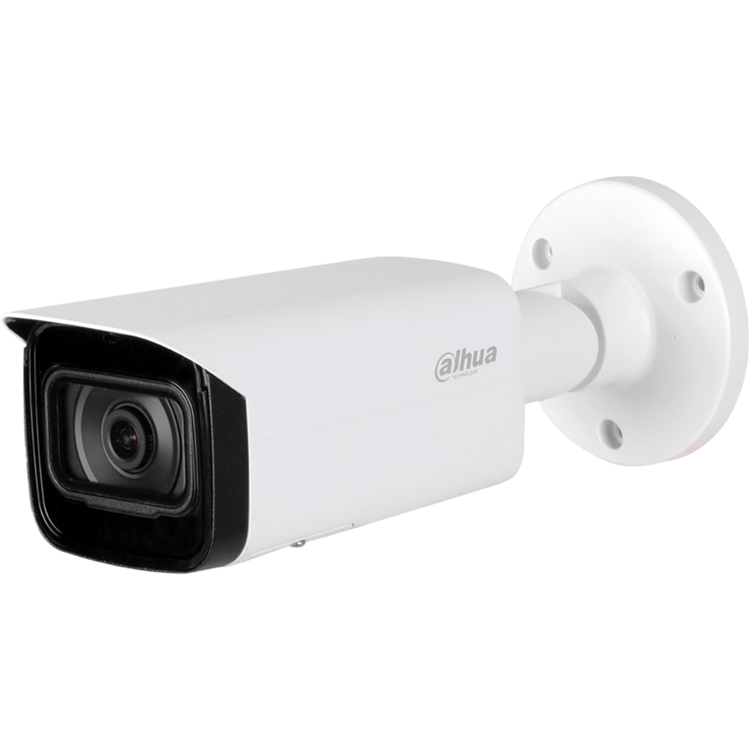

DH-IPC-HFW2431T-AS-S2 - 4MP Lite IR Fixed-focal Bullet Network Camera
With upgraded H.265 encoding technology, Dahua Lite series network camera has efficient video encoding capacity, which saves bandwidth and storage space. This camera adopts the latest starlight technology and displays better color image in the condition of low illumination. It supports SD card storage, dust-proof function, waterproof function and vandal-proof function, complying to the standards of IP67 and IK10 (Supported by some select models).
- 4MP, 1/3" CMOS image sensor, low illuminance, high image definition
- Outputs max. 4MP (2688 × 1520) @20 fps, and supports 2560×1440 (2560 × 1440) @25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in IR LED, max IR distance: 80 m
- RoI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent detection: Intrusion, tripwire
- Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, local alarm, voltage detection,audio detection
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 GB Micro SD card
- 12V DC/POE power support supply · IP67 protection, IK10 protection (optional)
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
WDR
With advanced Wide Dynamic Range (WDR) technology, Dahua network camera provides clear details in the environment of strong brightness contrast. The bright and dark area can get clear video even in high brightness environment or with backlight shadow.
Starlight
Dahua Starlight technology mainly applies to the environment of low illuminance, and it can provide clear colorful video. Even in the environment of ultra-low illuminance, the technology can guarantee the good image effect.
IVS
With advanced video algorithm, Dahua IVS technology supports intelligent functions, such as tripwire and intrusion.
Protection (IP67, IK10, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. IK10: The enclosure can stand the punch more than 5 times from a 5 kg hammer falling from a height of 40 cm (Impact energy is 20J). Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
Camera
Image Sensor
1/3" 4Megapixel progressive CMOS
Max. Resolution
2688 (H) × 1520 (V)
ROM
128 MB
RAM
128 MB
Scanning System
Progressive
Electronic Shutter Speed
Auto/Manual 1/3 s-1/100,000 s
S/N Ratio
> 56 dB
Min. Illumination
0.008 Lux @ F1.6
Illumination Distance
80 m (262.5 ft)
Illuminator On/Off Control
Auto/Manual
Illuminator Number
4 (IR LED)
Pan/Tilt/Rotation Range
Pan: 0°-360°
Tilt: 0°-90°
Rotation: 0°-360°
Lens
Lens Type
Fixed-focal
Mount Type
M12
Focal Length
3.6 mm; 6 mm; 8 mm
Max. Aperture
3.6 mm: F1.6
6 mm: F1.6
8 mm: F1.6
Field of View
3.6 mm: Horizontal 84° × Vertical 45° × Diagonal 100°
6 mm: Horizontal 52° × Vertical 28° × Diagonal 61°
8 mm: Horizontal 40° × Vertical 23° × Diagonal 45°
Iris Type
Fixed
Close Focus Distance
3.6 mm: 1.4 m (4.6 ft)
6 mm: 3.1 m (10.2 ft)
8 mm:4.9 m(16.1 ft)
DORI Distance
Lens / Detect / Observe / Recognize / Identify
3.6 mm / 80 m (262.5 ft) / 32.0 m (105.0 ft) / 16.0 m (52.5 ft) / 8.0 m (26.2 ft)
6 mm / 120.0 m (393.7 ft) / 48.0 m (157.5 ft) / 24.0 m (78.7 ft) / 12.0 m (39.4 ft)
8 mm / 160.0 m (524.9 ft) / 64.0 m (210.0 ft) / 32.0 m (105.0 ft) / 16.0m (52.5 ft)
Smart Event
IVS
Tripwire; intrusion
Video
Video Compression
H.265; H.264; H.264B; MJPEG(only supported by sub stream)
Smart Codec
Smart H.265+/ Smart H.264+
Video Frame Rate
Main stream:
2688 × 1520 (1 fps-20 fps)
2560 × 1440 (1 fps-25/30 fps)
Sub stream:
704 × 576 (1 fps-25 fps)
704 × 480 (1 fps-30 fps)
Stream Capability
2 streams
Resolution
2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control
CBR/VBR
Video Bit Rate
H.264: 32 kbps-6144 kbps
H.265: 12 kbps-6144 kbps
Day/Night
Auto(ICR)/Color/B/W
BLC
Yes
HLC
Yes
WDR
120 dB
White Balance
Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control
Auto/Manual
Noise Reduction
3D DNR
Motion Detection
OFF/ON (4 areas, rectangular)
Region of Interest(RoI)
Yes (4 areas)
Smart Illumination
Yes
Image Rotation
0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower)
Mirror
Yes
Privacy Masking
4 areas
Audio
Audio Compression
G.711a; G.711Mu; G.726; AAC
Alarm
Alarm Event
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; security exception; local alarm
Network
Network
RJ-45 (10/100 Base-T)
SDK and API
Yes
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour
Interoperability
ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P
User/Host
20
Edge Storage
Dahua Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS
Browser
IE
Chrome
Firefox
Management Software
Smart PSS; DSS; DMSS
Mobile Phone
IOS; Android
Certification
Certifications
CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Port
Audio Input
1 channel (RCA port)
Audio Output
1 channel (RCA port)
Alarm Input
1 channel in: 5mA 3V-5V DC
Alarm Output
1 channel out: 300mA 12V DC
Power
Power Supply
12V DC/PoE (802.3af)
Power Consumption
< 7.7W
Environment
Operating Conditions
-40°C to +60°C (-40°F to +140°F)/less than = 95% RH
Storage Temperature
-40°C to +60°C (-40°F to +140°F)
Protection Grade
IP67; IK10(optional)
Structure
Casing
Metal
Dimensions
244.1 mm × F90.4 mm (9.61" × F3.26")
Net Weight
0.91 kg (2.0 lb)
Gross Weight
1.16 kg (2.6 lb)
