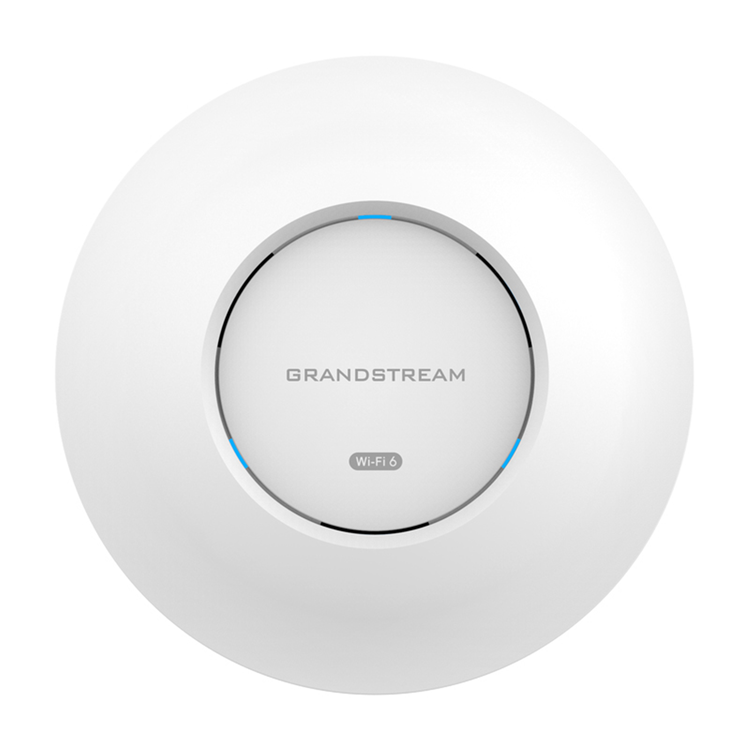

Grandstream GWN7660E Grandstream GWN7660E Hybrid 802.11ax Wi-Fi 6 AP, AX3000, 2x2 2.4 GHz, 3x35.0GHz
The GWN7660E is an enterprise-grade 802.11ax Wi-Fi 6 access point that allows businesses to build next-generation Wi-Fi networks for high-density environments. It offers 2x2:2 MU-MIMO technology on the 2.4GHz band and 3x3:2 MU-MIMO on the 5GHz band
- 3Gbps aggregate wireless throughput and 1 Gigabit wireline port
- Dual-band 2.4G 2x2:2 and 5G 3x3:2 MU- MIMO with OFMDA and XTRA Range technology
- Up to 175-meter coverage range
- Supports 256 concurrent Wi-Fi client devices
- MediaTek Wi-Fi Chipset
- Advanced QoS to ensure real-time performance of low-latency applications
- Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
- Self-power adaptation upon auto-detection of PoE or PoE+
- Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management; GWN Manager offers premise-based software controller
Wi-Fi Standards
IEEE 802.11 a/b/g/n/ac/ax
Antennas
5 individual internal antennas; 2.4GHz x 2, gain 4.0dBi; 5 GHz x 3, gain 5.0dBi
Frequency Bands
2.4GHz radio: 2400-2483.5MHz, 5GHz radio: 5150-5850MHz
Channel Bandwidth
2.4GHz: 20 and 40 MHz, 5GHz: 20,40,80 and 160MHz
Wi-Fi and System Security
WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/ control lockdown via digital signatures, unique security certificate and random default password per device
MIMO
2x2:2 2.4GHz, 3x3:2 5GHz
Coverage Range
Up to 175 meters *coverage range can vary based on environment
Maximum TX Power
5GHz: 24dBm, 2.4GHz: 24dBm *Maximum power varies by country, frequency band and MCS rate
Maximum RX Sensitivity
2.4GHz: -96dBm, 5GHz: -92dBm
SSIDs
32 SSIDs total, 16 per radio (2.4GHz and 5 GHz)
Concurrent Clients
256
Network Interfaces
1x autosensing 10/100/1000 Base-T Ethernet Port
Auxiliary Ports
1x Reset Pinhole, 1x Kensington lock
Mounting
Indoor wall mount or ceiling mount, kits included
LEDs
3 tri-color LEDs for device tracking and status indication
Network Protocols
IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS
802.11e/WMM, VLAN, TOS
Network Management
Embedded controller can manage up to 50 local GWN APs, GWN.Cloud offers a free cloud management platform for unlimited GWN APs, GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency
PoE 802.3af/ 802.3at; Maximum Power Consumption: 12.95W (Not Included)
Environmental
Operation: 0°C to 50°C, Storage: -10°C to 60°C, Humidity: 10% to 90% Non-condensing
Physical
Unit Dimension: 180.4mmx180.4mmx40.8mm(TBD); Unit Weight: 385g, Entire Package Dimension: 228.5x220x79mm(TBD); Entire Package Weight: 630g
Compliance
FCC, CE, RCM, IC
