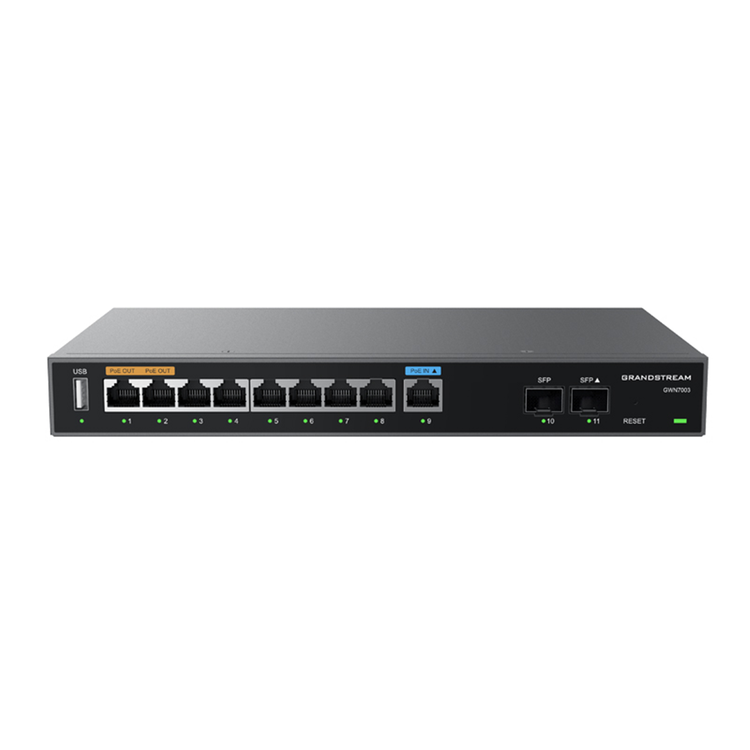

Grandstream GWN7003 Multi-WAN Gigabit VPN Router Hardware
The Grandstream GWN7003 is a Multi-WAN Gigabit VPN router with built-in firewalls that allow businesses to build comprehensive wired, wireless and VPN networks for one or many locations.
It offers high-performance routing and switching power along with built-in VPN support for secure in-office and inter-office connectivity. To provide enterprise-grade security protection and ensure stable network operation, the GWN7003 features a built-in firewall with advanced content security, filtering, threat detection, attack prevention and more. To maximize network reliability, they support traffic load balancing, failover and bandwidth management capabilities.
The GWN7003 include 2 Gigabit SFP ports, 9 Gigabit ethernet ports, and 2 PoE output ports that allow them to provide power to other endpoints. These routers can manage themselves and up to 150 Grandstream GWN Series Wi-Fi APs thanks to an embedded controller located in the products' web user interface. These routers can also be managed with GWN.Cloud and GWN Manager, Grandstream's free cloud and on-premise network management tools.
By providing high-performance routing, VPN support, powerful security protection and easy-to-use network management tools, the GWN Gigabit VPN routers are ideal for a wide variety of deployments including small-to- medium businesses, retail, education, hospitality, healthcare and more.
- 1x GbE RJ45 port with IEEE 802.3af/at PoE Input and 2x GbE RJ45 ports with 48V Passive PoE output or IEEE802.3af
- Supports multiple Gigabit RJ45 ports and Gigabit SFP ports
- Built-in VPN support allows easy access to corporate networks for remote employees
- Multiple WAN ports with load balancing and failover to maximize connection reliability
- Rich firewall features including DDNS, port forwarding, DMZ, UPnP, Anti-Dos, traffic rules, NAT and ALG
- Supports application/protocol monitoring and traffic statistics with Deep Packet Inspection (DPI)
- Advanced QoS to ensure real-time performance of low-latency applications
- Supports application, URL,DNS, and web content filtering to block access from unsecure contents
- Embedded controller can manage itself and up to 150 GWN APs; GWN.Cloud offers a free cloud management platform for unlimited routers and GWN APs
- Supports TURN service with IP PBX to quickly achieve NAT traversal
CPU
Dual ARM Cortex A53 1GHz
Memory and NAT Sessions
512MB RAM, 256MB Flash, 60K NAT sessions
Network Interfaces
2x Gigabit SFP ports and 9x Gigabit Ethernet ports (All ports are WAN/LAN configurable)
NAT Throughput
2.2Gbps
IPsec VPN Throughput
530Mbps
Auxiliary Ports
1x USB 2.0 port, 1x Reset Pinhole
Mounting
Desktop and wall mounting
LEDs
13x single-color LEDs for device tracking and status indication
Connection Type
DHCP, Static IP, PPPoE, PPTP, L2TP
Network Protocols
IPv4, IPv6, IEEE802.1Q,IEEE 802.1p, IEEE802.1x, IEEE802.3, IEEE 802.3u, IEEE 802.3x,IEEE802.3ab
QoS
VLAN, TOS
Support multiple traffic classes, filter by port, IP address, DSCP, and policing
App Qos
VoIP Prioritization
Firewall
DDNS, Port Forwarding, DMZ, UPnP, Anti-DoS, traffic rules, NAT, ALG
Security
Application/protocol monitoring and traffic statistics
Content filtering: Supports Application/URL/DNS/Web Content Filtering
Safe Search
VPN
SSL VPN Server / Client-to-Site
IPsec VPN Client-to-Site / Site-to-Site
PPTP VPN Server / Clien-to-Site
L2TP Client-to-Site
WireGuard (pending)
IPSec Encryption: DES, 3DES, AES
IPSec Authentication: MD5, SHA-1, SHA2-256
IPSec Key Exchange: Main/Aggressive Mode, Pre-shared Key, DH Groups 1/2/5/14
IPSec Protocols: ESP
IPSec NAT Traversal
SSL VPN Encryption: AES, DES
SSL Authentication: MD5, SHA-1, SHA2-256, SHA2-384, SHA2-512
SSL VPN Certificate: RSA
PPTP Encrpytion: MPPE 40-bit, 128-bit, IPSec
PPTP/L2TP Authentication: MS-CHAPv1/2
Max Concurrent VPN Tunnels
Up to 100 Tunnels
Network Management
GWN7003 embedded controller can manage itself and up to 150 GWN APs
PoE Input
Standard: IEEE 802.3af/at
PoE Output
2x PoE out ports, Passive 48V or IEEE802.3af
PoE Power Budget
24V DC 1A: 12.8W
24V DC 1.5A: 24.8W
Power & Green Energy Efficiency
Universal power adaptor included
Input: 100-240VAC 50-60Hz
Output: 24V DC 1A (24W)
Dimensions
260mm(L)x149.35mm(W)*35mm(H)
Weight
1096g
