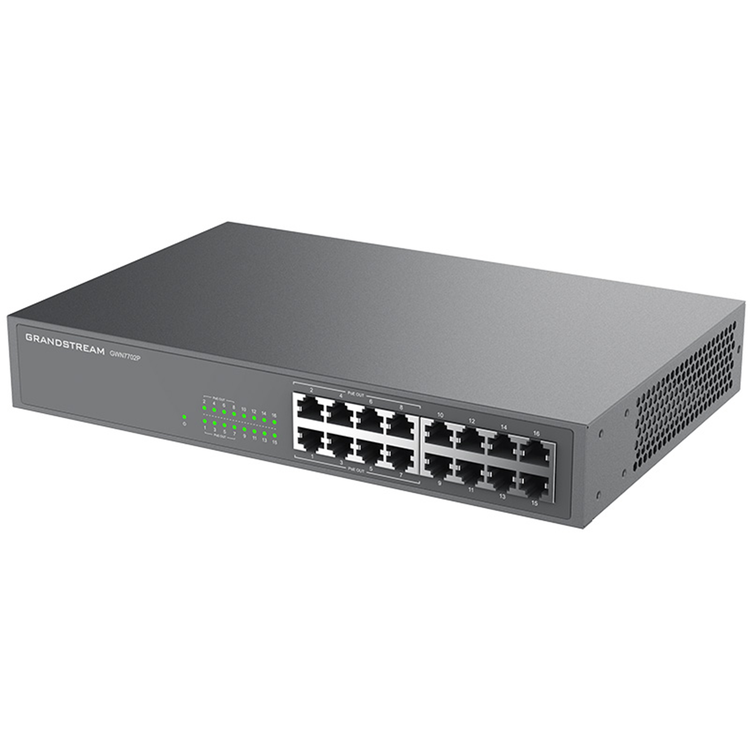

Grandstream GWN7702P Unmanaged Network Switch 16-Port 8-PoE Hardware
Grandstream GWN7702P 16 Port Gigabit Unmanaged Network Switch with 8 Ports 802.3af/at PoE
The GWN7700 series are unmanaged network switches that provide a quick and cost-effective way to add high-speed Gigabit connectivity to home offices and small/medium businesses. It requires no configuration or installation, offers a desktop and wall-mountable design, and provides auto MDI/MDIX to eliminate the need for crossover cables. Each port supports auto-negotiation to allow the GWN7700 series to recognize the link speed of any 10/100/1000Mbps network device and intelligently adjust for compatibility and optimal performance. The PoE (Power-over-Ethernet) models provide ports with IEEE 802.3af/at compliant, smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. The plug-and-play GWN7700 series are the ideal unmanaged network switches for home offices and small-to medium businesses.
Features
- 16 Gigabit RJ45 ports with 8 x 30W port PoE+ output
- Green technology reduces power consumption
- Broadcast/Multicast/ Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
- Supports long cable connection
- QoS - Supports Default Strict Priority when present
Gigabit Ports
16
PoE Ports
8
Enclosure
Metal
Mounting
Desktop/Rack-Mount
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Port Feature
16 × 10/100/1000Mbps RJ45 Ports, AUTO Negotiation, AUTO MDI/MDIX
Network Media
1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex
PoE Configuration
1~8 Ports 802.3 af/at compliant, Up to 30 W on Each Port, Total 138W Power Budget, Overload to cut off the lowest priority port, Priority: Port 1 to Port 8
LED Indicators
Per port: Link/Activity - Green, Per port: PoE output - Yellow, Per device: Power Green
Mac Address Table
8K
Switching Capacity
32Gbps
Jumbo Frame
10KB
Advanced Features
Mac Address Auto-Learning And Auto-Aging, IEEE 802.3x Flow Control, Half duplex backpressure
Power Adapter
Internal 100-240V AC, 50/60Hz. 150W
Max System Power Consumption
10.1W @ 220V/50Hz (excluding PoE output power)
Environmental
Operating Temperature: 0 to 40 °C (32 to 104 °F), Storage Temperature: -20 to 60 °C (-4 to 140 °F), Operating Humidity: 10% to 90% Non-condensing, Storage Humidity: 10% to 90% Non-condensing
Dimensions (L x W x H)
Unit: 280 x 180 x 44mm; Package: 366 x 211 x 53mm
Weight
Unit: 1.58KG, Entire Package: 2.18KG
Compliance
FCC, CE, RCM, IC, UKCA
