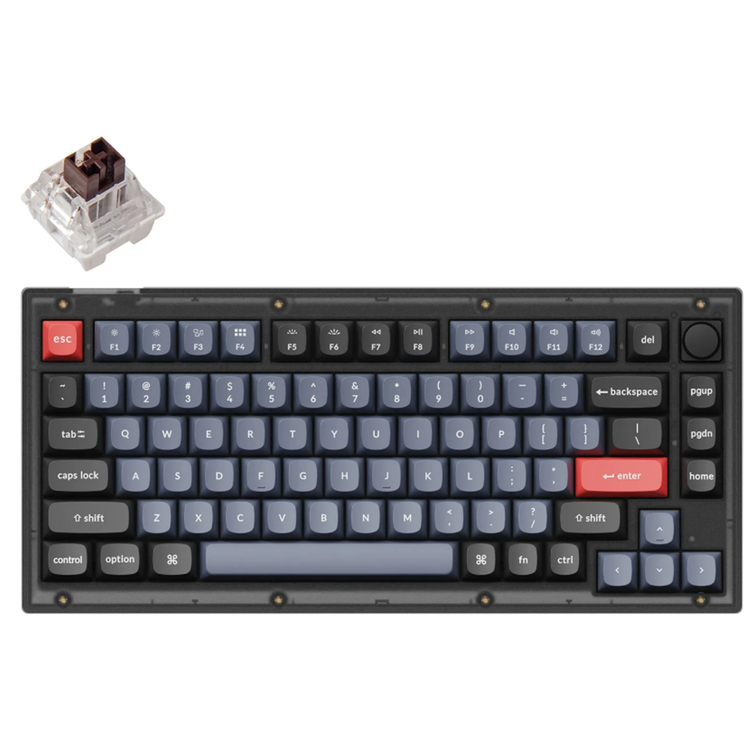

Keychron V1-C3 V1 ANSI 75% Layout 84 Key Frosted Black Full Assembled Knob Hot-Swap
Keychron V1
The V1 is a fully customizable mechanical keyboard ready for any situation. It's a great option to introduce you to the custom keyboard world. With its compact 75% layout, QMK/VIA support, acoustic silicone pad, and double-shot PBT keycaps, the V1 is designed for ultra typing comfort and boost productivity.
All-Around Customizable Keyboard
To build a fully customizable keyboard, we designed every component to be easily assembled so you can customize and adjust any or every parts the way you want.
Programmable Knob
Designed to enhance your creative workflow, its premium rotary encoder allows you to customize your favorite keys and macros on the knob through the VIA software with ease.
An Epic Core Inside The Keyboard
A brand new powerful ultra-low-power Arm structure MCU armed with 128K Flash will provide more flexibility for developers. The polling rate is up to 1000 Hz out of the box, which makes latency non-existent for the competitive game.
OSA Profile Double-shot PBT Keycaps
For the new double-shot PBT keycaps, we built a new profile. It has a similar height to the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.
Switch Layouts Between macOS & Windows
Built with the Mac users' experience in mind while still retaining compatibility for Windows devices, the Keychron V1 comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.
Program V1 with QMK & VIA
With full QMK and VIA support, you can easily program and remap each key on the keyboard. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects, even the knob, and more.
Hot-swappable
The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3-pin and 5-pin MX mechanical switches.
South-facing RGB LED Lights
The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.
All New Screw-In PCB Stabilizers
The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys' (space bar, shift, enter, delete) typing experience is now more stable and smooth. The Keychron V1 also supports third-party stabilizers, including Cherry or Durock.
Width
148.7 mm
Length
328.5 mm
Front Height
17.9 mm (without keycaps)
Back Height
25.8 mm (without keycaps)
Feet Height
2.4 mm
Angle
3.5° / 8.5° / 11°
Weight
970 g ± 10 g (Fully Assembled Version)
Body Material
Full CNC machined aluminum
Plate
Steel
Polling Rate
1000 Hz
Mount Style
Tray Mount Design
Keycaps (Fully Assembled Version)
Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape)
MCU
Ultra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash)
Backlight
South-facing RGB LED
Switch
Keychron K Pro Brown (Fully Assembled Version)
Switch Support
Hot-swappable (5 pin & 3 pin)
Connectivity
Type-C cable
Cable
Type-C cable + Type-A to Type-C adapter
Operating Environment
-10 to 50C
