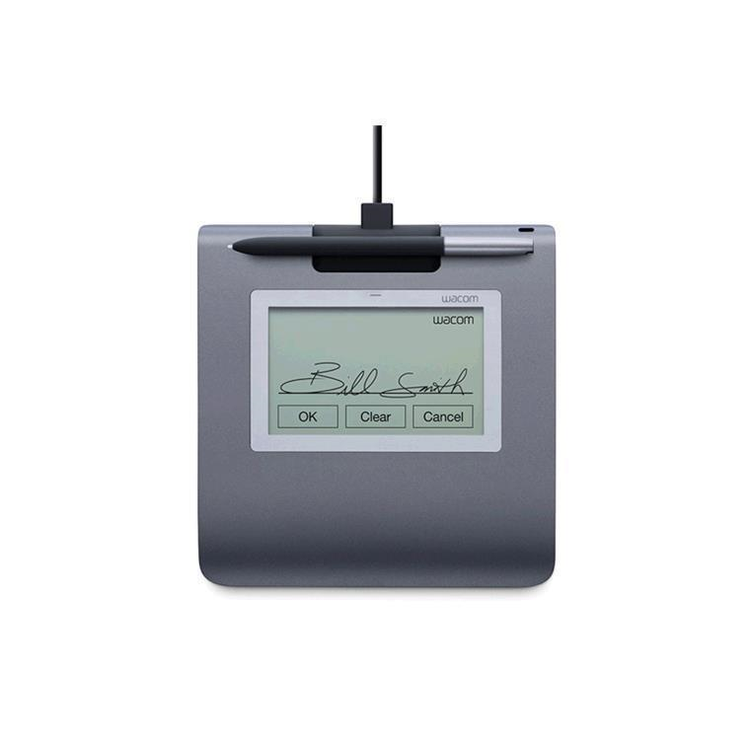

Wacom Full Feature 4.5" Monochrome LCD Signature Pad Bundle with Sign Pro PDF
The Wacom STU-430 LCD Signature Tablet is a full-featured, monochrome signature pad with a new thin design and a low-profile, flat surface. The 4.5" screen is large enough to capture longer signatures as well as to accommodate soft buttons in addition to the signature area. The transflective LCD is easily readable in varying light conditions. The STU-430 is extremely durable, featuring Wacom’s patented maintenance-free EMR technology with no less than 1024 pressure levels and a hardened glass surface that protects the LCD screen and is highly resistant to scratches. For security an AES-256 / RSA-2048 encryption comes along with the STU-430. The integrated pen holder doubles as a USB cable lock to prevent accidental disconnection of the USB cable.
- 4.5" display size
- 320x200 resolution
- Pen pressure: 1024
- Easy-to-read screen
- Electromagenetic resonance (EMR) technology
- Power supply via USB
- Easy-to-read screen
- Enough space for soft buttons
- Elegant design and extremely durable
LCD
Front cover
Dark grey
Main body color
Black
Display type
F-STN Positive Reflective
Cover plate surface
Tempered anti-glare etched glass with anti-reflective coating
Screen diagonal
4.5 inch (3.77 x 2.36 inch, 96.0 x 60.0 mm)
Resolution
320 x 200 pixels
Pixel pitch H/V
0.118 x 0.118 inch, 0.300 x 0.300 mm
Tablet and Pen
Technology
Electromagenetic resonance (EMR)
Active area
3.77 x 2.36 inch, 95.98 x 59.98 mm
Resolution
2.540 lpi (non-interpolated)
Coordinate accuracy
+/- 0.02 inch / 0.5 mm (center)
Report rate
200 points per sec. (non-interpolated), 800 4D coordinates
Pressure levels
1024 (non-interpolated)
Pen storage
Integrated pen compartment
Encryption
AES 256 bit encryption,
RSA 2048 bit key exchange
Pen
Active EMR pen
Pen size (L x D)
5.53 x 0.35 inch, 140.5 x 9.0 mm
Pen weight
7g
Pen tether hole
Yes
Pad identification
Unique ID
Conectivity security
USB cable locking system
Data security
Real time signature capture without internal pad memory
Anti theft
Hole for Kensington locking system (3rd party)
Miscellaneous
Graphics card
Not needed
Software
Compatible with signature / E-signing software and
Wacom´s sign I pro PDF, C++,.Net and Java SDK/API
available for developers
Package content
- STU-430/G signature pad
- UP-610A-89A-1 cordless and battery-free pen
- STJ-A-337 USB cable, (9.84 ft / 3 m)
- UM-0558 quick start guide
- PKB-A038 pen tether (nylon fiber, 19.7 inch / 50 cm)
Dimensions (W x H x D)
6.35 x 6.86 x 0.42 inch, 161.43 x 174.37 x 10.85 mm
Weight
279 g
Power supply
via USB, no additional power adapter required
Power consumption
1.0 W maximum
Communication interface
USB 2.0 (Full-Speed)
Status LED
Yes, Blue Light
Supported operating systems
Windows® 8, 7, Vista, XPTM (excl. x64 version),
Mac OS X 10.6.8 or later
