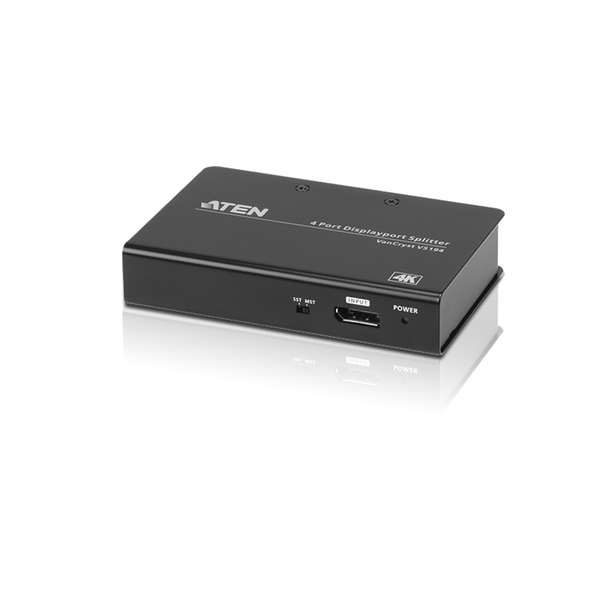

4-Port 4K DisplayPort Splitter
The VS194A 4-Port 4K DisplayPort Splitter is the perfect solution for anyone who needs to send one source of DisplayPort high definition video to two or four DisplayPort displays. The VS192A can not only split but also expand DisplayPort audio/video signal on two or four DisplayPort monitors which is ideal for any multi-display application.
The VS192A is compatible with DisplayPort 1.2a and can support up to 4K resolution at 60 Hz, making it effective and ideal for use with all DisplayPort displays in home theater applications, as well as in corporate, educational and commercial settings.
- Connects one DisplayPort source to two or four DisplayPort monitors
- Supports DisplayPort 1.2a; HDCP 1.3
- Supports resolutions up to 4096 x 2160 / 3840 x 2160 @ 60 Hz
- Supports MST/ Extend Mode and SST/ Split Mode
MST/ Extend Mode:
Extend a video source across 2 displays with a maximum resolution of 4K.
SST/ Split Mode:
Duplicate a single video source to 2 displays with a maximum resolution of 4K on each monitor
- Supports Linkrate: HBR2 (High Bit Rate 2)
Video Output
Interfaces
4 x DisplayPort Female (Black)
Video Input
Interfaces
1 x DisplayPort Female (Black)
Video
Compliance
DP 1.2a; HDCP 1.3
Max. Resolution
Up to 4096 x 2160 / 3840 x 2160 @ 60Hz
Max. Data Rate
21.6 Gbps (5.4 Gbps per lane)
Power
Connectors
1 x DC Jack
Consumption
5 VDC, 1.185W
Environmental
Operating Temperature
0-40 °C
Storage Temperature
-20 - 60 °C
Humidity
0 - 80% RH, Non-Condensing
Physical Properties
Housing
Metal
Weight
0.30 kg ( 0.66 lb )
Dimensions (L x W x H)
12.50 x 8.00 x 25.00 cm
(4.92 x 3.15 x 9.84 in.)
