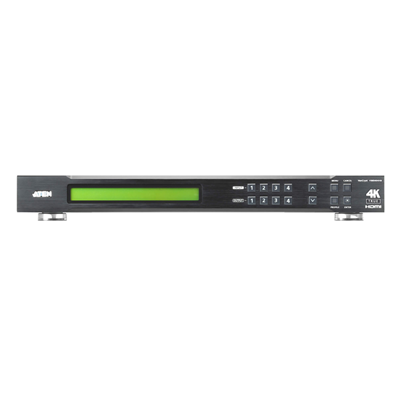

The VM0404H is a 4x4 HDMI Matrix Switch that provides a convenient way to route high definition video and audio from any of four HDMI sources to any of four HDMI displays. The VM0404H allows you to connect four HDMI devices (such as an HD camcorder or satellite box, HD-DVD player, hi-def Blu-ray player, home theater PC, stand-alone streaming media player, or gaming console) to four HDMI monitors, displays, projectors or TVs at the same time.
The remote control and convenient front panel pushbuttons allow you to quickly and easily cycle through HDMI sources and displays, while the front panel LEDs indicate the source device for each display at a glance.
Features
- Connects any of four HDMI sources to any of four HDMI displays
- Toggle between HDMI sources and displays using remote control or front panel pushbuttons
- Superior video quality – HDTV resolutions of 480p, 720p,1080i, 1080p (1920x1080); VGA, SVGA, SXGA, UXGA (1600x1200), and WUXGA (1920 x 1200)
- HDCP 1.1 compatible
- Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
- HDMI (3D, Deep Color)
- Features EDID expert technology to set up different video configurations via different EDID modes
- Supports Dolby True HD and DTS HD Master Audio
- Up to 60 Hz refresh rate
- Long-distance transmission – up to 20 m (24 AWG)
- Built-in bi-directional RS-232 serial remote port for high-end system control
- Power On Detection – if one HDMI source is powered off, the VM0404H will automatically switch to the next powered-on source
- DDC compatible
- Signaling rates up to 2.25 Gbits in support of 1080p display
- All-metal casing
- Easy and affordable way to add four HDMI inputs to your multiscreen home theater system
- Rack Mountable
Video Input
Interface
4 x HDMI Type A Female (Black)
Impedance
100 Ohms
Max Distance
1.8 m
Video Output
Interface
4 x HDMI Type A Female (Black)
Impedance
100 Ohms
Max Distance
15 m
Video
Max. Data Rate
6.75 Gbps (2.25 Gbps Per Lane)
Max. Pixel Clock
225 MHz
Compliance
HDMI (3D, Deep Color)
HDCP 1.4 Compatible Consumer Electronics Control (CEC)
Max Resolutions
Up to 1080p
Max Distance
Up to 15 m
Control
RS-232
Connector: 1 x DB-9 Female (Black)
Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
EDID Settings
EDID Mode
Default / Port1 / Remix
Power
Connector
1 x DC Jack (Black)
Consumption
5.3 VDC, 9W
Environment
Operating Temp.
0-50°C
Storage Temp.
-20 - 60°C
Humidity
0-80% RH, Non-Condensing
Physical Properties
Housing
Metal
Weight
1.86 kg
Dimensions (L x W x H)
43.20 x 15.40 x 4.40 cm
