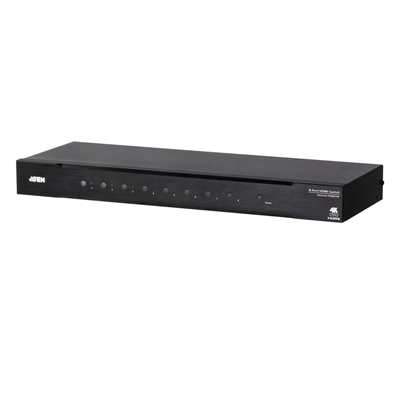

The ATEN VS0801HB is designed for applications that require the routing of 8 sources to one compatible display device. It supports video resolutions up to True 4K (4096 x 2160 @ 60Hz 4:4:4), data rates up to 18 Gbps, 3D, Deep Color up to 12-bit, and HD lossless audio formats. The VS0801HB features Auto Switching modes for auto port selection and Instant Switching for a smooth video transition between HDMI ports. Multiple convenient control options include front panel pushbuttons, bi-directional RS-232, IR, and auto switch, allowing for easy integration.
Engineered to meet today’s demand of True 4K signal transmission and user-oriented design, the ATEN VS0801HB is a powerful solution for a wide range of settings, such as home theater, meeting rooms, trade shows, and shopping centers.
- Allows up to 8 HDMI sources to be connected to one HDMI display
- HDMI 2.0 (3D, Deep Color, 4K); HDCP 2.2 compliant
- Superior video quality - True 4K resolutions of 4K x 2K @ 60 Hz (4:4:4) and standard 1080p (1920 x 1080 @ 60 Hz)
- Built-in bi-directional RS-232 serial port for high-end system control
- Auto switching modes for auto port selection
- Instant switching between HDMI input sources
- Supports IR extension
- Clear LED indication of device status
- Plug-and-play
- Rack Mountable
Switches
DIP
1 x Auto Switch ON / OFF
Video Input
Interfaces
8 x HDMI Type A Female (Black)
Impedance
100 ?
Max. Distance
3M
Video Output
Interfaces
1 x HDMI Type A Female (Black)
Impedance
100 ?
Max. Distance
3M
Video
Max. Data Rate
18 Gbps (6 Gbps Per Lane)
Max. Pixel Clock
600 MHz
Compliance
HDMI 2.0 (3D, Deep Color)
HDCP 2.2
Consumer Electronics Control (CEC)
Max. Resolution
Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Max. Distance
3M
Control
RS-232
Connector: 1 x DB-9 Female (Black)
Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
IR
1 x Mini Stereo Jack Female (Black)
Connectors
Power
1 x DC Jack (with locking)
Power Consumption
5 VDC, 14.84W
Environmental
Operating Temperature
0 - 40°C
Storage Temperature
-20 - 60°C
Humidity
0 - 80% RH, Non-Condensing
Physical Properties
Housing
Metal
Weight
2.14 kg ( 4.71 lb )
Dimensions (L x W x H)
43.72 x 15.83 x 4.40 cm
