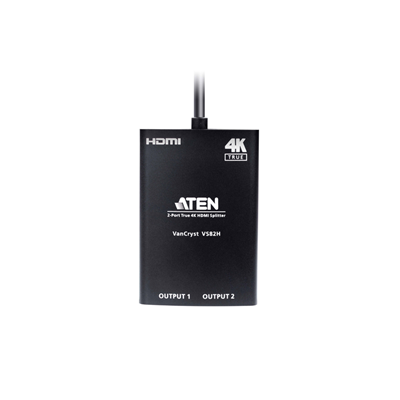

ATEN VS82H 2-port True 4K HDMI Splitter offers you superior video resolution of True 4K and lossless quality when sending one source of digital high-definition video to two displays. It supports HDMI-enabled equipments from DVD players, satellite set-top boxes to all HDMI displays.
Aside from being HDCP 2.2 compliant, the VS82H comes with automatic EDID detection that always presents users with the best resolution across different screens. Along with support for Dolby TrueHD and DTS-HD Master 7.1 Audio channel, the VS82H ensures you distortionless and outstanding audio quality.
Overview:
-Distributes one True 4K source to two HDMI displays at the same time
-Automatic downscaling function - automatically adjusts the resolution to 1080p for 1080p displays to fit their optimal output
-HDMI 2.0 (3D, Deep Color, 4K); HDCP 2.2 compliant
-True 4K video resolution (up to 4096 x 2160 @ 60 Hz; 4:4:4); HDR supported
-Supports max. data rate up to 18 Gbps (6 Gbps Per Lane)
-Supports Dolby TrueHD and DTS-HD Master 7.1 Audio channel
-Automatic EDID detection - enjoy high-quality display and use of the best resolution across different screens
-Quality and durable aluminum metal enclosure
EDID Settings
PORT-1 & Default
LEDs
Status
HDMI Output x 2 (Blue)
Power Input x 1 (Blue)
Video Input
Interfaces
1 x HDMI Type A Female (Black)
Impedance
100 ohm
Max. Distance
30cm / 4K@60Hz (4:4:4)
Video Output
Interfaces
2 x HDMI Type A Female (Black)
Impedance
100 ohm
Max. Distance
3m / 4K@60Hz (4:4:4)
Video
Max. Data Rate
18 Gbps (6 Gbps Per Lane)
Max. Pixel Clock
600 MHz
Compliance
HDMI 2.0 (3D, Deep Color, 4K);
HDCP 2.2 Compatible
Max. Resolution
Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
Power Consumption
3WATT(MAX)BTU
Connectors
USB Port
Micro-USB to USB cable (50cm) X 1
Firmware upgrade & power source
Environmental
Operating Temperature
0-40 °C
Storage Temperature
-20 - 60 °C
Humidity
0 - 80% RH, Non-Condensing
Physical Properties
Housing
Metal (aluminum)
Weight
0.09 kg ( 0.2 lb )
Dimensions (L x W x H)
8.80 x 6.00 x 15.00 cm
(3.46 x 2.36 x 5.91 in.)
Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
