Small businesses are facing a number of challenges—challenges that need constant attention. The right technology can help you stay on top of them and stay ahead of the curve. Technologies like the ones found inside the AP22.

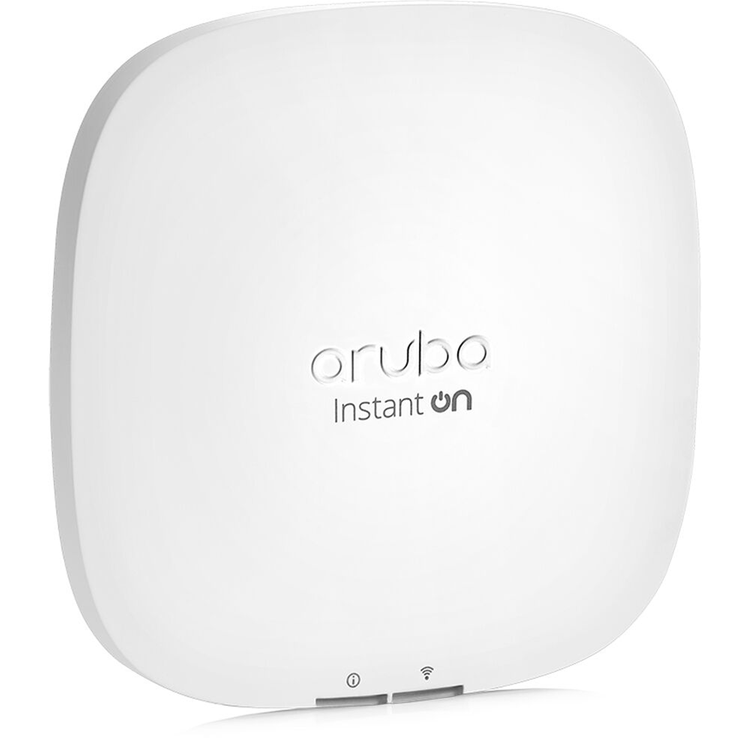

To meet the increasing needs and volumes of connected devices, Aruba Instant On is announcing its first Wi-Fi 6 access point: AP22. Delivering higher capacity and greater
performance at a competitive price, the AP22 is the perfect access point for small businesses with expanding mobile, cloud, and IoT requirements.
Wi-Fi Certified 6TM AP22 access points deliver faster Wi-Fi speeds, greater capacity, and reduced latency between access points and devices for a superior Wi-Fi experience. With
the AP22, you can upgrade your Wi-Fi network to boost performance across devices now, while preparing it for more mobile and IoT devices in the future.
Already have a demanding mobile and/or IoT environment? Delivering 4x the capacity of 802.11ac access points, AP22 can provide an exceptional user experience in a broad variety of scenarios. Remote offices. Hybrid classrooms. Hotels and restaurants. Reimagined retail and hospitality. The AP22 can handle them all without breaking a sweat.
Want to make wires a thing of the past? Combine the AP22 with Smart Mesh Wi-Fi for complete wireless coverage.
Want to keep bandwidth hogs and unknown devices off your network? Banish them with the flip of your thumb on the Aruba Instant On App.
We know the critical role Wi-Fi plays in business today. No business can’t afford downtime. The Aruba Instant On AP22, at every level, is designed for rapid deployment and simplified management. Be it mounting hardware, or remote device management, or having access to the latest business-grade software, the AP22 lives to make your life easier.
- Fast 802.11ax, 2X2:2
- Wi-Fi CERTIFIED 6™ (Wi-Fi 6)
- MU-MIMO performance
- Smart Mesh Wi-Fi support
- Built-in Wi-Fi router/gateway
- Functionality
- Integrated Bluetooth
- Easy-to-use web and mobile app for
- Setup and management
- Secure Guest Wi-Fi with simple setup
- Application classification, control and visibility
Orthogonal Frequency-Division Multiple Access
Allows access points (APs) to handle multiple Wi-Fi 6-capable clients on each channel simultaneously - regardless of device or traffic type. This improves efficiency by boosting overall capacity, while reducing latency.
Target Wake Time (TWT)
Ideal for IoTs that communicate infrequently, TWT establishes a schedule for when clients need to communicate with an AP. This helps reduce power consumption, extending the battery life of clients.
Multiuser, Multiple Input, Multiple Output (MU-MIMO)
Allows you to serve multiple clients (Wi-Fi 5 and Wi-Fi 6) at the same time.
1024-Quadrature Amplitude Modulation (1024-QAM)
Enables a 25% data increase over 256 QAM, improving throughput in your access points and devices.
Trusted Platform Module (TPM)
All Aruba Instant On access points have an installed TPM for secure storage of credentials, keys, and boot codes.
Basic Service Set Colouring (BSS COLOURING)
Allows the network to assign a “color” tag to a channel and reduce the threshold for interference. Network performance is improved because APs on the same channel can be closer together and still transmit at the same time—as long as they are different colors.
Aruba Advanced Cellular Coexistence (ACC)
Uses built-in filtering to automatically minimize the impact of interference from cellular networks, distributed antenna systems (DAS), and commercial small-cell or femtocell equipment.
Low Density Parity Check (LDPC)
Delivers high-efficiency error correction for increased throughput.
Transmit Beamforming (TXBF)
Delivers increased signal reliability and range.
In the Box
Aruba Instant On AP22 Indoor Access Point
Aruba Instant On AP22 Quick Start guide
Combined Ceiling and wall rail mount clip
Ethernet cable
Radios
Dual radio for simultaneous dual-band operation
5 GHz 802.11ax 2x2 MIMO for up to 1.2 Gbps wireless data rate, with Multi User MIMO support (Wi-Fi 6)
2.4 GHz 802.11ax 2x2 MIMO for up to 574 Mbps wireless data rate (Wi-Fi 6)
Maximum Transmit Power
5GHz band: +21dBm (+18dBm per chain, 3dB MIMO gain)
2.4Ghz band: +21dBm (+18dBm per chain, 3dB MIMO gain)
Interfaces
Uplink Gigabit Ethernet port, with PoE-in support (802.3af)
DC power connector (12V) Bluetooth Low Energy (BLE) radio LED status indicators
(2) Reset/LED control button Kensington security slot
Dimensions
160mm x 160mm x 37mm, excluding mount accessories
Weight
500g
Power over Ethernet (POE)
802.3af (class 3)
Max power consumption (worst-case)
10.1W (PoE), 8.8W (DC)
DC power
(12V)
Antennas
Down-tilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 4.3dBi in 2.4GHz and 5.6dBi in 5GHz (of the effective, combined pattern for both antennas in each band).
Mounting
The access point ships with a white mount clip that can attach to both wall and ceiling. You can also purchase a mount (R6P90A) for aesthetic design and looks of the APs, to blend seamless into your environment
Operating temperature
0° C to +40° C
(+32° F to +104° F)
MTBF
795khrs (91yrs) at +25° C
