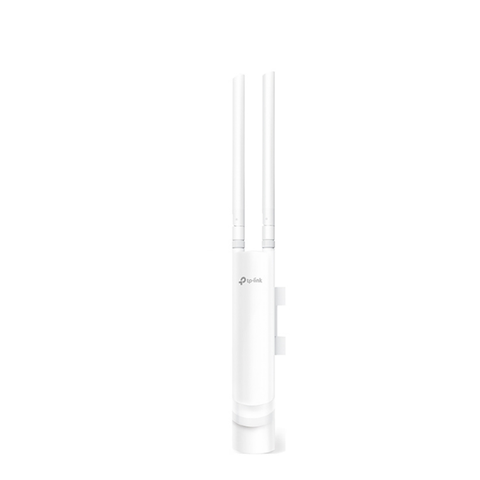

TP-Link Omada EAP225-Outdoor MU-MIMO, Dual-Band AC1200 (300+867Mbps)
- Durable, weatherproof enclosure for outdoor Wi-Fi applications
- Up to 1200Mbps with 2×2 MIMO technology
- Omada Mesh Technology enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient
- Supports Seamless Roaming so even video streams and voice calls are unaffected as users move between locations
- High transmission power and high gain antennas provide a long-range coverage area
- Free cloud centralized management and Omada app for ultra convenience and easy management
- Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
- 802.3af/Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installation
Hardware Specifications
Interface
One gigabit Ethernet RJ-45 port (Support 802.3af PoE and Passive PoE)
Button
Reset
Power Supply
802.3af PoE and 24 Passive PoE(PoE injector included)
Power Consumption
10.5W
Dimensions ( W x D x H )
8.5 × 1.8 × 1.1in.
(215 × 46 × 27 mm)
Antenna
2.4GHz: 2 × 3dBi
5GHz: 2 × 4dBi
Weatherproof Enclosure
IP65
Mounting
Pole/Wall mount (mounting kit included)
Wireless Features
Wireless Standards
IEEE 802.11a/b/g/n/ac
Frequency
2.4GHz, 5GHz
Signal Rate
802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3)
802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 5.5, 11Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Functions
Multiple SSIDs(Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
Airtime Fairness
Beamforming
Band Steering
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
Transmission Power
23dBm, max. (2.4GHz)
22dBm, max. (5GHz)
Management
Omada App
Yes
Omada Cloud Controller
Yes
Omada Controller Software
Yes
Cloud Access
Yes
Email Alerts
Yes
Management MAC Access Control
Yes
System Logging Local/Remote Syslog
Yes
SSH
Yes
Web-based Management
Yes
L3 Management
Yes
Multi-site Management
Yes
Management VLAN
Yes
Others
Certification
FCC
RoHS
Package Contents
AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point
Passive PoE Injector
Power Cord
Mounting Kits
Installation Guide
Waterproof Rubber Insert
Waterproof Antenna
Environment
Operating Temperature: -30?~70? (-22?~158?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
