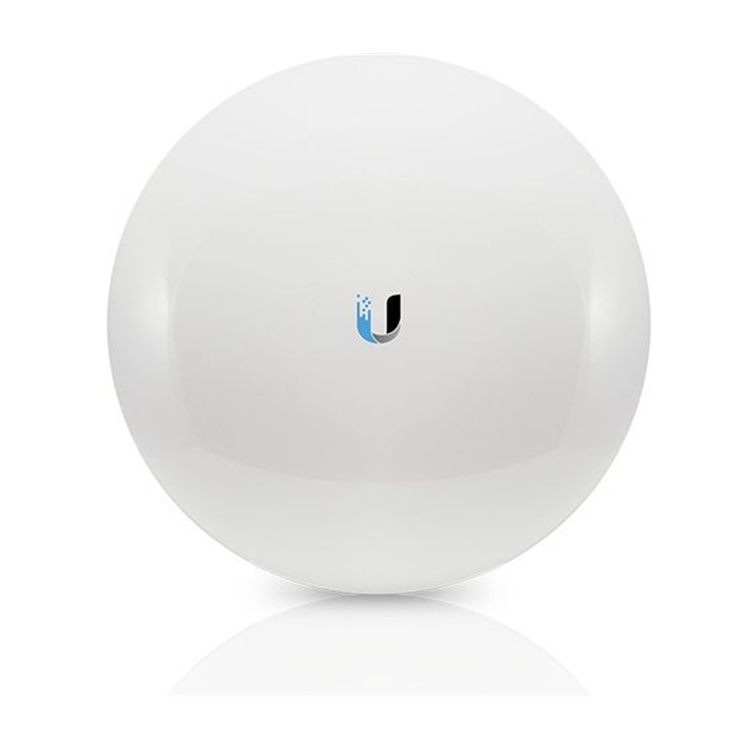

Ubiquiti NanoBeam NBE-2AC-13 High-Performance airMAX ac Bridge,
Ubiquiti Networks launches the latest generation of airMAX CPE (Customer Premises Equipment), the NanoBeam® 2AC with dedicated Wi-Fi management. The NanoBeam 2AC directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam 2AC blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency. The radio and antenna are combined to create a more efficient and compact CPE. The NanoBeam 2AC gets maximum gain out of the smallest footprint. Providing high performance and an innovative form factor, the NanoBeam 2AC is versatile and cost-effective to deploy.
airMAX ac devices feature a multi-radio architecture to power a revolutionary RF analytics engine. An independent processor on the PCBA powers a second, dedicated radio, which persistently analyzes the full 2.4 GHz spectrum and every received symbol to provide you with the most advanced RF analytics in the industry.
Manufacturer's Code
NBE-2AC-13
Output Power
27dBm
Operating Modes
PtP, PtMP
Frequency Range
2412 - 2472, 5150 - 5250 (Management Radio)
Interfaces
(1) 10/100/1000 Ethernet Port
PoE In
Yes, 24V
Operating System
Ubiquiti airOS
Antenna gain dBi
13dBi
Max Power consumption
7.5W
Number of chains
2
Polarisation
Dual Linear
Pole Diammeter
30-50mm
Dimensions
189 x 189 x 125 mm
IP Rating
IP54
