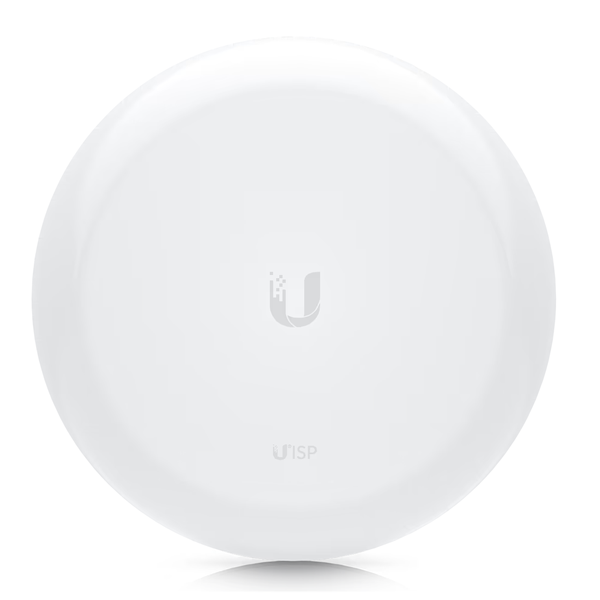

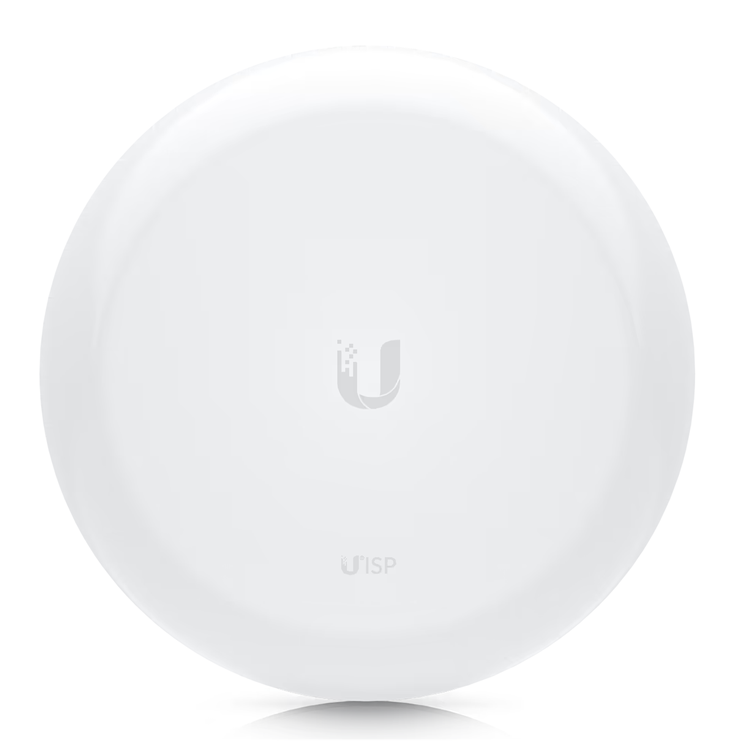

Ubiquiti AirFiber 60 GHz HD Compact form-factor Bridge 10Gbps Ethernet
Multi-gigabit, 60 GHz bridge with SFP+ support and a 2 km link range.
- 2 km link range
- 6 Gbps max. throughput
- (1) GbE and (1) 10G SFP+ port
- Precision alignment mount
- Integrated GPS
Mechanical
Dimensions
Ø189 x 89 mm (Ø7.4 x 3.5")
Weight
Without mount: 1.8 kg (3.9 lb)
With mount: 2.95 kg (6.5 lb)
Enclosure material
Aluminum alloy, UV stabilized plastic
Mount material
Stainless steel (SUS304)
Mount
60G precision alignment pole mount (included)
Wind loading
64 N at 200 km/h (14.39 lbf at 125 mph)
Weatherproofing
IPX6
Hardware
Processor
Quad-core ARM® Cortex® A72 at 1.6 GHz
Memory
2 GB DDR4
Networking interface
(1) GbE RJ45 port
(1) 1/10G SFP+ port
Max. power consumption
29.31W
Power method
Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
Power supply
48V DC, 0.65A gigabit PoE adapter (Included)
Supported voltage range
44–54V DC
22–27V DC
GPS
Yes
RF connections
Internal
Button
Factory reset
Ambient operating temperature
-40 to 55° C (-40 to 131° F)
Ambient operating humidity
5 to 95% noncondensing
Certifications
FCC, IC, CE, terragraph
Software
Operating mode
PtP Only
Services
UISP, ping watchdog, web server, SSH server, NTP client, system log, device discovery
Utilities
Beamform info, discovery utility, ping, trace route, speed test
Network
Bridge mode
Wireless settings
GPS sync
Management interface
Bluetooth management for easy setup over UISP App
WEB UI
Minimum software requirements
Any modern web browser/iOS™ or Android™ based smartphone
System
Max. throughput 60 GHz
3.8 Gbps/ 6 Gbps (with channel bonding enabled)
Max. range
2 km
Encryption
WPA2-PSK (AES)
Uplink/Downlink ratio
50/50
RF
Operating frequency*
57–66 GHz
* Depends on regulatory region.
Channel bandwidth
2160 MHz/4320 MHz (with channel bonding enabled)
Operating channels
58320, 59400, 60480, 61560, 62640, 63720, 64800 MHz*
*Depends on the channel bandwidth.
Polarization
Vertically linear
Beamwidth
Azimuth: 3 dB 3°
Elevation: 3 dB 3°
Electrical downtilt
0°
LEDs
Power
Flashing white: bootup in progress
White: not connected to UISP™ console
Blue: connected to UISP console
Ethernet
Flashing blue: ethernet activity
GPS
Blue: receiving at least (4) GPS satellite signals
60G
Blue: active connection
