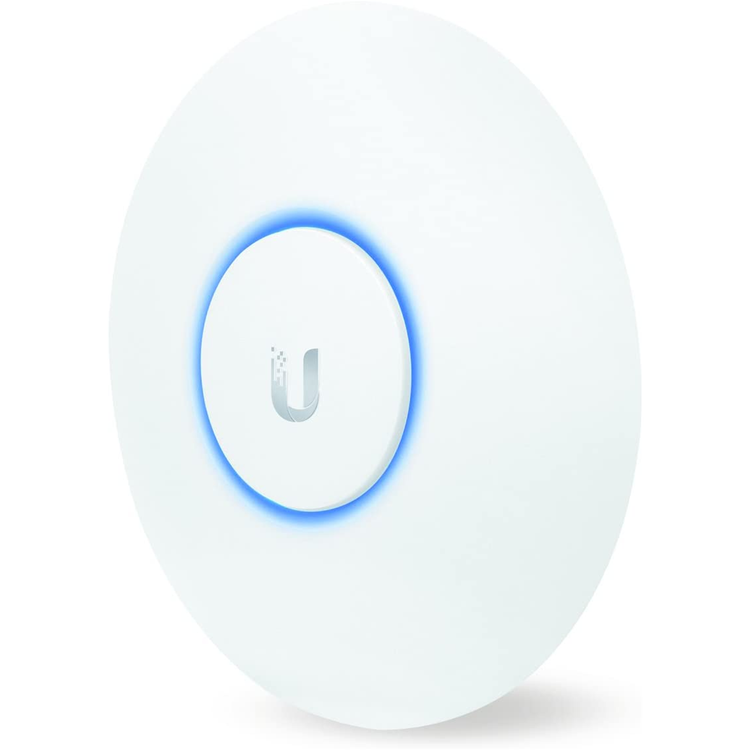

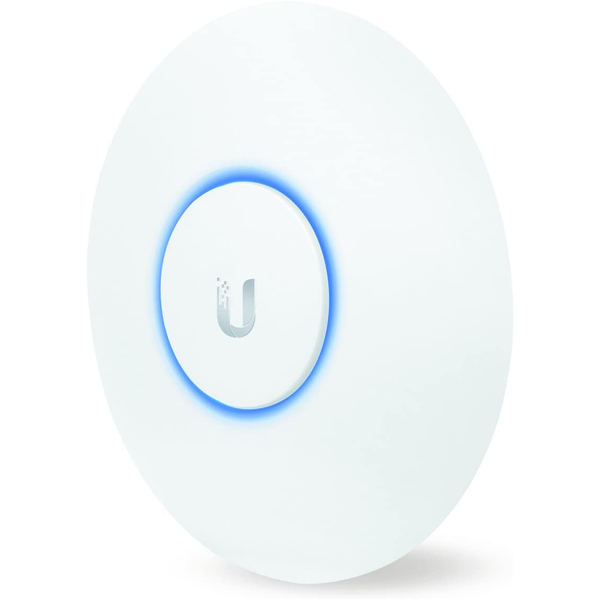

Ubiquiti UniFi U6-Lite Dual-Band AX1500 Indoor Wi-Fi 6 Access
Wi-Fi 6 Access Point with dual-band 2x2 MIMO in a compact design for low-profile mounting.
UniFi 6 Lite is a 2x2 Wi-Fi 6 access point that delivers up to 1.5 Gbps aggregate radio rate with 5 GHz (MU-MIMO and OFDMA) and 2.4 GHz (MIMO) radios. Mount UniFi 6 Lite horizontally in the ceiling to cover a high-density environment, or mount it vertically on the wall to extend its range. UniFi 6 Lite has a compact and nano-sized design, so it can use nanoHD covers and mounting accessories.
- x2 high-efficiency Wi-Fi 6
- 5 GHz band 2x2 MU-MIMO and OFDMA with radio rate of 1.2 Gbps
- 2.4 GHz band 2x2 MIMO with radio rate of 300 Mbps
- Gigabit Ethernet, powered with 802.3af PoE (PoE injector not included)
- Compatible with UAP-nanoHD covers and recessed mounting bracket
- Managed by UniFi Network Controller version: 5.14.3 or higher
MECHANICAL
Dimensions
Ø160 x 32.65 mm (Ø6.3 x 1.3")
Weight Without Mount
300 g (10.6 oz)
With Mount
315 g (11.1 oz)
Enclosure Characteristics
Polycarbonate 110 and ADC12 Die Casting
Mounting Characteristics
Polycarbonate, SGCC Steel
HARDWARE
Processor Specs
880 MHz MIPS 1004 KEc
Memory Information
256 MB
Management Interface
Ethernet In-Band
Networking Interface
(1) 10/100/1000 Mbps Ethernet RJ45
Buttons
Factory Reset
LEDs
White/Blue
Power Method
802.3af PoE, Passive PoE (48V)
Power Supply
802.3af PoE; 48V, 0.32A PoE Adapter (Not Included)
Supported Voltage Range
44 to 57VDC
Max. Power Consumption
12W
Max. TX Power
2.4GHz: 23 dBm
5GHz: 23 dBm
MIMO
2.4GHz: 2 x 2
5GHz: 2 x 2
Throughput Speeds
2.4GHz: 300 Mbps
5GHz: 1201 Mbps
Antenna Gain
2.4GHz: 2.8 dBi
5GHz: 3 dBi
Operating Temperature
-30 to 60° C (-22 to 140° F)
Operating Humidity
5 - 95% Noncondensing
Certifications
CE, FCC, IC
SOFTWARE
Wi-Fi Standards
802.11a/b/g
Wi-Fi 4/Wi-Fi 5/Wi-Fi 6
Wireless Security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3*)
*Supported With Upcoming Controller Versions
BSSID
8 per Radio
VLAN
802.1Q
Advanced QoS
Per-User Rate Limiting
Guest Trafc Isolation
Supported
Concurrent Clients
300+
SUPPORTED DATA RATES (MBPS)
802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (Wi-Fi 4)
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11ac (Wi-Fi 5)
6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11ax (Wi-Fi 6)
6.3 Mbps to 1.2 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80)
