Description

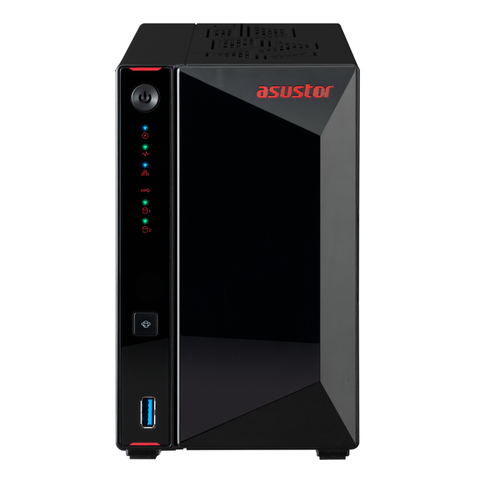

Asustor AS5402T 2-Bay Flash NAS, Quad Core Celeron Upto 2.9GHz, 4GB RAM (16GB Max), 4x M.2, 2x 2.5GbE LAN, 3x USB 3.2 Gen1, HDMI 2.0a, 3 Years Warranty
AS5402T
The Best NAS 4 Flash
Hard Drives + Flash SSDs = The best of both worlds
- Quad-Core 10 nm Intel Celeron N5105 CPU
- 4x M.2 slots for NVMe SSDs
- 4 GB of DDR4-2933 RAM
- Dual 2.5-Gigabit Ethernet ports
- 3x USB 3.2 Gen 2 at 10 Gbps
- HDMI 2.0b
- Aesthetically pleasing M.2 SSD heat dissipation thermal vents
- Enjoy, download, upload and stream content with 4K transcoding
- Supports Wake on LAN and Wake on WAN
Enthusiast-Grade NAS with Entry-Level Pricing
Four M.2 slots for NVMe SSDs to accelerate volumes or assist in content creation
- Easy content creation and storage. Adobe certified
- Cross-platform live streaming and real-time backup of live streams with convenient editing
- Easy local and remote collaboration
ASUSTOR Storage with Adobe Creative Cloud
ASUSTOR is an official Adobe Partner for video and audio solutions
Packed Full of Value
Intel's all-new N5105 10 nm Quad-Core Celeron SoC at 2.0 GHz. With a boost frequency of up to 2.9 GHz, the powerful performance of the CPU ensures that working with the NAS is as smooth as butter while remaining affordable.
Upgradeable 4GB DDR4-2933 RAM
The AS54 comes with four Gigabytes of DDR4 RAM and can be upgraded up to 16GB. DDR4 RAM provides up to 30% greater performance than DDR3 while also lowering energy requirements by 40%.
End of the Road…for Gigabit Ethernet
2.5GbE is not the future. It's now. With 2.5GbE ubiquitous on enthusiast motherboards and available as an affordable USB adapter, the ubiquity of 2.5GbE makes all transfers fast. Break barriers even further by combining the dual 2.5-Gigabit Ethernet ports in SMB Multichannel to enjoy speeds exceeding 2.5 Gbps.
SMB Multichannel (RAID 1)
Windows sequential read and write
- 576 MB/S Read
- 566 MB/S Write
* Performance figures are achieved in the ASUSTOR lab using state of the art client computers under optimized network settings, and could vary in different environments. Ordinary desktop or notebook computers may be unable to reproduce these figures.
Best 4 Flash
The AS54 series is equipped with four M.2 slots for NVMe SSDs to accelerate tasks that require high random IO performance to save unbelievable amounts of time in applications that can take advantage of SSDs, such as content creation. Each M.2 slot for NVMe SSDs is tool-free for easier installation while the cooling vents ensure SSDs run at optimum performance.
All New Gaming-Inspired Theme for ADM
Take a look at the all new gaming-inspired elements brought to ADM.
USB 3.2 Gen 2 - Double Performance
The AS54 series upgrades the USB interface to USB 3.2 Gen 2x1. This means that the USB ports are up to twice the speed of the USB ports found on the previous generation of NAS devices at 10 Gbps. Plug in multiple expansion devices for extra storage or utilize the USB ports for backups and other peripherals for a truly custom experience.
Gaming-inspired looks
Aesthetic cooling vents:
Ensuring high-speed transmission of data on M.2 SSD while looking good.
Tool-free hard drives and SSDs:
Quickly install or replace hard drives and SSDs without tools.
Magnetic panel:
Dust resistant to ensure extra longevity of hard drives and internal components.
Store Games on an iSCSI Drive
A NAS's enormous capacity helps expand storage for a PC. According to modern operating systems, iSCSI drives appear as local drives and programs which cannot be installed on network shares may be installed. This enables certain games to be played from a NAS when they can't be run on a network share.
ASUSTOR Live
Your own streaming center. Stream your from a phone or tablet as well as a computer to multiple streaming platforms, Including, but not limited to Twitch, YouTube, Facebook, Instagram, Restream or RTMP compatible platforms. Unlike services like restream.io, ASUSTOR Live doesn't require fees to operate to stream to multiple platforms and channels which saves you money and streaming resources. Recordings can be safely saved to your NAS for future use.
Overwhelming 4K HDR Experience
The AS5402T features HDMI 2.0b with 10bit 4K hardware decoding, HEVC decoding and VP9 10bit Profile2 decoding for a smoother experience and lower CPU usage. Use Plex Pass or a third-party player to play 4K HDR videos.
Exclusive MyArchive Cold Backup Technology - Unlimited Capacity Expansion
MyArchive cold backup technology turns NAS hard disks into removable storage archives. Directly insert a MyArchive hard disk into the NAS to easily access, backup and share terabytes of content.
Protected From the Inside and Out
Protect your data from loss, damage and attacks with the ASUSTOR NAS. An ASUSTOR NAS is better protected by running the Linux-based ADM, employing a built-in firewall, ClamAV Antivirus, MyArchive and ADM's various backup tools help protect ransomware even better.
Network Attack Protection
- Firewall
- ADM Defender
- Cloud Backup Center offsite backups
Secure Data Transmission
- VPN connection
- SSL certificate connection
- Automatic logout
Internal Data
- AES-256 folder encryption
- Antivirus software
- MyArchive
Access Control
- File/folder/app isolation
- 2-Step Verification
- Wake-on-LAN (WOL)
- Wake-on-WAN (WAN)
Snapshot Center
Snapshot Center is a new feature for ASUSTOR NAS devices to utilize Btrfs and iSCSI volumes to take snapshots of the information inside a NAS. Snapshot Center supports up to 256 snapshots of a volume and can be done every five minutes, creating a backup that can be restored easily if data is damaged or lost.
MyArchive now supports Btrfs and snapshots. Btrfs for MyArchive supports snapshots and version history to help protect against accidental deletions or modifications.
DataSync Center
DataSync Center combines multiple cloud services into a single app. DataSync Center includes, but is not limited to Google Drive, Dropbox, OneDrive and Yandex and supports multitasking as well as multiple accounts. Control your data with instant and scheduled backups as well as using Cloud Backup Center to create a hybrid cloud that keeps your data online and offline, keeping your data protected.
Cloud Backup Center
Cloud Backup Center brings support for various business cloud services including, but not limited to Amazon S3, Backblaze B2, Baidu Cloud, IBM Cloud, Rackspace Cloud Files, Microsoft Azure Blob Storage, Alibaba Cloud, Google Cloud Storage, Box, hicloud S3, Lyve Cloud, SFTP and WebDAV. Control your data with instant and scheduled backups as well as using Cloud Backup Center to create a hybrid cloud that keeps your data online and offline, keeping your data protected.
Create the Ultimate Home Multimedia Center
Enjoy electrifying digital entertainment on demand with ASUSTOR NAS. Through ASUSTOR's App Central, you can install additional multimedia server Apps such as UPnP Media Server and OwnTone giving your NAS the ability to stream multimedia content to your computers, TVs and mobile devices.
SoundsGood + AiMusic
Photo Gallery 3 + AiFoto 3
LooksGood + AiVideos
Photo Gallery 3 + AiFoto 3
The all new Photo Gallery 3 and AiFoto 3 have been revamped and brings a variety of new features to make photo organization easier than ever. New features for Photo Gallery 3 include, but not are limited to custom folder selection, timelines, smart albums, deduplication, and new photo modes. Easily blow up photos to up to twice their size, play songs on slideshows, and customized share links make for an even better photo viewing and sharing experience.
Comprehensive Surveillance System
An ASUSTOR NAS provides optimal reliability for home and small business users looking to set up a surveillance system. Four free camera channels are offered, making it an extremely cost-effective surveillance solution for those looking to protect their home or small business. ASUSTOR provides each NAS with the capability to expand to more cameras for those with bigger demands. Up to 44 camera channels can be purchased through camera licenses. After installing Surveillance Center and its corresponding mobile app AiSecure, stream live surveillance feeds to virtually any internet-connected Android or iOS smartphone to keep an eye on your most valued assets from anywhere, inside or outside.
5 Steps 60 Sec
Setup your surveillance system in a flash
1 Start quick installation wizard
2 Automatic camera search
3 Add cameras with just one click
4 Configure video format
5 Configure recording schedule
Supports up to 44 camera channels
Portainer - Easy Docker Deployments
Even more possibilities for ADM with Portainer for Docker images. With thousands of images, Portainer can download and deploy more types of programs than ever before. Portainer is incredibly user friendly and employs a graphical interface to make docker images easier to deploy than ever.
Dr. ASUSTOR
ASUSTOR provides a holistic solution for protecting your data against a variety of threats using Dr. ASUSTOR. Dr. ASUSTOR helps protect your data from a variety of threats, including, but not limited to ransomware attacks.
Mobile Apps
ASUSTOR's exclusive EZ Connect technology allows you to connect to your NAS from anywhere with your Mobile device in order to access and share your files. ASUSTOR mobile apps provide pass code lock functions in order to protect your privacy and data. You can also make use of HTTPS connections for even more added security.
App Central
Unleash the unlimited potential of ASUSTOR NAS. The applications that come pre-installed with each ASUSTOR NAS device are just the beginning. At your convenience, you can browse through and download any applications that pique your interest from App Central. Whether your interests lie in business, website construction or even digital home entertainment, App Central has got you covered. With over 200 unique Apps, App Central provides you with the boundless variety of applications that you require to satisfy your digital lifestyle needs. Explore the unlimited potential of ASUSTOR NAS devices while creating a personalized NAS device for yourself.
Hardware Specifications
CPU
CPU Model
Intel Celeron N5105
CPU Architecture
x64 64-bit
CPU Frequency
Quad-Core 2.0GHz (burst up 2.90 GHz)
Memory
Memory
4GB SO-DIMM DDR4
Memory Module Pre-installed
4GB (1x 4GB)
Total Memory Slots
2
Memory Expandable up to
16GB (2x 8GB)
Support mixed capacity
Flash Memory
8GB eMMC
Storage
M.2 Drive Slots
4
Compatible Drive Type
3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD
M.2 2280 NVMe
Maximum Drive Bays
2
Supports Hot Swappable Drives
Yes
External Ports
Expansion
3x USB 3.2 Gen 2x1
Network
2x 2.5 Gigabit Ethernet (2.5G/1G/100M)
Multimedia Output
1x HDMI 2.0b
Others
System Fan
1x 70mm
Infrared Receiver
Yes
Power Supply Unit / Adapter
65W x1
Input Power Voltage
100V to 240V AC
Certification
FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA
Operation
Power Consumption
22.9 W (Operation);
12.7 W (Disk Hibernation);
0.71 W (Sleep Mode)
Noise Level
18.6dB (HDD idle)
Operation Temperature
0°C~40°C (32°F~104°F)
Humidity
5% to 95% RH
Size and Weight
Size
170 (H) x 114 (W) x 230 (D) mm
Weight
1.71 kg / 3.77 lb
Software & Features
General Specifications
Supported OS
Windows 7, 8, 10, 11, Server 2008, Server 2012, Server 2016, Server 2019, Server 2022
macOS
UNIX, Linux, and BSD
Supported Languages
Deutsch, English, Français, Italiano, Nederlands, ???????, ???, ??, ????, ????, Ceská, Polski, Svenska, Dansk, Norsk, Suomi, Português, Türkçe, Español, Magyar, ???????
Supported Browsers
Firefox
Chrome
Safari
Microsoft Edge
Network
Network Protocols
CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog
Connection and transmission
TCP/IP (IPv4 & IPv6)
Link Aggregation: Supports 802.3ad and Six Other Modes for Load Balancing and/or Network Failover
Jumbo Frame (MTU)
VLAN
EZ Connect
Wireless Network
DDNS and EZ-Router
Supports Wake-on-LAN (WOL)
Supports Wake-on-WAN (WOW)
File Management & Sharing
File System
Internal Drive: EXT4 ,Btrfs
External Drive: FAT32, NTFS, EXT3, EXT4, HFS+, exFAT ,Btrfs
File Explorer
Web-based File Management
ISO File Mounting
Share Links
Task Monitor
Browse Files on Local PC
Thumbnail Previews
Data Access via External Optical Drive
Supports video playback
Network Recycle Bin
Share folder-based
Maintains original directory structure and file permission
On-click restore
Supports scheduled emptying
Filtering rules
1. File size
2. File extension
Deletion Settings
1. File size
2. File date
Storage management
RAID
Support Multiple Volumes with Spare Drives
Volume Type: Single, JBOD, RAID 0, RAID 1
Support for Online RAID Level Migration
iSCSI/IP-SAN
Maximum Targets: 256
Maximum LUNs: 256
Maximum Snapshot Versions of a Single LUN: 256
Target Masking
LUN Mapping
ISO File Mounting
Supports MPIO
Persistent (SCSI-3) Reservations
Disk Management
Scheduled Bad Block Scans
Scheduled S.M.A.R.T Scans
Access & Security
Access Control
Maximum Number of Users: 4096
Maximum Number of Groups: 512
Maximum Number of Shared Folders: 512
Maximum Number of Concurrent Connections: 512
Supports Windows Active Directory
Supports Windows Active Directory / LDAP
ACL
Provides both Windows ACL and Linux ACL permission configuration methods
Can enable Windows ACL for specific shared folders
Comprehensive support for Windows' 13 types of advanced permission settings
Can view Windows ACL permission settings from within ADM
Supports local users and groups
Exclusive permission reset function allows users to quickly restore default permissions
System Administration
Log Type: System Log, Connection Log, File Access Log
Real-time Online User Monitor
Real-time System Monitor
User Quota
Virtual Drive (ISO Mounting, Maximum 16)
UPS Support
Security
AES 256-Bit Encryption
Firewall: Prevent Unauthorized Access
Alert Notifications: E-mail, SMS
Encrypted Connections: HTTPS, FTP over SSL/TLS, SSH, SFTP, Rsync over SSH
Built-in Hardware Encryption Engine: AS10/11/31/32/33/40/52/53/54/6/61/62/63/64/65/66/67/70/71/FS67 Series
Network Defender
Auto black list
Trusted list
Black/White list
Supports IP/IP range/geolocation
Backup
Backup Solutions
Rsync (Remote Sync) Backup
Cloud Backup
FTP Backup
External Backup
One Touch Backup
EZ Sync
Snapshots
Btrfs Snapshots
256 snapshots
iSCSI LUNs
Support model: AS31/32/40/50/51/52/53/54/61/62/63/64/65/66/67/70/71/FS67. Snapshot Center will not display Volume snapshots information in other models.
Others
ASUSTOR Hightlight
System Migration
EZ Connect
Dr. ASUSTOR
2-way Backup
Task Monitor
Eco-Friendly Design
System Automatically Enters Sleep Mode (Schedule S3)
Auto-Standby for external drives
Auto Fan Control
LED Night Mode
Power Schedule: On, Off, Restart, and Sleep
Energy Control
Configurable Disk Hibernation and Sleep Mode Wait Time
Configurable Time Period for Sleep Mode Activation
Automatic Sleep
Featured Apps
Official ASUSTOR Apps
Antivirus (ClamAV)
Scheduled Scans
Automatic Virus Definition Updates
Quarantine Infected Files
ASUSTOR Portal(HDMI Local Output)
Support Firefox browser
Power Control Settings: Power on, Sleep, Restart and Wake via Remote
Customizable ASUSTOR Portal Desktop Wallpaper
Add Shortcuts to Favorite Websites
Increased TV Compatibility via Overscan and Resolution Settings
Maximum Resolution:
ASUSTOR Portal comes preloaded with Netflix and Youtube. Users can install the supplementary URL-Pack to get access to even more popular video streaming sites such as Plex, Vimeo and Youku.
After installing URL-Pack-Social, users will be able to choose between social media sites such as Facebook, Twitter, Linkedin, Pinterest, Hangouts, Telegram, Snapchat and Instagram.
VirtualBox
Virtual Machines are Able to run the Following Operating Systems: Windows, Linux, Solaris, macOS
Virtual Machine Import Format: OVF
Virtual Machine Export Format: OVF 0.9, OVF 1.0, OVF 2.0
Virtual Machine Snapshots
Physical NAS Network Port can be Designated for use by Specific Virtual Machine
Linux Center
Integrating NAS operating system with Linux
Easy installation with just one click
HDMI output on command
Download Center
Supports BT(Torrent & Magnet Link), HTTP and FTP Downloads
Torrent Search
Choose Files Before a BT Task Starts
Customizable Download Schedule
Bandwidth Control
RSS Subscription and Automatic Downloading (Broadcatching)
ASUSTOR Download Assistant for Windows & Mac
AiDownload for Android with Push Notification
Smart Download Function
Cloud Backup Center
Support Amazon S3, Backblaze B2, Microsoft Azure Blob Storage, Alibaba Cloud, Baidu Cloud, IBM Cloud and Rackspace Cloud Files, SFTP, WebDAV, Box, hicloud S3, Google Cloud Storage
Immediate or scheduled backup
Perform multiple backup tasks and back up multiple accounts
DataSync Center
Support OneDrive, OneDrive Business, Google Drive, Dropbox, and Baidu Wangpan,Yandex
Supports file filter and bandwidth limitation
Supported backup methods:
Sync
Directly upload files to Cloud from NAS
Directly download files from Cloud to NAS
FTP Explorer
Directory Structure View with Drag & Drop Transfers
Task Monitor
Stopping of Transmission Task & Resumption of Connection
Encrypted Connections: Explicit over TLS, Implicit over TLS
FTP Site Manager
Bandwidth Control
Maximum Simultaneous Transfer Control
HiDrive
Each ADM Account is Able to Individually Log in to One HiDrive Account
Supported Backup Methods:
- Directly Upload Files to HiDrive from NAS
- Directly Download Files from HiDrive to NAS
Supported Protocols:
- Rsync
- FTP
- FTPS
- SFTP
- Rsync + SSH
LooksGood
Built-in three main video library categories; movies, TV shows, home movies and smart video sorting management
Efficient global search function allows for searches by keywords followed by the execution of more detailed searches for the purpose of finding categories of movies, TV shows, home movies and parameters such as actors, director, year, genre, writer and title
Attractive poster wall and thumbnail display
Automatic production of video poster thumbnails
Centralized management and ability to configure order of favorites and playlist history
System administrator is able to configure video library and editing permissions according to user preferences
Can configure access permissions to share with friends and family
Multimedia conversion feature
Self-defined smart folder for video conversions
Easy Streaming with Chromecast and DLNA
Supports playback of videos in Apple TV via AiVideos tvOS version
Mail Server
Each ADM Account can Become an Independent Email Account
Email Activity Monitor (Over 1 Week, 1/3/6 Months)
Provides SMTP, IMAP and POP3 Mail Protocols
Supports SMTP Relay and Verification
SMTP-SSL Secure Connections
Spam Filter and Black List Settings
Antivirus Scanning for Emails
Email Alias Creation and Mapping
Monitoring of Mail Queue
Mail Service Activity Log
Exclusive Email Backup Mechanism
Auto-Forwarding and Auto-Response Protocols
Photo Gallery 3
Quickly find and view photos from a specific date in Photo Gallery 3's timeline.
Photo Gallery 3 sorts your photos in a smarter way. Smart albums found in Photo Gallery 3 include places, videos, recently added, favorites and duplicates.
Supports two methods to share photos, share links to other NAS users or to friends and family. All shared albums have optional encryption to protect sensitive information.
Easily understand photo metadata as well as edit photo descriptions to make photo identification easier.
Easily find photos by keyword search.
Surveillance Center
Up to 25 channels in 720p on single live view display
On-screen camera controls including camera PTZ, manual recordings, take snapshots, configure camera settings and open Maps
Up to 4 channels of synchronous and non-synchronous playback with audio
Intelligent video analytics including motion detection and foreign object detection
Supported Browsers: Microsoft Edge, Firefox, Chrome
Event notification supports SMS, E-mail, and mobile push notification
Automated event action rules
Role-based access control
RTSP streaming server (video and audio)
AiSecure mobile app for iOS and Android with Push notification
ONVIF Profile S, T supported
CMS Lite supports connect up to 256 IP Cameras from 32 NAS
Two different camera license packages are offered: single channel and 4 channels.
Maximum IP Cam (4 Free Camera Licenses; Additional Licenses to be Purchased)
Minimum PC Client Requirements
- CPU: Intel i5/i7 or above
- RAM: DDR3 4G or above
- Operating system Windows 7 and onward
- Windows browsers: Microsoft Edge, Chrome, Firefox
- Display resolution: 1280x800 pixels or higher for best user experience
- Network interface: Gigabit x1
- Independent graphics card is highly recommend
SoundsGood
Import Personal/Public Music Collection
Personal/Public Music Collection Permission Control
Playlist Editor
ID3 Tag Editor
Local Speaker Support: HDMI, USB
Supported Audio Formats for Browser: MP3, WAV, Ogg
Supported Audio Formats for Transcoding Through Browser: AIFF, Flac
Supported Audio Formats for Local Speaker: MP3, WAV, Ogg, AIFF, Flac
ASUS DAC Support
Takeasy
Download from YouTube, Vimeo, Twitch and More
Selectable Video Type and Quality
Automatic Downloads with Twitch Subscriptions
Preview Downloads in Progress
Online Playback
UPnP Media Server
Supports PS3 and other Digital Media Player Capable Devices
Supports On-The-Fly Transcoding for Most RAW Images and Audio(OGG, FLAC)
Supported Image Formats: BMP, GIF, ICO, JPG, PNG, PSD, TIF, RAW Image (3FR, ARW, CR2, CRW, DCR, DNG, ERF, KDC, MEF, MOS, MRW, NEF, NRW, ORF, PEF, RAF, RAW, RW2, SR2, X3F)
VPN Client
Supported VPN Protocols: PPTP, OpenVPN, WireGuard VPN (ADM 4.2 Onwards)
Transmission Package Monitor
PPTP Authentication: PAP, CHAP, MS CHAP, MS CHAP2
PPTP Encryption: No MPPE, MPPE (40, 128 bit), Maximum MPPE (128 bit)
OpenVPN Port Control
OpenVPN Link Compression
VPN Server
Supported VPN Protocols: PPTP, OpenVPN, and L2TP/IPsec
View Current Connections & Ability to Disconnect Suspicious Connections
Comprehensive Connection Log
RADIUS Server
Centralized management of wireless network certification
Using WPA-Enterprise or WPA2-Enterprise encryption
Must be combined with a wireless router that supports RADIUS authentication
SNMP Server
Supports SNMP v1, v2c, v3 and trap
ASUSTOR NAS MIB provided
Syslog server
Supports standard syslog protocol
Graphical log monitoring by time and device
Supports TCP and UDP
Auto log archiving
User-defined email notification
AS5402T
The Best NAS 4 Flash
Hard Drives + Flash SSDs = The best of both worlds
- Quad-Core 10 nm Intel Celeron N5105 CPU
- 4x M.2 slots for NVMe SSDs
- 4 GB of DDR4-2933 RAM
- Dual 2.5-Gigabit Ethernet ports
- 3x USB 3.2 Gen 2 at 10 Gbps
- HDMI 2.0b
- Aesthetically pleasing M.2 SSD heat dissipation thermal vents
- Enjoy, download, upload and stream content with 4K transcoding
- Supports Wake on LAN and Wake on WAN
Enthusiast-Grade NAS with Entry-Level Pricing
Four M.2 slots for NVMe SSDs to accelerate volumes or assist in content creation
- Easy content creation and storage. Adobe certified
- Cross-platform live streaming and real-time backup of live streams with convenient editing
- Easy local and remote collaboration
ASUSTOR Storage with Adobe Creative Cloud
ASUSTOR is an official Adobe Partner for video and audio solutions
Packed Full of Value
Intel's all-new N5105 10 nm Quad-Core Celeron SoC at 2.0 GHz. With a boost frequency of up to 2.9 GHz, the powerful performance of the CPU ensures that working with the NAS is as smooth as butter while remaining affordable.
Upgradeable 4GB DDR4-2933 RAM
The AS54 comes with four Gigabytes of DDR4 RAM and can be upgraded up to 16GB. DDR4 RAM provides up to 30% greater performance than DDR3 while also lowering energy requirements by 40%.
End of the Road…for Gigabit Ethernet
2.5GbE is not the future. It's now. With 2.5GbE ubiquitous on enthusiast motherboards and available as an affordable USB adapter, the ubiquity of 2.5GbE makes all transfers fast. Break barriers even further by combining the dual 2.5-Gigabit Ethernet ports in SMB Multichannel to enjoy speeds exceeding 2.5 Gbps.
SMB Multichannel (RAID 1)
Windows sequential read and write
- 576 MB/S Read
- 566 MB/S Write
* Performance figures are achieved in the ASUSTOR lab using state of the art client computers under optimized network settings, and could vary in different environments. Ordinary desktop or notebook computers may be unable to reproduce these figures.
Best 4 Flash
The AS54 series is equipped with four M.2 slots for NVMe SSDs to accelerate tasks that require high random IO performance to save unbelievable amounts of time in applications that can take advantage of SSDs, such as content creation. Each M.2 slot for NVMe SSDs is tool-free for easier installation while the cooling vents ensure SSDs run at optimum performance.
All New Gaming-Inspired Theme for ADM
Take a look at the all new gaming-inspired elements brought to ADM.
USB 3.2 Gen 2 - Double Performance
The AS54 series upgrades the USB interface to USB 3.2 Gen 2x1. This means that the USB ports are up to twice the speed of the USB ports found on the previous generation of NAS devices at 10 Gbps. Plug in multiple expansion devices for extra storage or utilize the USB ports for backups and other peripherals for a truly custom experience.
Gaming-inspired looks
Aesthetic cooling vents:
Ensuring high-speed transmission of data on M.2 SSD while looking good.
Tool-free hard drives and SSDs:
Quickly install or replace hard drives and SSDs without tools.
Magnetic panel:
Dust resistant to ensure extra longevity of hard drives and internal components.
Store Games on an iSCSI Drive
A NAS's enormous capacity helps expand storage for a PC. According to modern operating systems, iSCSI drives appear as local drives and programs which cannot be installed on network shares may be installed. This enables certain games to be played from a NAS when they can't be run on a network share.
ASUSTOR Live
Your own streaming center. Stream your from a phone or tablet as well as a computer to multiple streaming platforms, Including, but not limited to Twitch, YouTube, Facebook, Instagram, Restream or RTMP compatible platforms. Unlike services like restream.io, ASUSTOR Live doesn't require fees to operate to stream to multiple platforms and channels which saves you money and streaming resources. Recordings can be safely saved to your NAS for future use.
Overwhelming 4K HDR Experience
The AS5402T features HDMI 2.0b with 10bit 4K hardware decoding, HEVC decoding and VP9 10bit Profile2 decoding for a smoother experience and lower CPU usage. Use Plex Pass or a third-party player to play 4K HDR videos.
Exclusive MyArchive Cold Backup Technology - Unlimited Capacity Expansion
MyArchive cold backup technology turns NAS hard disks into removable storage archives. Directly insert a MyArchive hard disk into the NAS to easily access, backup and share terabytes of content.
Protected From the Inside and Out
Protect your data from loss, damage and attacks with the ASUSTOR NAS. An ASUSTOR NAS is better protected by running the Linux-based ADM, employing a built-in firewall, ClamAV Antivirus, MyArchive and ADM's various backup tools help protect ransomware even better.
Network Attack Protection
- Firewall
- ADM Defender
- Cloud Backup Center offsite backups
Secure Data Transmission
- VPN connection
- SSL certificate connection
- Automatic logout
Internal Data
- AES-256 folder encryption
- Antivirus software
- MyArchive
Access Control
- File/folder/app isolation
- 2-Step Verification
- Wake-on-LAN (WOL)
- Wake-on-WAN (WAN)
Snapshot Center
Snapshot Center is a new feature for ASUSTOR NAS devices to utilize Btrfs and iSCSI volumes to take snapshots of the information inside a NAS. Snapshot Center supports up to 256 snapshots of a volume and can be done every five minutes, creating a backup that can be restored easily if data is damaged or lost.
MyArchive now supports Btrfs and snapshots. Btrfs for MyArchive supports snapshots and version history to help protect against accidental deletions or modifications.
DataSync Center
DataSync Center combines multiple cloud services into a single app. DataSync Center includes, but is not limited to Google Drive, Dropbox, OneDrive and Yandex and supports multitasking as well as multiple accounts. Control your data with instant and scheduled backups as well as using Cloud Backup Center to create a hybrid cloud that keeps your data online and offline, keeping your data protected.
Cloud Backup Center
Cloud Backup Center brings support for various business cloud services including, but not limited to Amazon S3, Backblaze B2, Baidu Cloud, IBM Cloud, Rackspace Cloud Files, Microsoft Azure Blob Storage, Alibaba Cloud, Google Cloud Storage, Box, hicloud S3, Lyve Cloud, SFTP and WebDAV. Control your data with instant and scheduled backups as well as using Cloud Backup Center to create a hybrid cloud that keeps your data online and offline, keeping your data protected.
Create the Ultimate Home Multimedia Center
Enjoy electrifying digital entertainment on demand with ASUSTOR NAS. Through ASUSTOR's App Central, you can install additional multimedia server Apps such as UPnP Media Server and OwnTone giving your NAS the ability to stream multimedia content to your computers, TVs and mobile devices.
SoundsGood + AiMusic
Photo Gallery 3 + AiFoto 3
LooksGood + AiVideos
Photo Gallery 3 + AiFoto 3
The all new Photo Gallery 3 and AiFoto 3 have been revamped and brings a variety of new features to make photo organization easier than ever. New features for Photo Gallery 3 include, but not are limited to custom folder selection, timelines, smart albums, deduplication, and new photo modes. Easily blow up photos to up to twice their size, play songs on slideshows, and customized share links make for an even better photo viewing and sharing experience.
Comprehensive Surveillance System
An ASUSTOR NAS provides optimal reliability for home and small business users looking to set up a surveillance system. Four free camera channels are offered, making it an extremely cost-effective surveillance solution for those looking to protect their home or small business. ASUSTOR provides each NAS with the capability to expand to more cameras for those with bigger demands. Up to 44 camera channels can be purchased through camera licenses. After installing Surveillance Center and its corresponding mobile app AiSecure, stream live surveillance feeds to virtually any internet-connected Android or iOS smartphone to keep an eye on your most valued assets from anywhere, inside or outside.
5 Steps 60 Sec
Setup your surveillance system in a flash
1 Start quick installation wizard
2 Automatic camera search
3 Add cameras with just one click
4 Configure video format
5 Configure recording schedule
Supports up to 44 camera channels
Portainer - Easy Docker Deployments
Even more possibilities for ADM with Portainer for Docker images. With thousands of images, Portainer can download and deploy more types of programs than ever before. Portainer is incredibly user friendly and employs a graphical interface to make docker images easier to deploy than ever.
Dr. ASUSTOR
ASUSTOR provides a holistic solution for protecting your data against a variety of threats using Dr. ASUSTOR. Dr. ASUSTOR helps protect your data from a variety of threats, including, but not limited to ransomware attacks.
Mobile Apps
ASUSTOR's exclusive EZ Connect technology allows you to connect to your NAS from anywhere with your Mobile device in order to access and share your files. ASUSTOR mobile apps provide pass code lock functions in order to protect your privacy and data. You can also make use of HTTPS connections for even more added security.
App Central
Unleash the unlimited potential of ASUSTOR NAS. The applications that come pre-installed with each ASUSTOR NAS device are just the beginning. At your convenience, you can browse through and download any applications that pique your interest from App Central. Whether your interests lie in business, website construction or even digital home entertainment, App Central has got you covered. With over 200 unique Apps, App Central provides you with the boundless variety of applications that you require to satisfy your digital lifestyle needs. Explore the unlimited potential of ASUSTOR NAS devices while creating a personalized NAS device for yourself.
Hardware Specifications
CPU
CPU Model
Intel Celeron N5105
CPU Architecture
x64 64-bit
CPU Frequency
Quad-Core 2.0GHz (burst up 2.90 GHz)
Memory
Memory
4GB SO-DIMM DDR4
Memory Module Pre-installed
4GB (1x 4GB)
Total Memory Slots
2
Memory Expandable up to
16GB (2x 8GB)
Support mixed capacity
Flash Memory
8GB eMMC
Storage
M.2 Drive Slots
4
Compatible Drive Type
3.5" SATA HDD
2.5" SATA HDD
2.5" SATA SSD
M.2 2280 NVMe
Maximum Drive Bays
2
Supports Hot Swappable Drives
Yes
External Ports
Expansion
3x USB 3.2 Gen 2x1
Network
2x 2.5 Gigabit Ethernet (2.5G/1G/100M)
Multimedia Output
1x HDMI 2.0b
Others
System Fan
1x 70mm
Infrared Receiver
Yes
Power Supply Unit / Adapter
65W x1
Input Power Voltage
100V to 240V AC
Certification
FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA
Operation
Power Consumption
22.9 W (Operation);
12.7 W (Disk Hibernation);
0.71 W (Sleep Mode)
Noise Level
18.6dB (HDD idle)
Operation Temperature
0°C~40°C (32°F~104°F)
Humidity
5% to 95% RH
Size and Weight
Size
170 (H) x 114 (W) x 230 (D) mm
Weight
1.71 kg / 3.77 lb
Software & Features
General Specifications
Supported OS
Windows 7, 8, 10, 11, Server 2008, Server 2012, Server 2016, Server 2019, Server 2022
macOS
UNIX, Linux, and BSD
Supported Languages
Deutsch, English, Français, Italiano, Nederlands, ???????, ???, ??, ????, ????, Ceská, Polski, Svenska, Dansk, Norsk, Suomi, Português, Türkçe, Español, Magyar, ???????
Supported Browsers
Firefox
Chrome
Safari
Microsoft Edge
Network
Network Protocols
CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog
Connection and transmission
TCP/IP (IPv4 & IPv6)
Link Aggregation: Supports 802.3ad and Six Other Modes for Load Balancing and/or Network Failover
Jumbo Frame (MTU)
VLAN
EZ Connect
Wireless Network
DDNS and EZ-Router
Supports Wake-on-LAN (WOL)
Supports Wake-on-WAN (WOW)
File Management & Sharing
File System
Internal Drive: EXT4 ,Btrfs
External Drive: FAT32, NTFS, EXT3, EXT4, HFS+, exFAT ,Btrfs
File Explorer
Web-based File Management
ISO File Mounting
Share Links
Task Monitor
Browse Files on Local PC
Thumbnail Previews
Data Access via External Optical Drive
Supports video playback
Network Recycle Bin
Share folder-based
Maintains original directory structure and file permission
On-click restore
Supports scheduled emptying
Filtering rules
1. File size
2. File extension
Deletion Settings
1. File size
2. File date
Storage management
RAID
Support Multiple Volumes with Spare Drives
Volume Type: Single, JBOD, RAID 0, RAID 1
Support for Online RAID Level Migration
iSCSI/IP-SAN
Maximum Targets: 256
Maximum LUNs: 256
Maximum Snapshot Versions of a Single LUN: 256
Target Masking
LUN Mapping
ISO File Mounting
Supports MPIO
Persistent (SCSI-3) Reservations
Disk Management
Scheduled Bad Block Scans
Scheduled S.M.A.R.T Scans
Access & Security
Access Control
Maximum Number of Users: 4096
Maximum Number of Groups: 512
Maximum Number of Shared Folders: 512
Maximum Number of Concurrent Connections: 512
Supports Windows Active Directory
Supports Windows Active Directory / LDAP
ACL
Provides both Windows ACL and Linux ACL permission configuration methods
Can enable Windows ACL for specific shared folders
Comprehensive support for Windows' 13 types of advanced permission settings
Can view Windows ACL permission settings from within ADM
Supports local users and groups
Exclusive permission reset function allows users to quickly restore default permissions
System Administration
Log Type: System Log, Connection Log, File Access Log
Real-time Online User Monitor
Real-time System Monitor
User Quota
Virtual Drive (ISO Mounting, Maximum 16)
UPS Support
Security
AES 256-Bit Encryption
Firewall: Prevent Unauthorized Access
Alert Notifications: E-mail, SMS
Encrypted Connections: HTTPS, FTP over SSL/TLS, SSH, SFTP, Rsync over SSH
Built-in Hardware Encryption Engine: AS10/11/31/32/33/40/52/53/54/6/61/62/63/64/65/66/67/70/71/FS67 Series
Network Defender
Auto black list
Trusted list
Black/White list
Supports IP/IP range/geolocation
Backup
Backup Solutions
Rsync (Remote Sync) Backup
Cloud Backup
FTP Backup
External Backup
One Touch Backup
EZ Sync
Snapshots
Btrfs Snapshots
256 snapshots
iSCSI LUNs
Support model: AS31/32/40/50/51/52/53/54/61/62/63/64/65/66/67/70/71/FS67. Snapshot Center will not display Volume snapshots information in other models.
Others
ASUSTOR Hightlight
System Migration
EZ Connect
Dr. ASUSTOR
2-way Backup
Task Monitor
Eco-Friendly Design
System Automatically Enters Sleep Mode (Schedule S3)
Auto-Standby for external drives
Auto Fan Control
LED Night Mode
Power Schedule: On, Off, Restart, and Sleep
Energy Control
Configurable Disk Hibernation and Sleep Mode Wait Time
Configurable Time Period for Sleep Mode Activation
Automatic Sleep
Featured Apps
Official ASUSTOR Apps
Antivirus (ClamAV)
Scheduled Scans
Automatic Virus Definition Updates
Quarantine Infected Files
ASUSTOR Portal(HDMI Local Output)
Support Firefox browser
Power Control Settings: Power on, Sleep, Restart and Wake via Remote
Customizable ASUSTOR Portal Desktop Wallpaper
Add Shortcuts to Favorite Websites
Increased TV Compatibility via Overscan and Resolution Settings
Maximum Resolution:
ASUSTOR Portal comes preloaded with Netflix and Youtube. Users can install the supplementary URL-Pack to get access to even more popular video streaming sites such as Plex, Vimeo and Youku.
After installing URL-Pack-Social, users will be able to choose between social media sites such as Facebook, Twitter, Linkedin, Pinterest, Hangouts, Telegram, Snapchat and Instagram.
VirtualBox
Virtual Machines are Able to run the Following Operating Systems: Windows, Linux, Solaris, macOS
Virtual Machine Import Format: OVF
Virtual Machine Export Format: OVF 0.9, OVF 1.0, OVF 2.0
Virtual Machine Snapshots
Physical NAS Network Port can be Designated for use by Specific Virtual Machine
Linux Center
Integrating NAS operating system with Linux
Easy installation with just one click
HDMI output on command
Download Center
Supports BT(Torrent & Magnet Link), HTTP and FTP Downloads
Torrent Search
Choose Files Before a BT Task Starts
Customizable Download Schedule
Bandwidth Control
RSS Subscription and Automatic Downloading (Broadcatching)
ASUSTOR Download Assistant for Windows & Mac
AiDownload for Android with Push Notification
Smart Download Function
Cloud Backup Center
Support Amazon S3, Backblaze B2, Microsoft Azure Blob Storage, Alibaba Cloud, Baidu Cloud, IBM Cloud and Rackspace Cloud Files, SFTP, WebDAV, Box, hicloud S3, Google Cloud Storage
Immediate or scheduled backup
Perform multiple backup tasks and back up multiple accounts
DataSync Center
Support OneDrive, OneDrive Business, Google Drive, Dropbox, and Baidu Wangpan,Yandex
Supports file filter and bandwidth limitation
Supported backup methods:
Sync
Directly upload files to Cloud from NAS
Directly download files from Cloud to NAS
FTP Explorer
Directory Structure View with Drag & Drop Transfers
Task Monitor
Stopping of Transmission Task & Resumption of Connection
Encrypted Connections: Explicit over TLS, Implicit over TLS
FTP Site Manager
Bandwidth Control
Maximum Simultaneous Transfer Control
HiDrive
Each ADM Account is Able to Individually Log in to One HiDrive Account
Supported Backup Methods:
- Directly Upload Files to HiDrive from NAS
- Directly Download Files from HiDrive to NAS
Supported Protocols:
- Rsync
- FTP
- FTPS
- SFTP
- Rsync + SSH
LooksGood
Built-in three main video library categories; movies, TV shows, home movies and smart video sorting management
Efficient global search function allows for searches by keywords followed by the execution of more detailed searches for the purpose of finding categories of movies, TV shows, home movies and parameters such as actors, director, year, genre, writer and title
Attractive poster wall and thumbnail display
Automatic production of video poster thumbnails
Centralized management and ability to configure order of favorites and playlist history
System administrator is able to configure video library and editing permissions according to user preferences
Can configure access permissions to share with friends and family
Multimedia conversion feature
Self-defined smart folder for video conversions
Easy Streaming with Chromecast and DLNA
Supports playback of videos in Apple TV via AiVideos tvOS version
Mail Server
Each ADM Account can Become an Independent Email Account
Email Activity Monitor (Over 1 Week, 1/3/6 Months)
Provides SMTP, IMAP and POP3 Mail Protocols
Supports SMTP Relay and Verification
SMTP-SSL Secure Connections
Spam Filter and Black List Settings
Antivirus Scanning for Emails
Email Alias Creation and Mapping
Monitoring of Mail Queue
Mail Service Activity Log
Exclusive Email Backup Mechanism
Auto-Forwarding and Auto-Response Protocols
Photo Gallery 3
Quickly find and view photos from a specific date in Photo Gallery 3's timeline.
Photo Gallery 3 sorts your photos in a smarter way. Smart albums found in Photo Gallery 3 include places, videos, recently added, favorites and duplicates.
Supports two methods to share photos, share links to other NAS users or to friends and family. All shared albums have optional encryption to protect sensitive information.
Easily understand photo metadata as well as edit photo descriptions to make photo identification easier.
Easily find photos by keyword search.
Surveillance Center
Up to 25 channels in 720p on single live view display
On-screen camera controls including camera PTZ, manual recordings, take snapshots, configure camera settings and open Maps
Up to 4 channels of synchronous and non-synchronous playback with audio
Intelligent video analytics including motion detection and foreign object detection
Supported Browsers: Microsoft Edge, Firefox, Chrome
Event notification supports SMS, E-mail, and mobile push notification
Automated event action rules
Role-based access control
RTSP streaming server (video and audio)
AiSecure mobile app for iOS and Android with Push notification
ONVIF Profile S, T supported
CMS Lite supports connect up to 256 IP Cameras from 32 NAS
Two different camera license packages are offered: single channel and 4 channels.
Maximum IP Cam (4 Free Camera Licenses; Additional Licenses to be Purchased)
Minimum PC Client Requirements
- CPU: Intel i5/i7 or above
- RAM: DDR3 4G or above
- Operating system Windows 7 and onward
- Windows browsers: Microsoft Edge, Chrome, Firefox
- Display resolution: 1280x800 pixels or higher for best user experience
- Network interface: Gigabit x1
- Independent graphics card is highly recommend
SoundsGood
Import Personal/Public Music Collection
Personal/Public Music Collection Permission Control
Playlist Editor
ID3 Tag Editor
Local Speaker Support: HDMI, USB
Supported Audio Formats for Browser: MP3, WAV, Ogg
Supported Audio Formats for Transcoding Through Browser: AIFF, Flac
Supported Audio Formats for Local Speaker: MP3, WAV, Ogg, AIFF, Flac
ASUS DAC Support
Takeasy
Download from YouTube, Vimeo, Twitch and More
Selectable Video Type and Quality
Automatic Downloads with Twitch Subscriptions
Preview Downloads in Progress
Online Playback
UPnP Media Server
Supports PS3 and other Digital Media Player Capable Devices
Supports On-The-Fly Transcoding for Most RAW Images and Audio(OGG, FLAC)
Supported Image Formats: BMP, GIF, ICO, JPG, PNG, PSD, TIF, RAW Image (3FR, ARW, CR2, CRW, DCR, DNG, ERF, KDC, MEF, MOS, MRW, NEF, NRW, ORF, PEF, RAF, RAW, RW2, SR2, X3F)
VPN Client
Supported VPN Protocols: PPTP, OpenVPN, WireGuard VPN (ADM 4.2 Onwards)
Transmission Package Monitor
PPTP Authentication: PAP, CHAP, MS CHAP, MS CHAP2
PPTP Encryption: No MPPE, MPPE (40, 128 bit), Maximum MPPE (128 bit)
OpenVPN Port Control
OpenVPN Link Compression
VPN Server
Supported VPN Protocols: PPTP, OpenVPN, and L2TP/IPsec
View Current Connections & Ability to Disconnect Suspicious Connections
Comprehensive Connection Log
RADIUS Server
Centralized management of wireless network certification
Using WPA-Enterprise or WPA2-Enterprise encryption
Must be combined with a wireless router that supports RADIUS authentication
SNMP Server
Supports SNMP v1, v2c, v3 and trap
ASUSTOR NAS MIB provided
Syslog server
Supports standard syslog protocol
Graphical log monitoring by time and device
Supports TCP and UDP
Auto log archiving
User-defined email notification
Allowances
As an international traveller you are entitled to bring a certain amount/value of goods that are free of Customs duty and exempt Goods and Services tax (GST) into New Zealand. This is called your duty free allowance and personal goods concession. It is important to review these for any purchases you make on The Mall.
Your duty free allowance entitles you to bring into New Zealand the following quantities of alcohol products free of customs duty and GST provided you are over 17 years of age. You do need to be 18 years or over to purchase.
- Up to six bottles (4.5 litres) of wine, champagne, port or sherry or
- Up to twelve cans (4.5 litres) of beer
- And three bottles (or other containers) each containing not more than 1125ml of spirits, liqueur, or other spirituous beverages
Goods other than alcohol and tobacco, whether purchased overseas or purchased duty free in New Zealand, that have a combined total value not exceeding NZ$700 may also be brought as part of your personal goods concession.
When travelling overseas there are legal limits on the amount of duty free alcohol and other goods you can take with you. These amounts will vary depending on the country you are flying into. We always recommend you check the latest limits and exemptions.
Click & Collect
Your order can be picked up at an Auckland Airport Collection Point. There is one in departures and one at arrivals in the international terminal. Alternatively, if you are arriving between 11pm and 6am you will be able to collect your order from our lockers. See map
Please bring your order confirmation email and your passport. If you are collecting from lockers you will have been sent an email with your access code, be sure to have this on you in order to collect your order.
If you’re departing Auckland Airport, we recommend that you come to the Auckland Airport Collection Point at least 60 minutes before your flight. If you miss your pickup time or your flight details have changed please let us know as soon as possible.
When you collect your order you will have the opportunity to inspect the items and sign for them.
If you need to return an item, our Collection Point team are there to help you. If you are collecting after hours please return the item to your locker and our team will be in touch as soon as possible. You may also like to view our Returns & refunds which provides information on how this works and outlines the individual retailer's returns and refunds policies.
After Hours Collections
If your order needs to be collected after the Auckland Airport Collection Point desk is closed, your order will be placed in the lockers next to the desk. All the details you will need to collect your order will be provided in your Order Confirmation and Ready to Collect Email.
