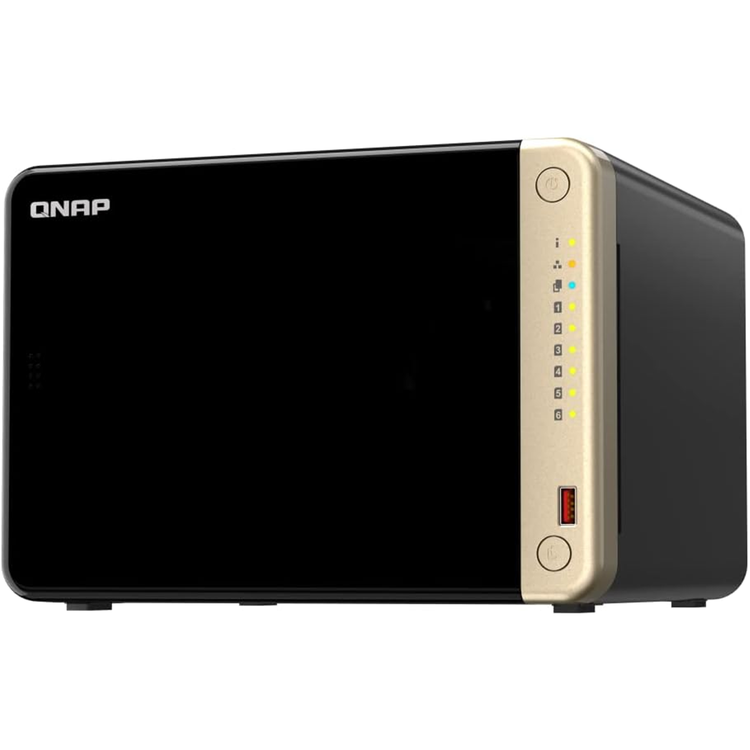

QNAP TS-664-8G Business Intel Quad Core Upto 2.9GHz, 8GB RAM, 6-Bay Desktop NAS Server,
Powered by an Intel® Celeron® N5105/N5095, quad-core processor (burst up to 2.9GHz), the TS-664 features two 2.5GbE RJ45 ports and Port Trunking for up to 5Gbps combined bandwidth. With M.2 PCIe Gen3 and PCIe Gen 3 slots, the TS-664 provides flexibility in extending NAS functionality, allowing you to install a QM2 card for M.2 SSD caching, or Edge TPU for AI image recognition and various 10GbE/5GbE network cards. The TS-664 comes with 4 GB RAM for running light VMs and Containers, and supports multi-cloud backup, cloud storage gateways, 4K HDMI output and real-time transcoding, alongside expandable storage capacity and feature-rich apps to perform as a cost-efficient, reliable 2.5GbE NAS.
2.5GbE connectivity
Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports.
M.2 SSD caching
Dual M.2 PCIe Gen 3 slots enable NVMe SSD caching or SSD storage pools for improved performance, or Edge TPU for AI image recognition.
PCIe expandability
Install a PCIe Gen3 x2 card to expand the core functionality of the TS-664, including a Multi-Gig 10GbE/5GbE/2.5GbE network card, a QM2 card, or a USB 3.2 Gen 2 (10Gbps) card.
License-free virtualized environment
Host multiple containerized apps to run a wide range of applications and services.
Drives Auto-Tiering
Qtier™ auto-tiering technology and SSD caching enable constant storage optimization.
4K HDMI
4K H.264 hardware decoding and real-time transcoding for smooth big screen multimedia experience.
CPU
Intel® Celeron® N5105/N5095 4-core/4-thread processor, burst up to 2.9 GHz
CPU Architecture
64-bit x86
Graphic Processors
Intel® UHD Graphics
System Memory
8 GB SODIMM DDR4 (1 x 8 GB)
Flash Memory
4GB (Dual boot OS protection)
Drive Bay
6 x 3.5-inch SATA 6Gb/s
Drive Compatibility
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable
Yes
M.2 Slot
2 x M.2 2280 PCIe Gen 3 x1
HDMI Output
1, HDMI 2.0
Form Factor
Tower
LED Indicators
Power/Status, LAN, USB, HDD1-6
Buttons
Power, USB copy, Reset
Dimensions (HxWxD)
168 × 235 × 226 mm
Weight (Net)
2.9 kg
Weight (Gross)
4.56 kg
Operating Temperature
0 ~ 40°C (32°F ~ 104°F)
Storage Temperature
-20 - 70°C (-4°F - 158°F)
Relative Humidity
5-95% RH non-condensing, wet bulb: 27°C (80.6°F)
Power Supply Unit
120W adapter, 100-240V
Power Consumption: HDD Sleep Mode
23.22 W
Power Consumption: Operating Mode, Typical
44.02 W
Fan
2 x 90mm, 12VDC
System Warning
Buzzer
