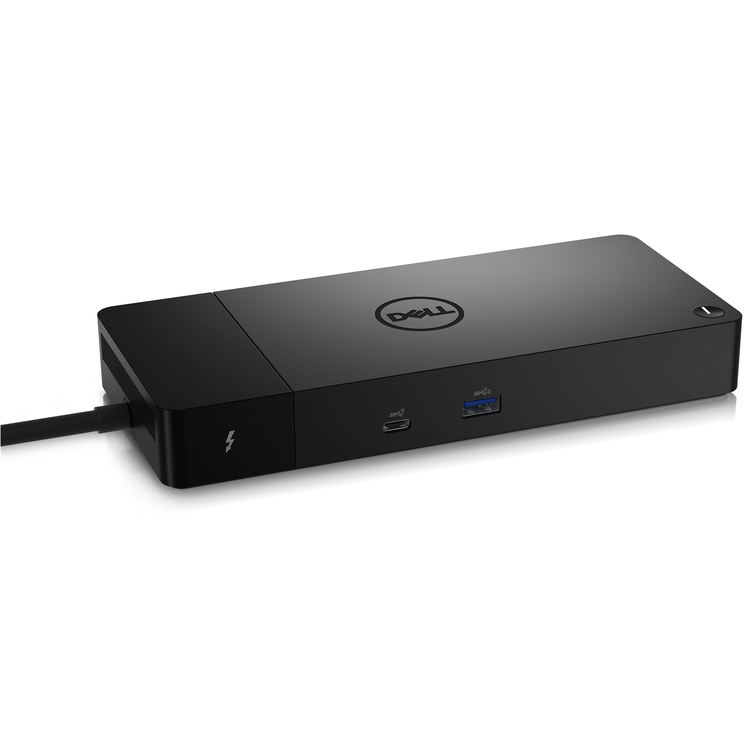

Dell WD22TB4 Thunderbolt 4 Quad 4K with 130W power delivery Docking Station,
ExpressCharge technology
You'll experience power delivery of up to 130W on Dell devices with ExpressCharge technologyi that enables:
80% charge in one hour?i
35% charge in just 20 minutesi
Future-made design
Swappable module lets you upgrade with ease to meet the needs of your IT environment.
Upgrade to get the latest in connectivity with not one but two Thunderbolt™ 4 ports for even more flexibility.
Multiply productivity
Connect displays and peripherals to your system with a single cable for ultimate productivity.
Thunderbolt™ 4 dock with the highest number of portsi connects multiple 4K displays and Thunderbolt peripherals allowing you to not compromise with your work setup. Get the maximum from your peripherals with data transfer of 40 GB/s.
Intelligent and simple management
Work without disruption: Firmware updates can be completed in five to seven minutes without needing to reboot the system.
Easier for IT: Dell Client Command Suite and Microsoft System Center Configuration Manager offers a smoother firmware update experience. You can also streamline deployment and management with a single firmware.
Easier upgrades: Modularity allows for simple field replacement of the power cable or connectivity module.
Better support: Inventory management got easier since each has its own service tag, allowing IT to push firmware updates only to certain dock.
Secure manageability: Keep your information safe with MAC Address pass-thru and remote port-disablement. Plus, with features like PXE Boot, Wake-on-LAN, and more, it's easier than ever to stay productive while managing your dock.
Industry standard compatibility
Dell Thunderbolt™ Dock - WD22TB4 offers wide compatibility across Dell Commercial laptops. It is is also compatible with notebooks from other manufacturers which support industry standards for Thunderbolt™ docking. For functional limitations with notebooks from other manufactures in comparison to Dell Commercial notebooks, please see this support article.
Dell docking compatibility guide
Connectivity OptionsPorts & Slots:
1. USB-C 3.2 Gen 2
2. USB-A 3.2 Gen 1 with PowerShare
3. DisplayPort 1.4 (2)
4. HDMI 2.0
5. USB-C Multifunction DisplayPort
6. USB-A 3.2 Gen 1 port (2)
7. Gigabit Ethernet RJ45
8. Power In
9. Thunderbolt™ 4 (2)
For technical detail, please refer to:
https://www.dell.com/support/kbdoc/en-us/000124312/dell-thunderbolt-dock-wd19tb-and-apple-usb-c-hosts
Tech Specs
General
Product Type
Docking stationWidth
8.1 inDepth
3.5 inHeight
1.1 inWeight
15.87 oz
Video
Max Resolution Details
5120 x 2880 - 60 Hz
Networking
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Expansion / Connectivity
Interfaces
2 x display / video - DisplayPort - 20 pin DisplayPort
1 x display / video - HDMI - 19 pin HDMI Type A
1 x USB-C / DisplayPort
3 x USB 3.2 Gen 1 - 9 pin USB Type A
2 x USB-C 3.2 Gen 2
1 x network - Ethernet 1000 - RJ-45
Miscellaneous
Features
Security lock slot (cable lock sold separately)Security Slot Type
Noble Wedge security slot / Kensington security slotCompliant Standards
DisplayPort 1.4
Power
Power Device
Power adapterVoltage Required
AC 120/230 V (50/60 Hz)Power Provided
180 Watt
System Requirements
OS Required
Windows 10, Windows 11, Ubuntu 20.04 or later
