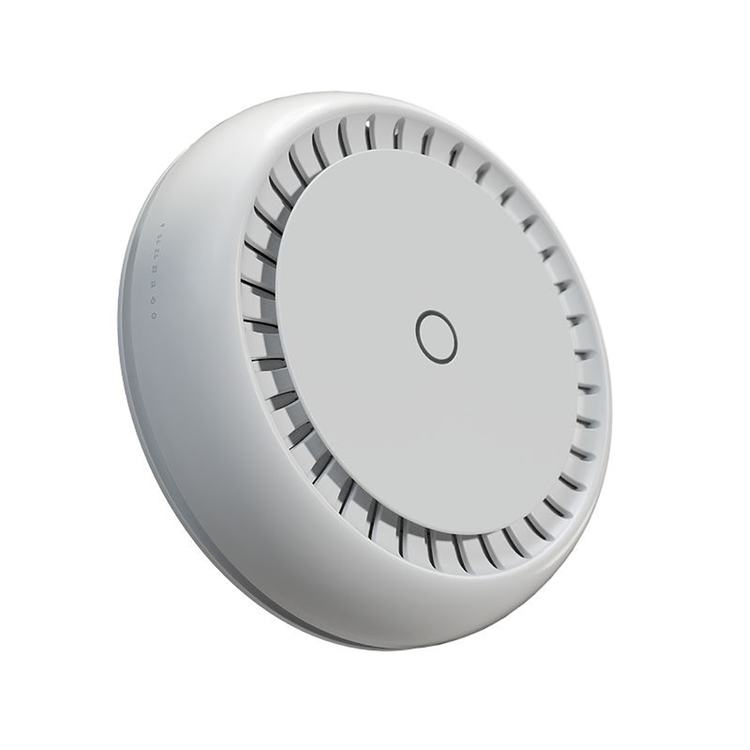

MikroTik RBcAPGi-5acD2nD-XL cAP XL ac Long Range Dual Band 802.11ac Ceiling Mount Access Point
MIKROTIK CAP XL AC LONG RANGE DUAL BAND 802.11AC CEILING MOUNT ACCESS POINT
MikroTik cAP XL ac Long Range Dual Band 802.11ac Ceiling Mount Access Point. Need a nice-looking high power access point that won't get in your way? Or perhaps you're managing the network in a crowded place and don't want everyone to have physical access to the device? Either way - ceiling is the answer! The device itself is pretty sleek - the low profile attracts less attention than a smoke detector. Your clients, guests, or colleagues won't even notice it. But they will definitely notice the blazing fast wireless connection all across the premises.
The new design features a larger high-gain antenna, higher sensitivity, and a built-in reflector. These improvements allow increasing the covered area by up to 100%, compared to the previous cAP models!
The dual-band, dual-chain 2.4 and 5 GHz wireless radio provides a strong coverage in 360 degrees around it, so you don't have to worry about the placement of the device so much. Putting it on the ceiling eliminates many signal absorption problems, such as the signal being blocked by large TV sets, metal cubicle walls in open space offices, etc.
Even though the radio supports repeater mode, the two Gigabit Ethernet ports give you the ability to extend your network with cables, even if PoE power is required: the cAP XL ac supports 802.3af/at PoE input on the first port and passive PoE output (up to 57V) on the second port.
https://youtu.be/W7aAOpmC1bo
Features
- Large high-gain 6dBi antenna
- Higher sensitivity to -100 dBm
- Built-in reflector for longer range
- 360 degree coverage
Architecture
ARM 32bit
CPU
IPQ-4018
CPU core count
4
CPU nominal frequency
716 MHz
RouterOS license
4
Operating System
RouterOS
Size of RAM
128 MB
Storage size
16 MB
Storage type
FLASH
MTBF
Approximately 100'000 hours at 25C
Tested ambient temperature
-40°C to 70°C
Wireless 2.4 GHz number of chains
2
Wireless 2.4 GHz standards
802.11b/g/n
Antenna gain dBi for 2.4 GHz
6
Wireless 2.4 GHz chip model
IPQ-4018
Wireless 2.4 GHz generation
Wi-Fi 4
Wireless 5 GHz number of chains
2
Wireless 5 GHz standards
802.11a/n/ac
Antenna gain dBi for 5 GHz
5.5
Wireless 5 GHz chip model
IPQ-4018
Wireless 5 GHz generation
Wi-Fi 5
AC speed
AC1200
10/100/1000 Ethernet ports
2
Number of 1G Ethernet ports with PoE-out
1
Number of DC inputs
1 (PoE-IN)
Max power consumption
24 W
Max power consumption without attachments
11 W
FAN count
Passive
PoE in
802.3af/at
PoE in input Voltage
18-57 V
PoE-out ports
Ether2
PoE out
Passive PoE up to 57V
Max out per port output (input 18-30 V)
500 mA
Max out per port output (input 30-57 V)
330 mA
Max total out (A)
500 mA
Certification
CE, FCC, IC, EAC, ROHS
Mode button
Yes
