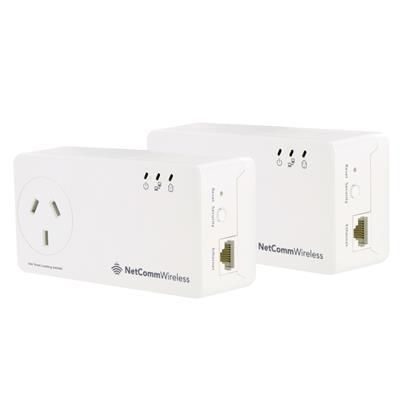

500Mbps Powerline Kit with AC Pass-through
Transform your existing electrical wiring into a high-performance online network capable of supporting today's most bandwidth-intensive activities. With the 500Mbps Powerline Kit with AC Pass-through, all you need is an available power point to create a high speed Internet connection in any room of the house. Enjoy high-definition streaming, multimedia and online gaming in any area of the home.
Lightning fast Powerline
A 500Mbps data signal is transmitted between the adapters over Powerline to create an instant access point for bandwidth-intensive devices such as HD-TVs, gaming consoles and Blu-ray players. Simply connect your devices directly to the Ethernet ports for a powerful broadband connection in any room.
Connect with Ethernet
Connect any Ethernet enabled device to your Powerline Adapters to give it instant access to your online network. Perfect for devices such as gaming consoles, TVs and other items that are generally fixed in one location.
Simply plug and play
The user-friendly 500Mbps Powerline Adapters work straight out of the box so you can focus on enjoying your online active ties. With no setup required, simply connect the adapters to power and you're connected.
PACKAGE INCLUDES
2 x Powerline Adapters with AC Pass Through
2 x Ethernet Cables (RJ-45)
Printed Quick Start Guide
Warranty Card
MINIMUM SYSTEM REQUIREMENTS
- Modem Router
- Active Internet Connection
- Available Power Sockets
- Computer or network device with a free Ethernet port
DATA TRANSFER RATE
Up to 500Mbps over Powerline
RANGE
Up to 300m over Powerline
SECURITY
128-bit AES Encryption (enabled with Simple Connect button)
EXTERNAL CONNECTORS
1 x 10/100 Ethernet LAN port
1 x Reset button
1 x Security push button
1 x Filtered AC pass-through socket
LED INDICATORS
1 x Bicolour Power LED
1 x Bicolour Powerline Link/Activity Status LED
1 x Bicolour Ethernet Link/Activity Status LED
POWERLINE FILTERING
Filtering at frequency band 2MHz to 68MHz
Filter characteristics: -25dB to -45dB
POWER SUPPLY
AC 220-240V 50-60Hz
CERTIFICATIONS
RCM
SAA111557EA
MAIN CHIPSET
Powerline:
Atheros AR7420 chipset
STANDARDS
Powerline:
IEEE 1901/HomePlug AV
Ethernet:
IEEE 802.3 10/100 Mbps Auto MDI/MDIX
Compliant to EuP
MODULATION SUPPORT
Powerline:
OFDM 4096/1024/256/64/16/8 QAM, QPSK, BPSK and ROBO
ENVIRONMENTAL
Operating:
00C to 400C
Non-Operating:
-200C to 700C
Operating:
10% to 90% Relative Humidity (Non-Condensing)
Non-Operating:
5% to 90% Relative Humidity (Non-Condensing)
MEASUREMENTS
Dimensions
56 mm x 112 mm x 47 mm
Weight
155g
