be quiet Straight Power 12 Platinum 750W Power Supply

Product Id PSUBQT61100
Traveller Price
Price: $274.54 NZD
Tax free price for international travellers
Product Id PSUBQT61100
View all Be QuietSold by PB Tech
Description

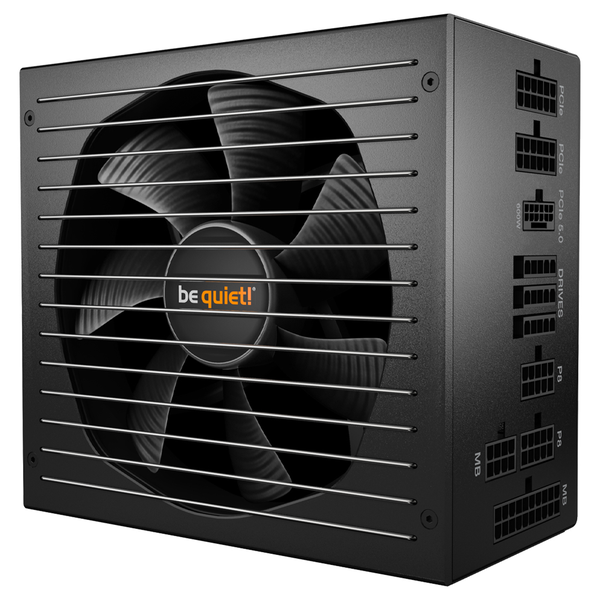

be quiet Straight Power 12 Platinum 750W Power Supply

Straight Power 12 - 750W
World Class Quiet and Efficiency
Straight Power 12 is a future-proof ATX 3.0 power supply with 80 PLUS® Platinum certification and virtually inaudible operation.
- 80 PLUS Platinum efficiency (up to 93.8%)
- ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectors
- Handles massive power excursions
- Virtually inaudible Silent Wings 135mm fan
- Funnel-shaped fan opening on PSU case for high airflow intake
- Full bridge LLC technology for unmatched signal stability
- One massive high-performance 12V-rail
- Japanese 105°C capacitors ensure highest stability and reliability
- Modular cable management for maximum convenience
80 Plus® Platinum Certified - Highly Efficient Operation
Straight Power 12 750W is certified with 80 PLUS Platinum and an energy efficiency rating of up to 93.8%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation.


Future-Proof Your System - Fulfils All ATX 3.0 Specifications
Straight Power 12 750W is an ATX 3.0 PSU and comes with both native integration of the 12VHPWR connector for next-generation PCIe 5.0 graphics cards, and 4 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.


The New Standard of Power - For Massive Transient Loads
Straight Power 12 offers 750W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Straight Power 12 750W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.


Silent Wings Fan - Provides Virtually Inaudible Operation
The high-end Silent Wings fan delivers best-of-class airflow yet produces very little noise. This is thanks to its unique, optimized fan blade design along with an advanced fluid-dynamic bearing and 6-pole fan motor that largely eliminates operational noise, has a super-long life and minimal power consumption.


Flawless Cooling Concept - For a Longer Lifespan
The funnel-shaped fan inlet of the Straight Power 12 750W increases airflow while reducing unwanted turbulence for a higher cooling performance. The wire-free design inside allows the cool air to reach all components which ultimately leads to a longer lifespan.


State-of-the-Art Technologies - Rock-Steady Signal Stability and Efficiency
With full bridge LLC Straight Power 12 750W offers advanced technologies, resulting in higher efficiency, better regulation and lower ripple noise for an incomparably stable operation.


Japanese 105°C Capacitors - A Testament to High Quality
Only premium components are used in Straight Power 12 750W. That is why this PSU features exclusively high-quality Japanese capacitors. They are rated at 105°C for stability, reliability, and a long operating life.


Convenience and Connectivity - Maximum Utility
Modular, sleeved cables of up to 100cm in length simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling - even in the largest PC cases.

General Data

Model Number
BN731

Model
Straight Power 12 750W

Continuous Power (W)
750

Peak Power (W)
820

Form Factor
Version 3.0

Form Factor EPS 12V
Version 2.92

Topology
Full bridge + LLC + SR + DC / DC

Voltage (Vac)
100 - 240

Frequency (Hz)
50 - 60

Input Current (A)
10 / 5

Power Factor at 100% Load
>0.99

Modern Standby
Yes

Power Consumption in Standby (W)
<0.15

Average Life Time (h / 25°C)
>100,000

Operating Temperature Up to (°C)
40
Efficiency

80 Plus Certification
Platinum

Efficiency (%) at 230V, 2% Load
65.0

Efficiency (%) at 230V, 10% Load
88.3

Efficiency (%) at 230V, 20% Load
92.6

Efficiency (%) at 230V, 50% Load
93.8

Efficiency (%) at 230V, 100% Load
92.9
Fan and Cooling Technology

Fan
Silent Wings

Fan Size (mm)
135

Bearing Technology
FDB

Motor Technology
6-pole fan motor

Max. Fan Speed (rpm)
1800

dB(A) at 10% Load
7.8

dB(A) at 20% Load
7.8

dB(A) at 50% Load
7.9

dB(A) at 100% Load
20.8
Output

12V Single Rail Operation
Yes

+3.3V (A)
25

+5V (A)
25

+12V1 (A)
62.5

-12V (A)
0.3

+5Vsb (A)
3

Max. Combined Power 12V (W)
750

Max. Combined Power 12VHPWR (W)
600

Max. Combined Power 3.3V + 5V (W)
130

Hold-Up Time at 100% Load (ms)
24.8

Power Good Signal (ms)
100 - 150
Cables and Connectors

Modular Cables
Yes

Sleeved Cables
Yes

Maximum Cable Length (cm)
100

Cable Length to Motherboard (cm)
60

No. of Cables
9

ATX-Motherboard (20+4-Pin)
1

P4+4 (CPU)
1

P8 (CPU)
1

12VHPWR Cables
1

PCI-e 6+2-pin (GPU)
4

SATA
9

PATA
2
Protection

OTP (Over Temperature Protection)
Yes

OCP (Over Current Protection)
Yes

OPP (Over Power Protection)
Yes

SCP (Short Circuit Protection)
Yes

OVP (Over Voltage Protection)
Yes

UVP (Under Voltage Protection)
Yes

SIP (Surge & Inrush Protection)
Yes
Safety Certification

BSMI
Yes

CB
Yes

CCC
Yes

CE
Yes

cTUVus
Yes

CU
Yes

FCC
Yes

RCM
Yes

TÜV
Yes

UKCA
Yes
Environmental Directives

Energy Star
8

ErP
Yes

WEEE
Yes

RoHS
Yes

Triman
Yes
Scope of Delivery

Screws
Yes

Cable Ties
Yes

User Manual Languages
CN, DE, EN, ES, FR, JP, PL, RU, TW, KR
Casing

Dimensions without Cable (L x W x H), (mm)
160 x 150 x 86

Weight (kg)
1.76

Colour
Black
