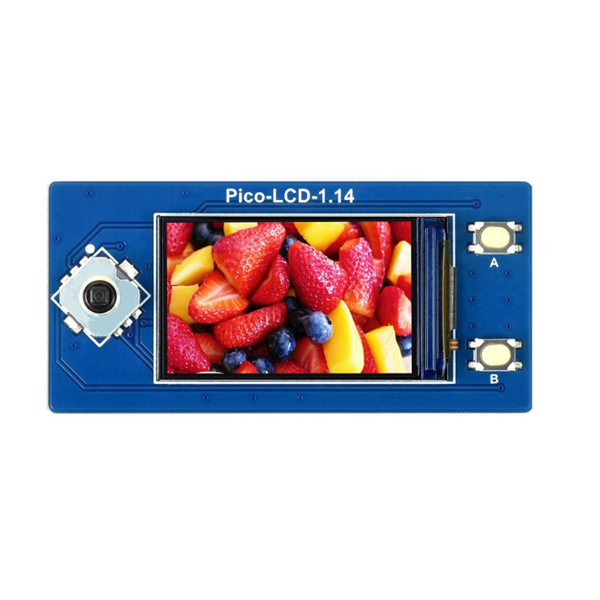

Raspberry Pi Display 1.14inch LCD for Raspberry Pi Pico, 65K Colors, 240 x Module
NOTE: Raspberry Pi Pico is NOT included. The pictures are for reference ONLY.
1.14inch LCD Display Module For Raspberry Pi Pico, 65K RGB Colors, 240×135 Pixels, SPI Interface.
Features:
- 240×135 resolution, IPS screen, 65K RGB colors, clear and colorful displaying effect
- SPI interface, requires minimal IO pins
- 4 x user buttons for easy interacting
LCD and the controller:
- The ST7789VW is a single-chip controller/driver for 262K-color, graphic type TFT-LCD. It consists of 240 source line and 320 gate line driving circuits. The resolution of this LCD is 135(H)RGB x 240(V), it supports horizontal mode and vertical mode, and it doesn't use all the RAM of the controller.
- This LCD accepts 8-bits/9-bits/16-bits/18-bits parallel interface, that are RGB444, RGB565, RGB666. The color format used in demo codes is RGB565.
- This LCD uses a 4-line SPI interface for reducing GPIO and fast speed.LCD
Working Protocol:
Note: Different from the traditional SPI protocol, the data line from the slave to the master is hidden since the device only has a display requirement.
- RESX Is the reset pin, it should be low when powering the module and be higher at other times;;
- CSX is slave chip select, when CS is low, the chip is enabled.
- D/CX is data/command control pin, when DC = 0, write command, when DC = 1, write data
- SDA is the data pin for transmitting RGB data, it works as the MOSI pin of SPI interface;
- SCL work s the SCLK pins of SPI interface.
- SPI communication has data transfer timing, which is combined by CPHA and CPOL.
- CPOL determines the level of the serial synchronous clock at an idle state. When CPOL = 0, the level is Low. However, CPOL has little effect on the transmission.
- CPHA determines whether data is collected at the first clock edge or at the second clock edge of the serial synchronous clock; when CPHL = 0, data is collected at the first clock edge.
- There are 4 SPI communication modes. SPI0 is commonly used, in which CPHL = 0, CPOL = 0.
User Guides, Resoures, please check HERE
Operating voltage
2.6 ~ 5.5V
Communication Interface
4-wire SPI
Display Panel
IPS
Driver
ST7789
Resolution
240×135 pixels
Display size
24.91 × 14.86mm
Pixel size
0.1101 × 0.1035mm
Dimensions
52.00 × 25.00mm
