DGS-105 5-Port Gigabit
An Unmanaged Desktop Switch that offers an economical way for SOHO and small and medium businesses to benefit from the increased bandwidth of Gigabit Ethernet. It provides five Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity.
Effortless Gigabit Networking

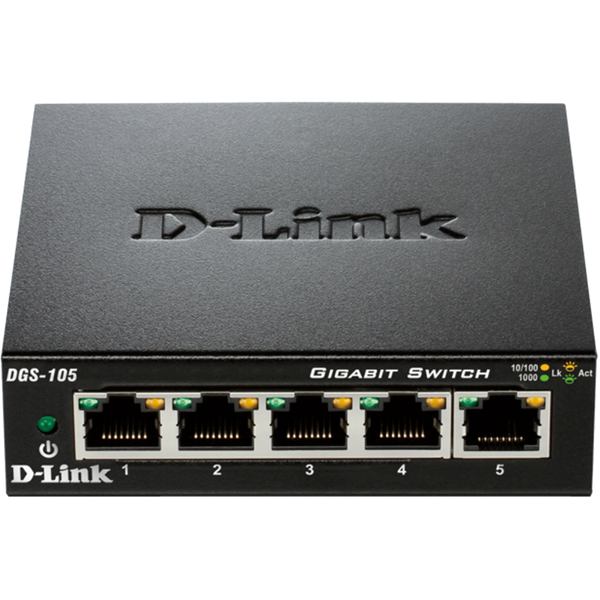

With data transfer speeds of up to 2000 Mbps on Gigabit Ethernet, the D-Link DGS-105 is ideal for transferring files quickly and online gaming. The DGS-105 features front, easy-to-access Ethernet ports with two colour LED indicators per port to easily distinguish link status. The switch features QoS, which organizes and prioritizes time-sensitive and important data for efficient delivery, allowing for smooth streaming media, VoIP calling, and online gaming. Additionally the switch features a Kensington Security Slot on the rear panel where users can fasten the unit to a table or desk.
Think Green
The DGS-105 is a plug-and-play networking switch that features D-Link's Green Technology to save energy and reduce heat, which in turn extends product life without sacrificing performance or functionality. The switch supports IEEE 802.3az Energy-Efficient Ethernet (EEE) which can detect when a connected computer is shut down or when there is no Ethernet traffic, and will proceed to power down the idle port, saving a substantial amount of power. In addition, the switch can also save energy by detecting the length of cable connected to a port and use only as much power as is required. Both of these features work together to help you save power automatically.
Environmentally Friendly
The switch was designed with the environment in mind. It is compliant with Energy Star Level V, CEC, and MEPS regulations which require the use of energy efficient power adapters. The switch is built to comply with RoHS standards to minimize use of hazardous materials and is packaged with an EnergyStar Level V qualified power adapter in a recyclable packaging making this product truly environmental friendly.
IEEE 802.1p QoS
QoS prioritizes network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic. This helps ensure an optimal experience for streaming media, VoIP calls, and online gaming.
Cable Diagnostics Function
The D-Link Cable Diagnostics Function enables users to be instantly aware of cable conditions through the LED display on the front-panel. Users can determine whether the pin connections of their cable connectors are correct, facilitating prompt network troubleshooting if required.
Device Interfaces
5x 10/100/1000BASE-T ports
Standards
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3x Flow Control
IEEE 802.1p QoS
IEEE 802.3az Energy-Efficient Ethernet (EEE)
Media Interface Exchange
Auto MDI/MDIX adjustment for all ports
Transmission Method
Store-and-forward
Data Transfer Rates
Ethernet:
10 Mbps (half-duplex)
20 Mbps (full-duplex)
Fast Ethernet:
100 Mbps (half-duplex)
200 Mbps (full-duplex)
Gigabit Ethernet:
2000 Mbps (full-duplex)
Packet Filtering/Forwarding Rates
Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port
Gigabit Ethernet: 1,488,000 pps per port
MAC Address Table
2K entries
MAC Address Learning
Automatic update
RAM Buffer
128 KB
Dimensions
100 x 98 x 28 mm (3.93 x 3.86 x 1.10 inches)
Weight
267 grams (0.59 lbs)
Power
5 V/1 A
Power Consumption
Powered on (standby)
DC input: 0.3 W
AC input: 0.3 W
Maximum:
DC input: 1.85 W
AC input: 3.10 W
Temperature
Operating: 0 to 45 °C (32 to 104 °F)
Storage: -10 to 70 °C (14 to 158 °F)
Humidity
Operating: 0% to 95% non-condensing
Storage: 0% to 95% non-condensing
MTBF
604,194 hours
Heat Dissipation
Maximum: 6.31 BTU/h
L2 Features
IGMP Snooping
