Overview

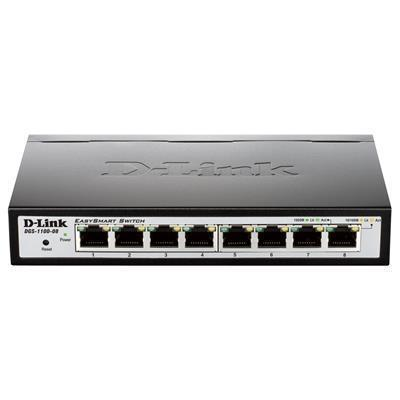

D-Link’s DGS-1100 Series EasySmart Switches provide an affordable solution for SOHOs, small/medium-sized businesses, as well as enterprise deployments, such as in branch offices that require simple network management. The DGS-1100 Series consists of 5, 8, 16, and 24 10/100/1000Mbps port models. The 5 and 8 port models come in a compact desktop enclosure, while the 16 and 24 port models come in a compact 11” desktop/rackmount enclosure. Two versions of the 8-port model are available – with and without Power-over-Ethernet (PoE) support. Compliant with IEEE802.3az Energy Efficient Ethernet, these switches consume less power during idle periods. They also implement D-Link Green features that detect link status and cable length and adjust power usage accordingly. Switch management can be performed through a web management interface or through the SmartConsole Utility. The DGS-1100 Series also supports Layer 2 features such as IGMP Snooping to optimize performance for multicast applications. A fanless design allows for quieter operation and provides a longer product life.
Auto Surveillance VLAN and Bandwidth Control
The DGS-1100 Series supports Auto Surveillance VLAN, which is best suited for video surveillance deployment. Auto Surveillance VLAN is a new, industry leading technology that consolidates data and surveillance video transmission through a DGS-1100 switch, thus sparing businesses the expense of dedicated hardware and facilities. Auto Surveillance VLAN also ensures the quality of real-time video for monitoring and control without compromising the transmission of conventional network data. In addition, with Bandwidth Control, network administrators can reserve bandwidth for important functions that require more bandwidth or high priority.
PoE Support
The DGS-1100-08P delivers Power-over-Ethernet capabilities, simplifying deployments with IP cameras, VoIP phones, wireless access points, and other powered devices. The DGS-1100-08P complies with the 802.3af standard for PoE, and supports a 64W power budget. Using the product’s management interface, an administrator can control various PoE functions, such as remotely rebooting cameras or access points, from anywhere on the network, including over the Internet.
D-Link Green/Power Saving Performance
Compliant with IEEE802.3az Energy Efficient Ethernet, these switches consume less energy by cutting down on power consumption when the traffic volume is low. By deploying EEE devices, users can cut operating costs and even cut down on necessary cooling equipment, helping small and medium sized businesses stay within their budgets. The DGS-1100 Series also features D-Link Green Technology that helps in automatically saving energy. The switches automatically detect the length of the connected cables and can adjust power usage for shorter cable connections of up to 20 meters. In addition, the switches monitor link status of every port and drastically reduce power consumption when a port is without a link.
Easy to deploy
The DGS-1100 EasySmart Switches support an intuitive SmartConsole utility and a web-based management interface that enables administrators to remotely control their network down to the port level. The SmartConsole allows customers to discover multiple D-Link Smart and EasySmart Switches within the same L2 network segment. With this utility, users do not need to change the IP address of their PC, and this makes initial setup of the Smart Switches quick and easy. Switches within the same L2 network segment that are connected to the user’s PC are displayed on-screen for instant access. This allows for extensive switch configuration and basic setup of discovered devices, including password changes and firmware upgrades.
Easy Troubleshooting/Security
Network maintenance features include Loopback Detection and Cable Diagnostics. Loopback Detection is used to detect loops created by a specific port and automatically shuts down the affected port. Cable Diagnostics is designed for network administrators to quickly examine the quality of the copper cables and also determine the type of cable error. In addition, Static MAC can disable Auto Learning on selected ports and can set static MAC addresses for designated ports, helping administrators limit network access to authorized devices only.
Technical Specifications
General
Port Standard & Functions
• IEEE 802.3 compliant
• IEEE 802.3u compliant
• IEEE 802.3ab compliance
• Supports Half/Full-duplex operation at 10/100Mbps
• Supports Full-duplex operation at 1000Mbps
• Supports Auto-Negotiation for each port
• Auto MDI/MDIX
• IEEE 802.3x Flow Control support
• IEEE 802.3az compliant
Number of Ports
• 8
Performance Switching Capacity
• 16Gbps
Max. Forwarding Rate
• 11.9 Mpps
MAC Address Table Size
• 8K Entries
Packet Buffer
• 2Mbits
Forwarding Mode
• Store and Forward
Physical & Environmental
Power Input
• 100 to 240 VAC, 50 to 60 Hz
• External Universal Power Supply
Max. Power Consumption
• 7.88 Watts
Standy Power Consumption
• 2.00 Watts
Fan Quantity
• Fanless
Acoustics
• 0 dBA
Heat Dissipation
• 268.87 BTU/hr
Operating Temperature
• 32 to 122 °F (0 to 50 °C)
Storage Temperature
• 14 to 158 °F (-10 to 70 °C)
Operating Humidity
• 10% to 95% non-condensing
Storage Humidity
• 5% to 95% non-condensing
Dimensions (W x D x H)
• 7.4” x 4.7” x 1.1” (190mmx120mmx28mm)
Weight
• 1.6lbs (0.71kg)
Diagnostic LEDs
• Power (Per Device)
• PoE Max.
• Link/Activity/Speed (Per Port)
Certifications
• FCC Class A
• CE Class A
• VCCI Class A
Safety
• UL/cUL
• CE LVD
MTBF
• 708.219 Hours
Power over Ethernet
PoE Standard
• 802.3af
PoE Capable Ports
• Ports 1-8
PoE Power Budget
• 64W
Software Features
VLAN
• Port-based VLAN
• 802.1Q Tagged VLAN
• Surveillance VLAN
• Voice VLAN
• Management VLAN
• VLAN Group
• Supports 32 static VLAN groups
• Max. 4094 VIDs
L2 Features
• Flow Control
• 802.3x Flow Control
•- HOL Blocking Prevention
• IGMP Snooping
• IGMP v1/v2 Snooping
• Supports 32 Groups
• Loopback Detection
• Link Aggregation
• 2 groups, 2-4 ports per group
• Port Mirroring
• One-to-One
• Cable Diagnostics
• Statistics
• Tx Ok
• Tx Error
• Rx Ok
• Rx Error
QoS
• 802.1p Quality of Service
• 4 queues per port
• Queue Handling
• Strict
• Weighted Round Robin (WRR)
• Bandwidth Control
• DGS-1100-05/08/08P Port Based (Ingress/Egress, min. granularity 8 kb/s)
• DGS-1100-16/24: Port Based (Ingress/Egress, min. granularity 64 kb/s)
Security
• Static MAC Address
• Max. 32 entries
• Broadcast/Multicast/Unknown Unicast Storm Control
Management
• Web-Based GUI (Supports IPv4)
• Smart Console Utility
D-Link Green
• Power Saving by
• Link Status
• Cable Length
• Energy Efficient Ethernet (IEEE 802.3az)
• RoHS Compliant
RFC Standard List
• RFC 768 UDP
• RFC 791 IP
• RFC 792 ICMP
• RFC 793 TCP
• RFC 826 ARP
• RFC 951 BootP Client
• RFC 1542 BootP/DHCP client
• RFC 1945 HTTP/1.0
• RFC 2647 802.1p
Warranty
Warranty
• Limited Lifetime
