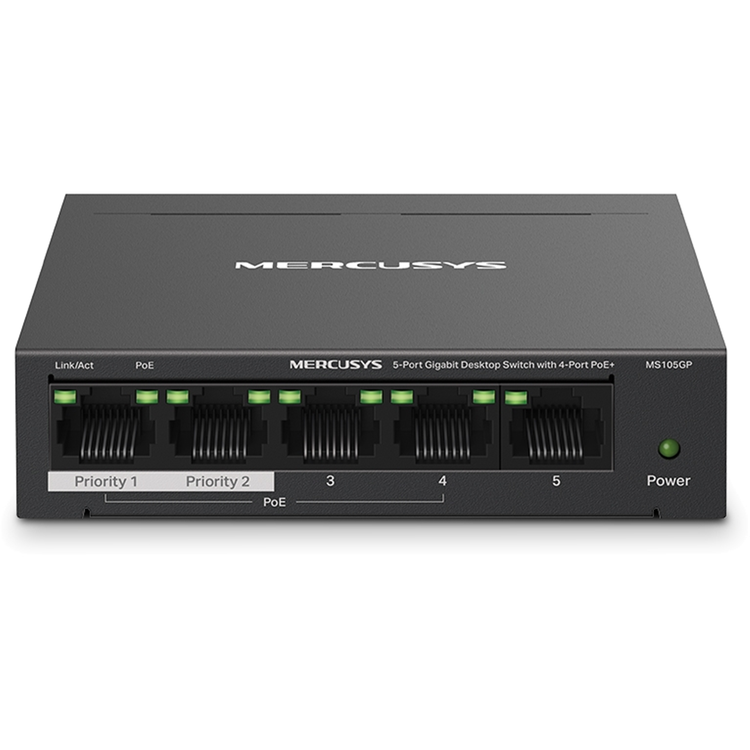

Mercusys MS105GP 5-Port Gigabit Desktop Switch with 4-Port PoE+ (Max 65W),
MS105GP
5-Port Gigabit Desktop Switch with 4-Port PoE+
- Full Gigabit Ports: 5× 10/100/1000 Mbps RJ45 ports
- Two Cables in One: With four PoE+ ports, transfers data and power on one single cable
- High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
- Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*
- Isolation Mode: One click to divide traffic for specific ports for stability and security
- Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
- Durable Metal Casing: Allows for efficient heat dissipation and long network life
- Plug and Play: Simple to use and saves time and effort
5-Port Gigabit Desktop Switch with 4-Port PoE+
MS105GP
- Long-Range up to 250 m
- Silent Operation
- 65W PoE Budget
4 PoE+ Ports (65 W Budget) for Network Deployment
All five ports of the MS105GP are gigabit ports, with four PoE+ ports (1-4). Each PoE+ port supports a maximum of 30 W and is compliant with the 802.3af/at Powered Devices. The total 65 W PoE power budget* for the 4× PoE+ ports enables a variety of uses, including surveillance for offices, dormitories, and small businesses. IP cameras, access points, IP phones, PCs, video recorders, and more are all completely compatible with it.
Power over Ethernet: Two Cables in One
No Fuss
No need for electricians; simplify installation and deployment.
Cost-Efficiency
Getting rid of extra cables and power adapters will save money on infrastructure.
Flexibility
Deployment in complex situations is made possible by more placement possibilities.
Power Management
Improves power usage while intelligently protecting your gadgets from power surges.
IEEE 802.3af/at
PoE ports compliant with the 802.3af/at Powered Devices.
Long-Range up to 250 m with Extend Mode**
Extend Mode** increases PoE transmission distance to 250 m. MS105GP has four long-range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.
Traffic Separation
With only one click, isolation mode divides traffic for ports 1-4 to prevent snooping/tampering and isolate broadcast storms for greater protection.
Port Prioritization
Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video, in crucial business domains.
Plug and Play
MS105GP offers auto-negotiation (10/100/1000 M) and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort.
Durable and Silent
MS105GP's durable metal case allows for efficient heat dissipation, excellent signal interference prevention, equipment stability, and long network life.
- Durable Metal Casing
- Silent Operation
- Wall Mount
Hardware
Dimensions
99.8*98*25mm
PoE Ports
RJ45
Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 4
PoE Power Budget: 65 W
Interfaces
5× 10/100/1000Mbps Ports, Auto-Negotiation, Auto MDI/MDIX
External Power Supply
External Power Adapter (Output: 53.5V/1.31A)
Installation
Desktop
Wall Mount
Standards and Protocols
IEEE 802.3x Flow Control
Data Rates
10/100/1000 Mbps at Half Duplex
20/200/2000 Mbps at Full Duplex
Jumbo Frame
9 KB
Mac Address Table
2K
Max Power Consumption
3.13W(220 V / 50 Hz, no PD connected)
75.15W(220 V / 50 Hz, with 65W PD connected)
Max Heat Dissipation
10.64 BTH/h (no PD connected)
255.51 BTH/h(with 65W PD connected)
Others
Package Contents
- 5-Port Gigabit Desktop Switch with 4-Port PoE+(MS105GP)
- Power Adapter
- Quick Installation Guide
Environment
Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~95% RH non-condensing
