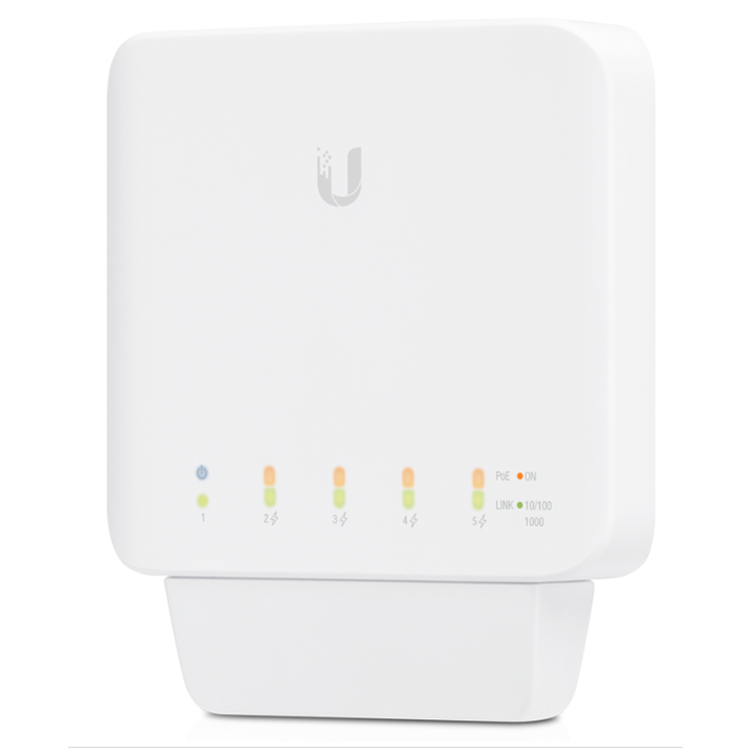

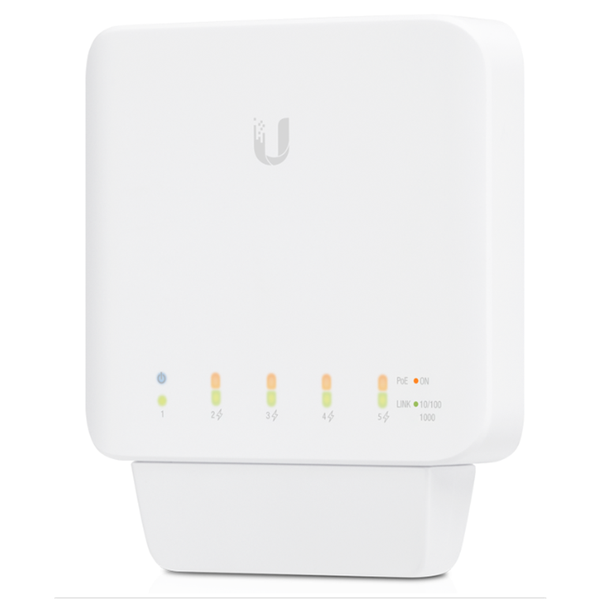

Ubiquiti Unifi USW-Flex-3 Indoor/Outdoor 5-Port Layer 2 Gigabit
5-Port Layer 2 Gigabit Switch with PoE Support
The UniFi® Switch Flex is a managed, Layer 2 Gigabit switch with auto-sensing 802.3af PoE support.
PoE Flexibility
The USW-Flex supports a maximum PoE output budget of 46W when powered by 60W 802.3bt PoE++. Four ports offer auto-sensing 802.3af PoE output to power multiple devices on the network.
Versatile Mounting
The USW-Flex can be installed horizontally or vertically making it ideal for desktop, magnetic wall-mount, and pole-mount installations.
Indoor/Outdoor Design
The USW-Flex is designed for indoor or outdoor use. With its weatherproof housing and versatile mounting options, the USW-Flex provides both flexibility and durability for environments with extreme temperature variations.
Compatible Products
The USW-Flex powers a variety of products, including the UniFi Video Camera G3 Flex, UniFi Video Camera G4 Pro, and UniFi AC Mesh AP, which use 802.3af PoE. To enable its maximum power budget of 46W, the USW-Flex can be powered by the USW-Industrial, US-XG-6POE, USW-Pro-24-PoE or USW-Pro-48-PoE switches, which provide 60W of 802.3bt PoE++.
Seamless Integration
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
USW-FLEX
Weight
230 g
(8.11 oz)
Networking Interfaces
(5) 10/100/1000 Mbps RJ45 Ports
Management Interface
Ethernet In-Band
PoE Out (Ports 2-5)
802.3af (Pins 1, 2+; 3, 6-)
Max Power Consumption (Excluding PoE Output)
5W
Max PoE Wattage Per Port
15.4W
Total PoE Power Budget
Powered by 802.3af: 8W
Powered by 802.3at: 20W
Powered by 802.3bt: 46W
Powered by PoE Adapter (Enabled in Controller): 46W
Voltage Range
802.3af: 44 - 57V
802.3at/bt: 50 - 57V
LEDs
System: Status
RJ45 Data Ports: PoE; Link/Speed/Activity
ESD/EMP Protection
± 16kV Air, ± 16kV Contact
Operating Temperature
46W PoE Output: -40 to 55° C (-40 to 131° F)
25W PoE Output: -40 to 65° C (-40 to 149° F)
Operating Humidity
5 to 95% Noncondensing
Certifications
CE, FCC, IC
POWER METHOD (PORT 1)
PoE Type
Recommended PoE Source
802.3af/at (Pins 1, 2+; 3, 6-)
USW-24-PoE (sold separately)
802.3bt (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)
USW-Pro-24-PoE (sold separately)
50V/60W PoE Adapter*
PoE Injector, POE-50-60W-WH or POE-50-60W (sold separately)
* To enable PoE output power, select Power Source > PoE Injector in UniFi Controller.
USW-FLEX-UTILITY 60W POE ADAPTER
Dimensions
118.5 x 63 x 34.7 mm
(4.66 x 2.48 x 1.36")
Weight
206 g
(7.27 oz)
Output Voltage
54V, 1.11A
Rated Voltage
100-240VAC
Input Current
1.5A (Max.)
Efficiency
> 86%
Output Ripple
200mVpp
Line Regulation
< 1%
Load Regulation
< 3%
4-Pair Powering
Pins 1, 2, 4, 5+ and Pins 3, 6, 7, 8-
Operating Temperature
-20 to 60 ° C (-4 to 140 ° F)
Storage Temperature
-30 to 70 ° C (-22 to 158 ° F)
Operating Humidity
5 to 90%, Noncondensing
Surge Immunity
4kV Difference and Common Mode
