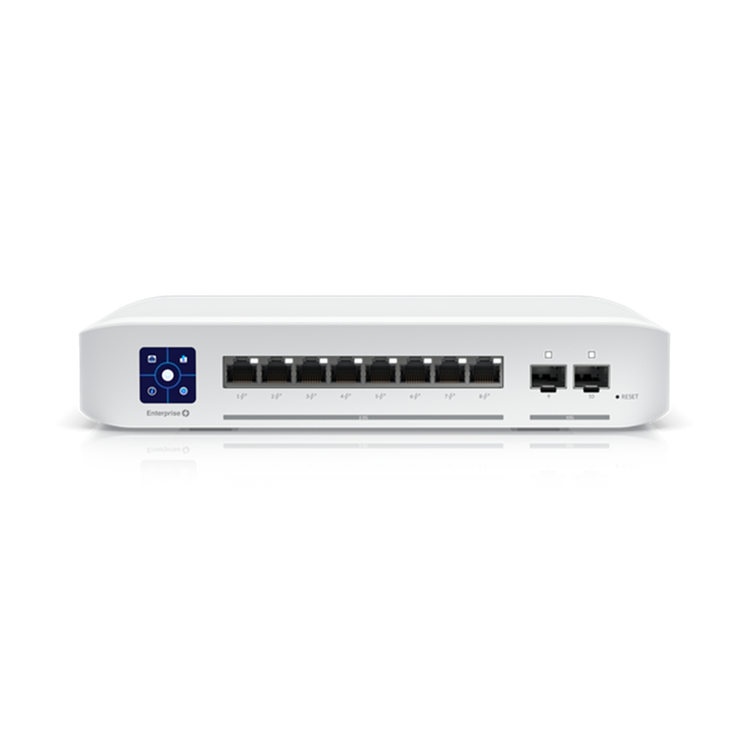

Ubiquiti UniFi Switch Gen2 USW-Enterprise-8-PoE 8-Port Multi-Gigabit Layer 3 Managed PoE Switch
Layer 3, PoE switch with (8) 2.5GbE, 802.3at PoE+ RJ45 ports and (2) 10G SFP+ ports.
The Switch Enterprise 8 PoE (USW Enterprise 8 PoE) is a fully managed, Layer 3* switch with (8) 2.5GbE, 802.3at PoE+ RJ45 ports and (2) 10G SFP+ ports.The USW Enterprise 8 PoE also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights. This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.
- (1) 1.3" LCM color touchscreen with AR switch management
- (8) 2.5GbE, 802.3at PoE+ RJ45 ports
- (2) 10G SFP+ ports
- 120W total PoE supply
- Wall-mountable (kit included)
* Layer 3 switching will become available in a future firmware update.
Managed with the UniFi Network application: Version 6.3.51 and later
Works with the UniFi Network Application
- Centrally manage multiple networks from an intuitive interface
- Enjoy real-time device insights and deep configuration options
- Upgrade device firmware remotely
- Manage network users and guests with ease
- Personalize the design, architecture, and privacy of guest hotspots
- Set up devices quickly and manage them on the go with a powerful mobile app
Mechanical
Dimensions
200 x 248 x 44 mm (7.9 x 9.8 x 1.7")
Weight
2.4 kg (5.29 lb)
Enclosure Materials
Polycarbonate
Mount Material
Polycarbonate
Hardware
Total Non-Blocking Throughput
40 Gbps
Switching Capacity
80 Gbps
Forwarding Rate
59.52 Mpps
Max PoE Power
120W
Power Method
(1) 100-240VAC, 2A Max., 50/60 Hz, Universal Input
Power Supply
AC/DC, Internal, 150W
Management Interface
Ethernet In-Band
Networking Interfaces
(8) 1/2.5 Gbps RJ45 Ethernet
SFP+ Interfaces
(2) 1/10 Gbps SFP+
PoE Interfaces
(8) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
Max. PoE+ Wattage per Port by PSE
32W
Voltage Range 802.3af Mode
44 to 57V
Voltage Range 802.3at Mode
50 to 57V
Services
SMB Layer 3* PoE Gigabit Ethernet Switch
* Layer 3 feature will be available in the future firmware release.
LCM Display
(1) 1.3" Touchscreen
Bootup Animation: Bootup in Progress
Firmware Upgrade Icon: Firmware Upgrading
Steady White: Factory Defaults, Awaiting Adoption
Steady Blue: Device is Adopted
ESD/EMP Protection
Air: ± 16 kV, Contact: ± 12 kV
Operating Temperature
-5 to 45° C (23 to 113° F)
Operating Humidity
10 - 90% Noncondensing
Certifications
CE, FCC, IC
LEDs
Ethernet
White: Link or Activity
SFP+
White: Link or Activity
