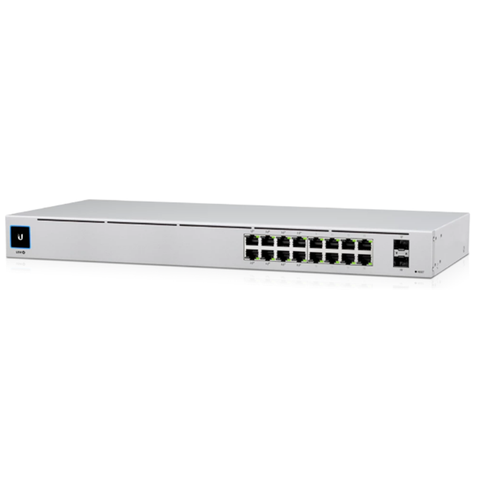

Ubiquiti UniFi Switch Gen2 USW-16-POE 16-Port Gigabit Managed PoE+ Switch
Switch 16 PoE
UniFi Switch 16 is a fully managed Layer 2 switch with (16) Gigabit Ethernet ports and (2) Gigabit SFP ports.
The USW-16-POE is a configurable Gigabit Layer 2 switch with sixteen Gigabit Ethernet ports including eight auto-sensing 802.3at PoE+ ports, and two SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-16-POE features a 1.3" touch LCM to provide status information. With a depth of 7.9", the compact fanless design can be easily installed in a SOHO rack cabinet.
Managed and configured by the UniFi Network application with UniFi mobile app support, the USW-16-POE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network application and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
- (16) Gigabit Ethernet Ports including (8) 802.3at PoE+ Ports
- (2) 1G SFP Ports
- 1.3" touch LCM
- Managed with UniFi application
- Managed with UniFi Network Application Version: 5.11.27 or higher
Works with UniFi Network Application
- Manage your networks from a single interface.
- Enjoy intuitive configuration options, as well as robust device control and monitoring.
- Upgrade device firmware remotely.
- Easily manage network users and guests.
- Personalize the design, architecture, and privacy of guest hotspots.
Interfaces
Networking
(16) 10/100/1000 RJ45 Ports
(2) 1G SFP Ethernet Ports
Management
Ethernet In-Band
LEDs
RJ45 Data Ports
PoE; Speed/Link/Activity
SFP Data Ports
Link/Activity
Mechanical
Dimensions
424.4 x 200 x 43.7 mm (16.71 x 7.87 x 1.72")
Weight
2.80 kg (6.17 lb)
With Rackmount Brackets
2.89 kg (6.37 lb)
Total Non-Blocking Throughput
18 Gbps
Switching Capacity
36 Gbps
Forwarding Rate
26.78 Mpps
Power Method
100-240VAC/50-60 Hz, Universal Input
Power Supply
AC/DC, Internal, 60W
Supported Voltage Range
100 to 240VAC
Max. Power Consumption (Excluding PoE Output)
18W
ESD/EMP Protection
Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration
ETSI300-019-1.4 Standard
Operating Temperature
-5 to 40° C (23 to 104° F)
Operating Humidity
10 to 90% Noncondensing
Certifications
CE, FCC, IC
PoE
Total Available PoE
42W
PoE Interfaces
Ports 1-8
POE+ IEEE 802.3af/at (pins 1, 2+; 3, 6-)
Max. PoE Wattage per Port by PSE
802.3at, 32W
Voltage Range 802.3af Mode
44-57V
Voltage Range 802.3at Mode
50-57V
