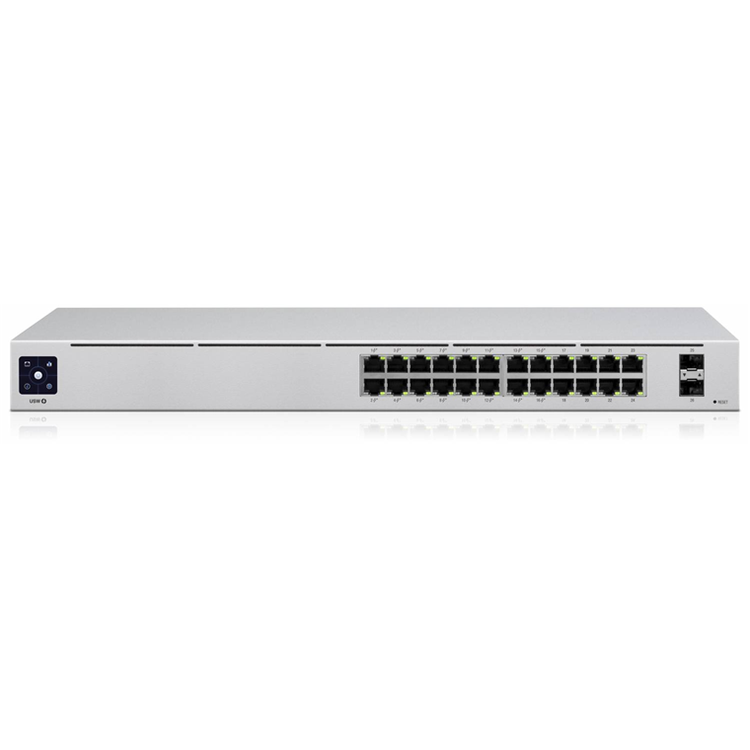

Ubiquiti UniFi Switch Gen2 USW-24 - 24-Port Gigabit, Managed, 2x Gigabit Network Switch
UniFi Switch 24
The USW-24 is a configurable Layer 2 switch with 24 Gigabit Ethernet ports and 2 SFP ports. The SFP ports provide 1 Gbps fiber uplink options to your enterprise network. The USW-24 features a 1.3" touchscreen, compact size, and fanless design. The touchscreen displays the current switch state and information for quick diagnosis. Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-24 switch offers an extensive suite of advanced Layer 2 switching protocols and features, including operating mode (switching, mirroring, or aggregate) per port.
- (24) Gigabit Ethernet Ports
- (2) Gigabit SFP Ports
- 1.3" color touchscreen for status information
- Managed by UniFi Network Controller
- 1U rackmountable (kit included)
- Managed by UniFi Network Controller version: 5.12.32 or higher
Scalable UniFi Network Controller
Management Capabilities
The UniFi Network Controller can provision UniFi devices, map out networks, and quickly manage system traffic. Important network details are logically organized for a simplified, yet powerful, interface.
Network Overview
From a single pane of glass, view network topology and configuration, real-time statistics, and debugging metrics. Monitor your network's vitals and make on-the-fly adjustments as needed.
Deep Packet Inspection
Ubiquiti's proprietary Deep Packet Inspection (DPI) engine includes the latest application identification signatures to track which applications (and IP addresses) are using the most bandwidth.
Detailed Analytics
The UniFi Network Controller provides configurable reporting and analytics to manage large user populations and expedite troubleshooting. Advanced search and sorting capabilities make network management more efficient.
Multi-Site Management
A single controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and administrator accounts.
Dimensions
442.4 x 200 x 43.7 mm
(17.42 x 7.87 x 1.72")
Weight
2.70 kg (5.95 lb)
Weight with Rackmount Brackets
2.79 kg (6.15 lb)
Interfaces
0
Networking Interfaces
(24) 10/100/1000 RJ45 Ports
(2) 1G SFP Ethernet Ports
Management Interfaces
Ethernet In-Band
Power Method
100-240VAC, 50/60 Hz, Universal Input
Power Supply
AC/DC, Internal, 36W
Supported Voltage Range
100 to 240VAC
Max. Power Consumption
25W
RJ45 Data Ports LEDs
Speed/Link/Activity
SFP Data Ports LEDs
Link/Activity
ESD/EMP Protection
Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration
ETSI300-019-1.4 Standard
Operating Temperature
-5 to 45° C (23 to 113° F)
Operating Humidity
10 to 90% Noncondensing
Certifications
CE, FCC, IC
