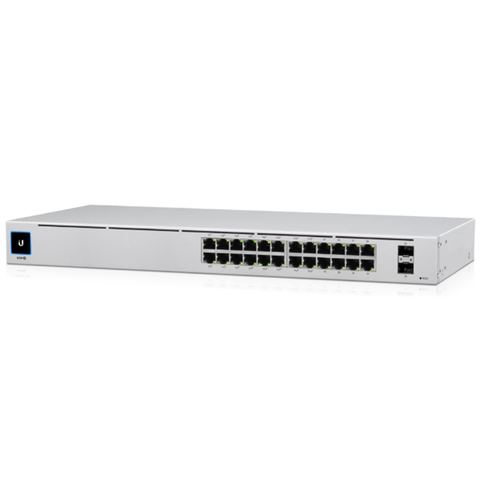

Ubiquiti UniFi Switch Gen2 USW-24-POE 24-Port Gigabit Managed PoE+ Switch
The USW-24-POE is a configurable Gigabit Layer 2 switch with twenty-four Gigabit Ethernet ports including sixteen auto-sensing 802.3at PoE+ ports, and two SFP ports. It provides Gigabit PoE links to your RJ45 Ethernet devices and Gigabit fiber uplink options to your enterprise network. The USW-24-POE features a 1.3" touch LCM to provide status information. With a depth of 7.9", the compact fanless design can be easily installed in a SOHO rack cabinet.
Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-24-POE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.
Manufacturer's Code
USW-24-POE-AU
Dimensions
442.4 x 200 x 43.7 mm (17.42 x 7.87 x 1.72")
Weight
3.00 kg (6.61 lb), With Brackets 3.09 kg (6.81 lb)
Interfaces Networking
(24) 10/100/1000 RJ45 Ports, (2) 1G SFP Ethernet Ports
Management
Ethernet In-Band
Total Non-Blocking Throughput
26 Gbps
Switching Capacity
52 Gbps
Forwarding Rate
38.69 Mpps
Power Method
100-240VAC, 50/60 Hz, Universal Input
Power Supply
AC/DC, Internal, 120W
Voltage Range
100 to 240VAC
Max Power Consumption (Excluding PoE Output)
25W
LEDs
System Status, RJ45 Data Ports PoE; Speed/Link/Activity, SFP Data Ports Link/Activity
ESD/EMP Protection
Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration
ETSI300-019-1.4 Standard
Operating Temperature
-5 to 40° C (23 to 104° F)
Operating Humidity
10 - 90% Noncondensing
Certifications
CE, FCC, IC
Total Available
PoE 95W
PoE Interfaces Ports
1-16 POE+ IEEE 802.3af/at (pins 1, 2+; 3, 6-)
Max. PoE Wattage per Port by PSE
802.3at 32W
Voltage Range
802.3af Mode 44-57V, 802.3at Mode 50-57V
