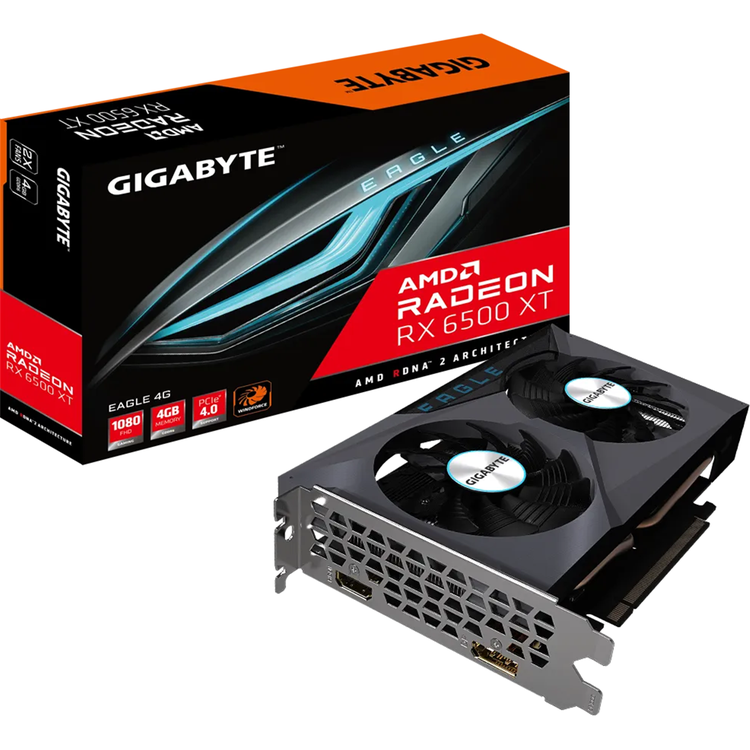

Gigabyte AMD Radeon RX 6500 XT Eagle 4GB GDDR6 Graphics Card
Radeon™ RX 6500 XT EAGLE 4G
- Powered by AMD RDNA™ 2 Radeon™ RX 6500 XT
- Integrated with 4GB GDDR6 64-bit memory interface
- WINDFORCE 2X Cooling System with alternate spinning fans
- Graphene nano lubricant
Intense 1080p Performance
AMD Radeon™ RX 6500 XT graphics cards deliver serious 1080p gaming and impressive frame rates. The power of AMD RDNA™ 2 architecture is unleashed with up to 16 powerful graphics compute units, coupled with all ultra-high bandwidth AMD Infinity Cache™, and up to 4GB of dedicated GDDR6 memory.
Vivid Visuals
With immersive gaming technologies and support for DirectX® 12 Ultimate, AMD Radeon™ RX 6500 XT graphics cards draw you into the action. Experience gaming with realistic lighting, shadows, and reflections along with rich detail, thanks to DirectX® Raytracing (DXR), variable rate shading (VRS), and AMD FidelityFX™ technology features, optimized for AMD RDNA™ 2 architecture.
Get A Boost In Frames For Your Games
AMD FidelityFX™ Super Resolution (FSR) technology boosts your frame rates by 2.4X on average across select FidelityFX Super Resolution supported games2 with high-quality, high-resolution gaming experiences delivered by AMD Radeon™ RX 6000 Series graphics cards. Optimize your gaming experience between four presets, ranging from best visual fidelity to maximum performance.
The Best Gaming Experience For The Best Gaming Os
AMD Radeon™ graphics with Windows 11 enables the ultimate gaming experience through superior graphics, amazing performance, optimized security features. With support for DirectX® 12 Ultimate, Auto HDR, AMD Radeon graphics, and Radeon™ software all stand ready to supercharge your gaming experience with Windows 11.
WINDFORCE 2X COOLING SYSTEM
The WINDFORCE 2X cooling system features two unique blade fans, alternate spinning, composite copper heat pipes, copper plate and 3D active fan, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Alternate Spinning can reduce the turbulence of adjacent fans and increase air pressure.
SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
HEAT PIPES AND COPPER PLATE
The shape of the pure copper heat pipe contacts with the GPU through a copper plate.
ULTRA COOLING
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
LOW POWER LOSS
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
LONGER LIFE
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
AORUS ENGINE
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.
AMD FreeSync™ Technology
No stuttering. No tearing. Just gaming. AMD FreeSync™ technology puts an end to choppy gameplay and broken frames with fluid, artifact-free performance at virtually any framerate.
Radeon™ Software
- Minimize input-lag so you can game like a champion.
- Delivers extra performance and responsiveness when you need it most.
- Improves in-game visuals with virtually no impact on performance.
Graphics Processing
Radeon™ RX 6500 XT
Core Clock
TBD
Stream Processors
1024
Process Technology
6 nm
Memory Clock
18000 MHz
Memory Size
4 GB
Memory Type
GDDR6
Memory Bus
64 bit
Memory Bandwidth (GB/sec)
144 GB/s
Card Bus
PCI-E 4.0
Digital max resolution
7680x4320
Multi-view
2
Card size
L=192 W=117 H=38 mm
PCB Form
ATX
DirectX
12 Ultimate
OpenGL
4.6
Recommended PSU
400W
Power Connectors
6 pin*1
Output
DisplayPort 1.4a *1
HDMI 2.1 *1
Accessories
Quick guide
