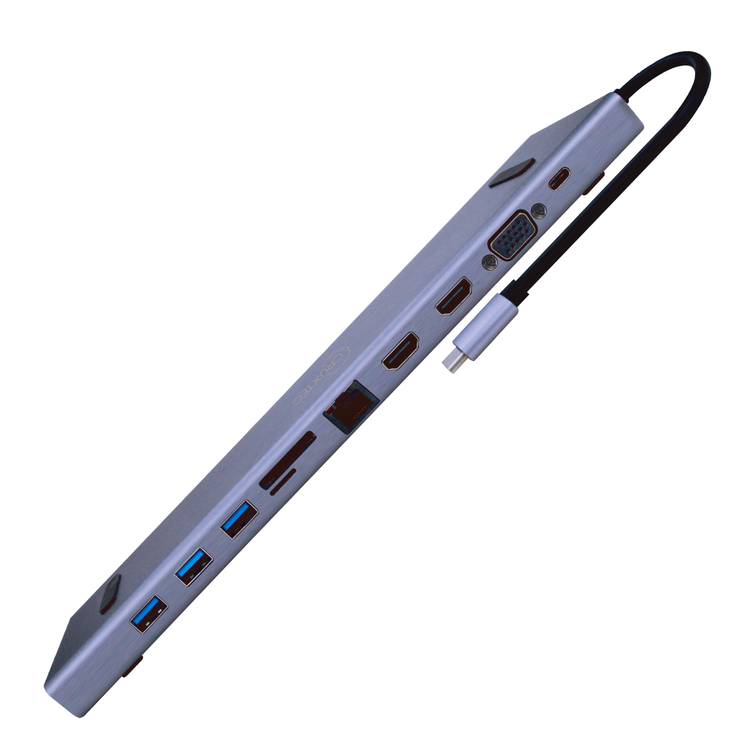

Cruxtec CH02-SG - Support 2 Full HD Display USB-C 100W 11-in-1 Ultra Slim Docking Station
Cruxtec 11 in 1 USB-C Multifunction Docking Station with 100W PD
- HDMI port supports up to 4K/30Hz, VGA port supports up to 1080p/60Hz
- Supports Mirror or Extended mode (MST) on Windows
- USB-C PD port for charging the laptop with up to 100W of power
- Up to 5Gbps data transfer rate on 3 x USB-A ports
- Stylish aluminum alloy housing
- Built-in flexible 15cm Cable
- Plug-and-play
11-in-1 All-in-one Solution
Cruxtec 11 in 1 USB-C Multifunction Docking Station gives you all-in-one solution to connect to monitors, ethernet,SD/TF cards, and more through its USB ports.
USB-C to 3 x USB3.0 / 2 x HDMI / VGA / RJ45 Gigabit Ethernet / SD&TF Card Reader / 3.5mm Audio output / PD
3 x USB3.0 Ports
Supports data transfer speeds up to 5Gbps
RJ45 Gigabit Ethernet Port
Compatible Networks 10/100/1000 Mbps
SD&TF Card Reader
Compatibility
Support SD specification v1.0 / v1.1 / v2.0/ SDHC (Up to 32GB)
Support SDXC (Up to 2TB)
Support MMC specification v3.x / v4.0 / v4.1 / v4.2
1 x USB-C PD Charging port
USB-C Power Delivery charging up to 100W (charging only, no data)
Suitable for office, home, or personal use
Connect to your devices via VGA or HDMI port
Supports video resolutions up to 4K/30Hz
Maximum resolution supported up to 3840x2160P/30Hz or 4096x2160/24Hz when you connect HDMI port only
Maximum resolution supported up to 1080P/60Hz when you connect VGA port only
Simple and Elegant Packaging
Imaginative design and new materials are the key to more sustainable
Multi Screen Extended Display
When two HDMI interfaces are connected at the same time, the maximum resolution supported by the two screens is 1080P/60Hz
When one HDMI + one VGA interface are connected at the same time, the maximum resolution supported by two screens is 1080P/60Hz
When two HDMI + one VGA interface are connected at the same time, the two HDMI screens support a maximum resolution of 1080P/60Hz, VGA screen supports a maximum resolution of 800*600
Part No.
CRUXTEC CH02-SG
Input
USB-C Male ( USB3.1 GEN2 10GBPS )
Output
2 * HDMI Female / 1* VGA Female / 3 * USB-A ( USB3.1 GEN1 5GBPS ) / 1* RJ45 Gigabit Ethernet (10/100/1000Mbps) / 1 * SD/micro SD Card Reader / 1 * 3.5mm audio output Jack
Power Transmission
1 * USB-C PD3.0 Charging port - up to 100W
Resolution
HDMI output up to 4K/30Hz, VGA output up to 1080p/60Hz
MST Configuration
Dual Display (HDMI+HDMI) 1080P/60Hz, Dual Display (HDMI+VGA) 1080P/60Hz, Triple Display(HDMI*2+VGA) 1080P/60Hz*2+800*600
Material
Aluminium+ABS
Cable Length
15cm
Cable Diameter
4.7mm
Chipsets
RTS5411+LT8712EXI+GL850G+GL823K+RTL8153
Platforms
Windows / Mac OS
Shield Type
Aluminium foil shield
Colour
Space grey
