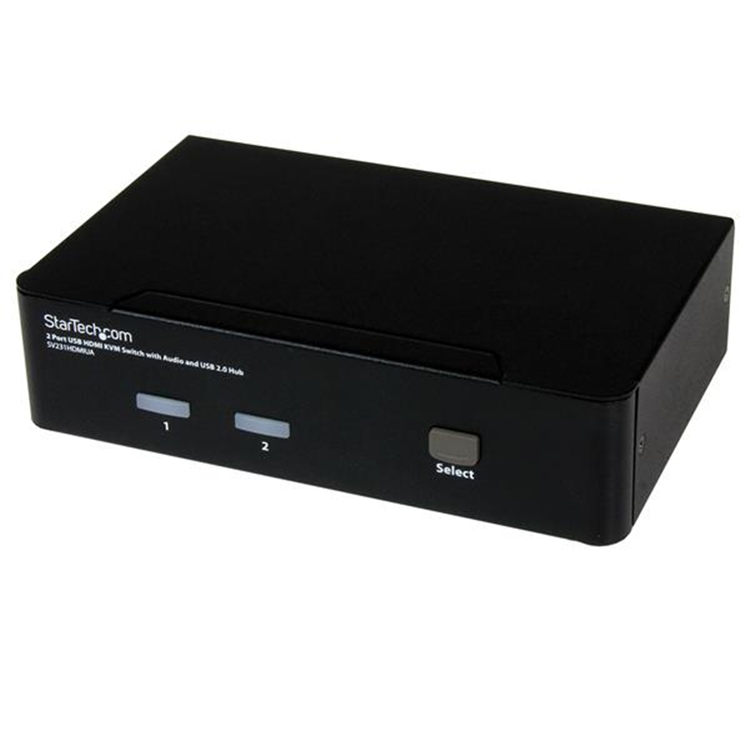

StarTech.com SV231HDMIUA 2 Port USB HDMI KVM Switch w/ Audio
The SV231HDMIUA 2-port USB HDMI® KVM Switch lets you control two USB-enabled multimedia computers or devices with HDMI video interfaces, using a single peripheral set/console (USB keyboard, mouse, monitor, speakers and microphone).
A highly versatile KVM solution, the USB HDMI KVM Switch features an integrated 2-port USB 2.0 hub that lets selected computers access shared high speed USB devices, eliminating the cost of duplicate USB peripheral purchases.
Ensuring high quality video capability, the HDMI KVM switch supports HD resolutions of up to 1920 x 1200. Offering genuine digital signal transmission over the cable, this switch can be used to share one HD panel between multiple HDMI sources such as Blu-Ray players, Video Game consoles and HD media centers.
The switch also supports audio and microphone switching functions and allows you to select connected computers, USB device hub ports and audio/mic channels either simultaneously or independently using either front-panel push-buttons or keyboard hotkeys.
Audio
Yes
Cables Included
No
Daisy-Chain
No
KVM Ports
2
Number of Monitors Supported
1
PC Interface
USB
PC Video Type
HDMI
Rack-Mountable
No
Hot-Key Selection
Yes
IP Control
No
Maximum Digital Resolutions
1920 x 1200
Maximum Number of Users
1
On-Screen Display
No
Port Selection Support
Push Button and Hotkeys
Wide Screen Supported
Yes
Console Interface(s)
1 - HDMI (19 pin) Female
2 - 3.5 mm Mini-Jack (3 Position) Female
4 - USB Type-A (4 pin) USB 2.0 Female
Host Connectors
2 - HDMI (19 pin) Female
2 - USB B (4 pin) Female
4 - 3.5 mm Mini-Jack (3 Position) Female
OS Compatibility
OS independent; No software or drivers required
LED Indicators
2 - Online/Active (Green - Connected PC is online, Red - PC is selected)
Center Tip Polarity
Positive
Input Current
0.8A
Input Voltage
110V-240V AC
Output Current
1.5A
Output Voltage
12 DC
Plug Type
M
Power Consumption (In Watts)
18
Power Source AC
Adapter Included
Humidity
0~80% RH
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-20°C to 60°C (-4°F to 140°F)
Color
Black
Enclosure Type
Steel
Product Depth
2.8 in [70 mm]
Product Height
1.6 in [40 mm]
Product Weight
28.2 oz [800 g]
Product Width
4.9 in [124.8 mm]
Included in Package
1 - 2 Port HDMI KVM
1 - Package of Rubber feet
1 - Power Adapter
1 - User Manual
