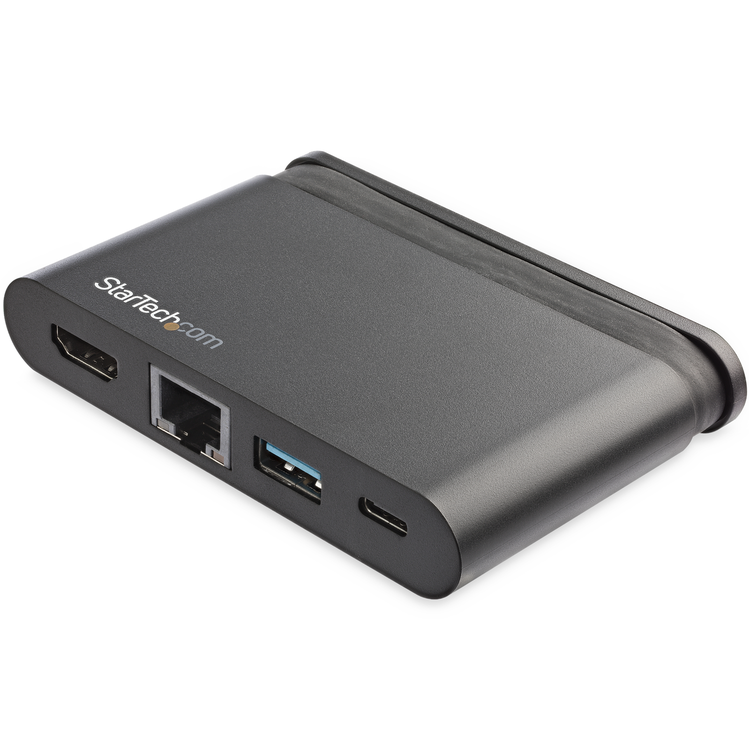

StarTech.com DKT30CHCPD USB-C Multiport Adapter - Portable USB-C
Here’s an all-in-one USB-C adapter for your MacBook Pro, Dell XPS or other USB-C™ laptop, with all the ports you need for maximum productivity. The USB-C multiport adapter with HDMI turns your laptop into a portable workstation, adding 4K video, Gigabit Ethernet, and two USB 3.0 ports, plus laptop charging with Power Delivery 3.0.
Connect a UHD 4K HDMI Monitor?
Use the USB-C adapter as a?portable docking station, connecting your laptop to?a?4K?HDMI monitor?(4096 x 2160p)?to create a workstation or make presentations.?It also connects to?an ultrawide monitor.?
Connect?Your?Devices?
The?USB-C adapter?gives you one?USB-C port to connect a USB-C device, and one USB-A?port to attach a mouse, keyboard or other peripheral. Fast-charge your mobile device using the USB-A port.
Laptop Charging with PD 3.0
With support for?100W?Power Delivery?3.0,?the?USB?Type-C multiport adapter?provides up to 92W laptop charging, and powers your peripherals?when connected to a USB-C power adapter.?PD?3.0 features Fast Role Swap to prevent USB data disruption when?you?unplug?to?switch?power sources (USB-C?power adapter to?bus power).?
Wrap-Around Cable
The USB Type-C™ multiport adapter has a built-in wrap-around cable for easy connection and portability.
Reliable?Network?Connectivity?
The Gigabit Ethernet port ensures reliable wired network access.?
Note: To ensure full adapter functionality, your laptop’s USB-C port must support USB Power Delivery and DP Alt Mode.?
Applications
- Connect to a 4K HDMI monitor, ideal?for meetings and?delivering?presentations
- Use an HDMI port-equipped television as an external display in a hotel room when traveling
- Power the adapter and your laptop through USB-C, using your laptop’s power adapter
- Ideal for small workspaces in offices, home offices as well as office?hoteling
HARDWARE
4K Support
Yes
Bus Type
USB-C
Chipset ID
VIA/VLI - VL102
VIA/VLI - VL817
Parade Technologies - PS176
RealTek - RTL8153
Displays Supported
1
Fast-Charge Port(s)
Yes
Industry Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 - Backward compatible with USB 2.0 and 1.1
PERFORMANCE
Auto MDIX
Yes
Full Duplex Support
Yes
Maximum Data Transfer Rate
5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions
4096 x 2160p @ 24Hz or 3840 x 2160p (HDMI) @ 30Hz
UltraWide - 3440 x 1440p @ 60 Hz or 2560x1080 at 60Hz
Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.
Type and Rate
USB 3.0 - 5 Gbit/s
UASP Support
Yes
CONNECTOR(S)
Connector Type(s)
1 - USB Type-C (24 pin) USB 3.0 (5Gbps) Male
1 - HDMI (19 pin) Female
1 - RJ-45 Female
1 - USB 3.0 A (Fast-Charge, 9 pin, SuperSpeed) Female
1 - USB Type-C (24 pin) USB 3.0 (5Gbps) Female
SOFTWARE
OS Compatibility
Windows® 7, 8, 8.1, 10
Mac OS® 10.9 to 10.14
Chrome OS™
SPECIAL NOTES / REQUIREMENTS
Note
Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 or 3.0 and DP alt mode.
The adapter can connect to a host laptop's USB-C port that doesn't support USB Power Delivery 2.0 or 3.0. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop.
A 4K-capable display is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K)
USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.
Your laptop may have specific requirements for charging. This USB-C multiport adapter supports USB Power Delivery 3.0, up to 100W. When using your laptop's USB-C power adapter, the multiport adapter powers both the adapter (with attached peripherals) and your laptop - with up to 92W charging available for laptop charging. For more information on your laptop's charging requirements, refer to the manufacturer of your laptop.
Through support of USB Power Delivery?3.0, the multiport adapter supports Fast Role Swap which prevents USB data disruption when?you?unplug?to?switch?power sources (USB-C?power adapter to?bus power).
System and Cable Requirements
A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 2.0 or PD 3.0 and DP alt mode)
Optional: USB-C power adapter (for example, your laptop's USB-C based power adapter)
POWER
Power Delivery
100W
Power Source
USB-Powered
ENVIRONMENTAL
Humidity
10~90% RH (Non-condensing)
Operating Temperature
0°C to 45°C (32°F to 113°F)
Storage Temperature
-10°C to 70°C (14°F to 158°F)
PHYSICAL CHARACTERISTICS
Color
Black
Enclosure Type
Plastic
Product Height
0.6 in [14 mm]
Product Length
3.5 in [90 mm]
Product Weight
2 oz [58 g]
Product Width
2.4 in [60 mm]
